Tokyo Electron 381-600316-3驅動板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
TEL Tokyo Electron 381-600316-3 驅動板 是東京電子（TEL）半導體制造設備中的關鍵執行控制模塊，主要負責驅動和控制設備中的電機、閥門等執行機構，實現精準動作和工藝流程的自動化控制。
一、產品概述
| 項目 | 內容 |
|---|---|
| 產品名稱 | 驅動板（Driver Board） |
| 產品型號 | 381-600316-3 |
| 制造商 | Tokyo Electron Ltd.（東京電子） |
| 功能定位 | 電機及執行機構驅動與控制 |
二、核心功能
執行機構驅動
控制步進電機、伺服電機或直流電機的啟動、停止、速度及位置；
驅動電磁閥、繼電器等開關類執行元件。
信號轉換與放大
將控制系統輸出的低電平信號放大為執行元件所需的驅動電流和電壓；
提供電氣隔離，保護控制系統免受電流沖擊。
反饋監測
支持傳感器信號反饋，監測驅動狀態和故障，保障動作準確可靠。
三、典型應用場景
半導體設備中各類機械部件的驅動控制，如晶圓搬運機械臂、電機驅動軸、氣動閥門控制等。
自動化工藝流程中，執行精準動作控制的關鍵部件。
英文資料：
The TEL Tokyo Electron 381-600316-3 driver board is a key execution control module in the semiconductor manufacturing equipment of Tokyo Electronics (TEL). It is mainly responsible for driving and controlling the actuators such as motors and valves in the equipment, achieving precise action and automated control of the process flow.
1、 Product Overview
Project Content
Product Name: Driver Board
Product model 381-600316-3
Manufacturer Tokyo Electron Ltd
Functional positioning motor and actuator drive and control
2、 Core functions
Execution mechanism driver
Control the start, stop, speed, and position of stepper motors, servo motors, or DC motors;
Drive switch actuators such as solenoid valves and relays.
Signal conversion and amplification
Amplify the low-level signal output by the control system into the driving current and voltage required by the actuator;
Provide electrical isolation to protect the control system from current surges.
Feedback monitoring
Support sensor signal feedback, monitor drive status and faults, and ensure accurate and reliable actions.
3、 Typical application scenarios
Drive control of various mechanical components in semiconductor equipment, such as wafer handling robotic arms, motor drive shafts, pneumatic valve control, etc.
The key component that executes precise action control in automated process flow.

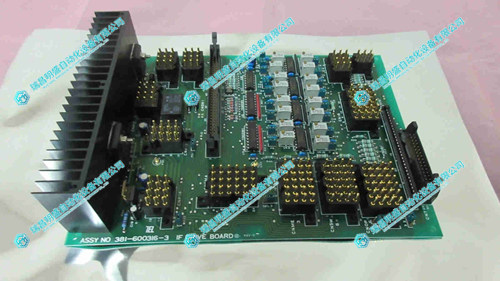

2.產 品 展 示
