GE IS200WEMAH1AEA端子電路板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE IS200WEMAH1AEA 端子電路板是 GE (通用電氣) Mark VI 和 Mark VIe 控制系統的一部分，設計用于實現信號的終端連接和分配功能。這塊電路板常用于工業自動化和能源控制領域，為控制系統與傳感器、執行器及其他外圍設備之間提供接口支持。
產品特點
多通道終端接口：
- 支持多通道輸入和輸出信號連接，為系統的靈活性提供保障。
- 提供精確的信號傳輸和分配功能，確保數據的可靠性。
模塊化設計：
- 結構緊湊、安裝方便，可與其他 GE 控制模塊無縫集成。
- 支持熱插拔，便于維護和更換。
高可靠性與穩定性：
- 使用工業級材料制造，能夠承受惡劣工業環境的高溫、振動和電磁干擾。
- 配備冗余設計，確保系統的持續運行。
診斷功能：
- 提供實時監控和故障檢測功能，支持系統運行狀態的快速評估。
技術規格
| 參數 | 描述 |
|---|---|
| 型號 | IS200WEMAH1AEA |
| 用途 | 信號終端連接與分配 |
| 兼容系統 | GE Mark VI、Mark VIe 控制系統 |
| 信號類型 | 模擬信號、數字信號及通信信號 |
| 工作溫度范圍 | -30°C 至 70°C |
| 電磁兼容性 | 符合工業標準，具備抗干擾能力 |
| 安裝方式 | 機架安裝或面板安裝 |
| 診斷功能 | 支持實時狀態檢測與報警 |
應用領域
能源控制：
- 應用于燃氣輪機、蒸汽輪機、水輪機等能源設備的信號連接和數據傳輸。
工業自動化：
- 在制造業自動化系統中，用于信號采集和傳輸，優化控制流程。
石油與天然氣：
- 管控油氣處理設備中的傳感器和執行器接口。
過程控制：
- 支持化工、制藥等行業復雜系統的多信號處理與分配。
英文資料：
The GE IS200WEMAH1AEA terminal circuit board is part of the GE Mark VI and Mark VIe control systems, designed to enable terminal connection and distribution of signals. This circuit board is commonly used in the fields of industrial automation and energy control, providing interface support between control systems and sensors, actuators, and other peripheral devices.
Product Features
Multi channel terminal interface:
Support multi-channel input and output signal connections to ensure system flexibility.
Provide precise signal transmission and distribution functions to ensure data reliability.
Modular design:
Compact structure, easy installation, and seamless integration with other GE control modules.
Supports hot swapping for easy maintenance and replacement.
High reliability and stability:
Made of industrial grade materials, capable of withstanding high temperatures, vibrations, and electromagnetic interference in harsh industrial environments.
Equipped with redundant design to ensure the continuous operation of the system.
Diagnostic function:
Provide real-time monitoring and fault detection functions, supporting rapid assessment of system operation status.
technical specifications
Parameter description
Model IS200WEMAH1AEA
Usage signal terminal connection and allocation
Compatible with GE Mark VI and Mark VIe control systems
Signal types: analog signal, digital signal, and communication signal
Working temperature range -30 ° C to 70 ° C
Electromagnetic compatibility meets industrial standards and has anti-interference capability
Installation method: rack installation or panel installation
Diagnostic function supports real-time status detection and alarm
application area
Energy control:
Used for signal connection and data transmission of energy equipment such as gas turbines, steam turbines, and water turbines.
Industrial automation:
In manufacturing automation systems, it is used for signal acquisition and transmission, optimizing control processes.
Oil and Natural Gas:
Control the interfaces of sensors and actuators in oil and gas processing equipment.
Process control:
Support multi signal processing and distribution for complex systems in industries such as chemical and pharmaceutical.

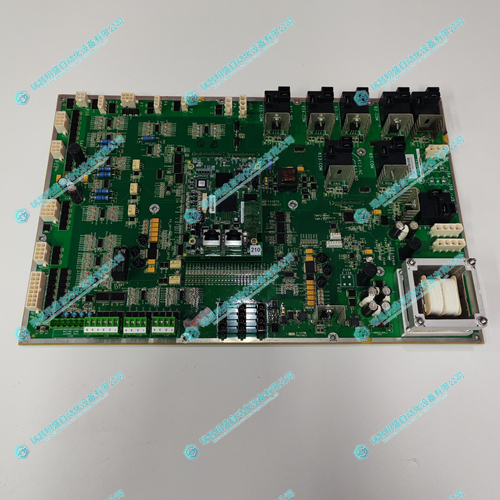

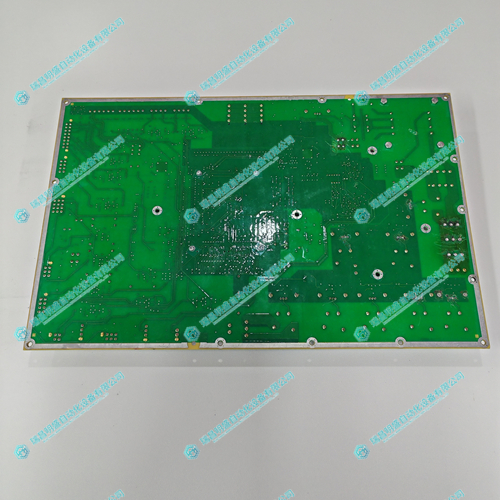

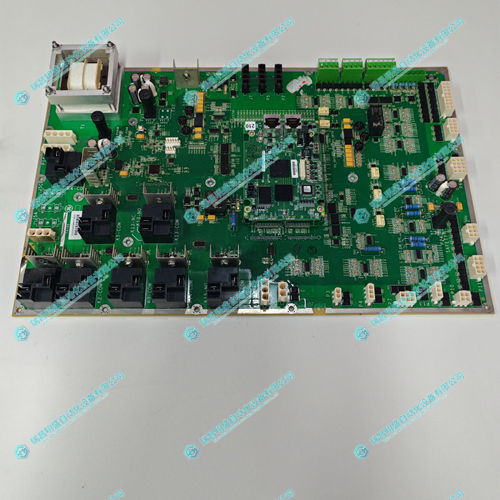

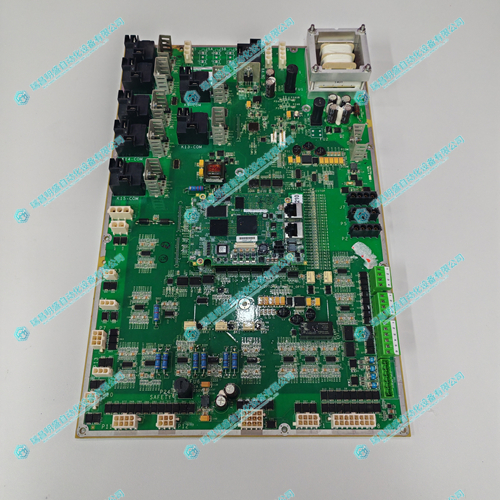

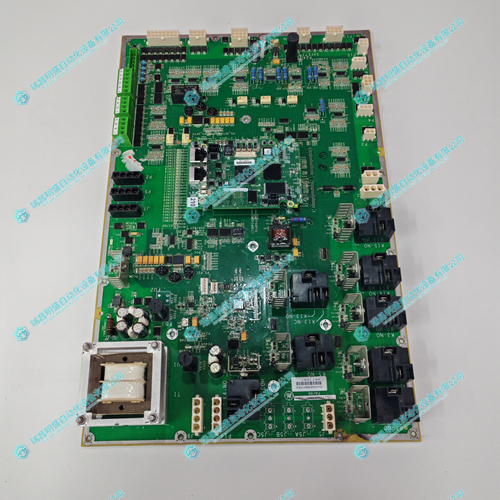

2.產 品 展 示
