NI PCI-5402數字信號處理器（DSP）板卡
1.產 品 資 料 介 紹：
中文資料：
NI PCI-5402是一款高性能的數字信號處理器（DSP）板卡，由美國國家儀器（NI）公司生產。它廣泛應用于信號處理、控制系統、嵌入式系統等領域。以下是NI PCI-5402的配置說明、參數和優點。
配置說明：
- 采樣率高：最高可達200 MHz。
- 處理能力強：采用Xilinx Virtex-II Pro FPGA和TI TMS320C6713 DSP進行處理。
- 接口豐富：板卡上具有多個數字輸入輸出通道、同步采樣觸發器、高速通信接口等。
- 軟件支持全面：支持NI的LabVIEW和LabWindows/CVI等開發環境。
參數：
- 采樣率：最高200 MHz。
- 分辨率：14位。
- 存儲容量：板載256 MB DDR SDRAM存儲器。
- 數字輸入通道：8個不同采樣率的通道。
- 數字輸出通道：4個不同采樣率的通道。
- 高速通信接口：板載RJ-45和FPGA Mezzanine Connector（FMC）接口，支持Gigabit Ethernet和串行通信。
優點：
- 高性能：NI PCI-5402采用FPGA和DSP的組合架構，能夠快速處理大量數據。
- 靈活性：板卡上具有多種數字輸入輸出通道和通信接口，可以適應不同的應用場景。
- 可編程性：NI PCI-5402支持多種編程語言和開發環境，開發和調試非常方便。
- 可靠性：NI是一家知名的測試和測量設備制造商，產品品質和技術支持都非常可靠。
總之，NI PCI-5402是一款性能強、功能豐富、可靠性高的DSP板卡，適用于各種信號處理和控制系統應用。
英文資料：
NI PCI-5402 is a high-performance digital signal processor (DSP) board produced by National Instruments (NI) in the United States. It is widely used in fields such as signal processing, control systems, and embedded systems. The following are the configuration instructions, parameters, and advantages of NI PCI-5402.
Configuration instructions:
High sampling rate: up to 200 MHz.
Strong processing power: Xilinx Virtex II Pro FPGA and TI TMS320C6713 DSP are used for processing.
Rich interfaces: The board has multiple digital input and output channels, synchronous sampling triggers, high-speed communication interfaces, etc.
Comprehensive software support: supports NI's LabVIEW and LabWindows/CVI development environments.
Parameters:
Sampling rate: up to 200 MHz.
Resolution: 14 bits.
Storage capacity: onboard 256 MB DDR SDRAM memory.
Digital input channels: 8 channels with different sampling rates.
Digital output channels: 4 channels with different sampling rates.
High speed communication interface: onboard RJ-45 and FPGA Mezzanine Connector (FMC) interfaces, supporting Gigabit Ethernet and serial communication.
advantage:
High performance: The NI PCI-5402 adopts a combination architecture of FPGA and DSP, which can quickly process large amounts of data.
Flexibility: The board has multiple digital input and output channels and communication interfaces, which can adapt to different application scenarios.
Programmability: NI PCI-5402 supports multiple programming languages and development environments, making development and debugging very convenient.
Reliability: NI is a well-known manufacturer of testing and measuring equipment, with highly reliable product quality and technical support.
In summary, NI PCI-5402 is a high-performance, versatile, and highly reliable DSP board suitable for various signal processing and control system applications.

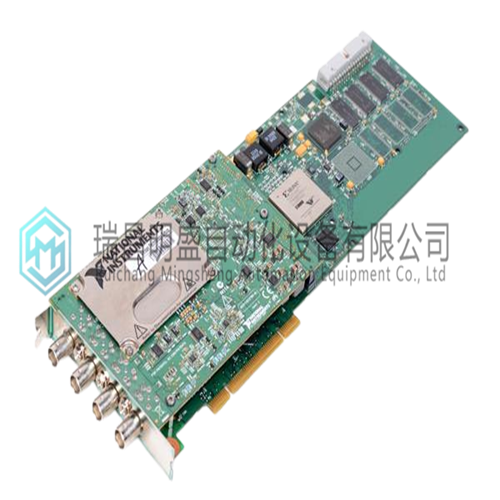

2.產 品 展 示
