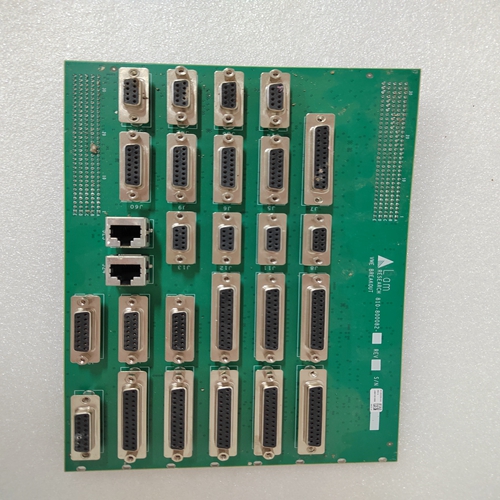

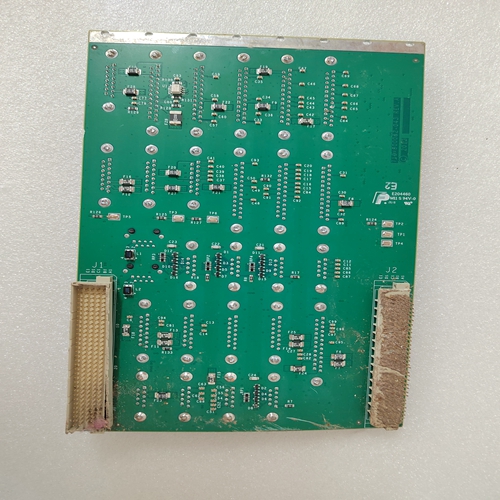

Lam Research 810-046015-010工業機器人卡件的使用
指定COMV的生產者和消費者
要指定應用程序COMV的生產者/消費者或系統COMV：
1.在MPS Exchange定義窗口的左窗格中選擇通用設備。
2.在右側窗格中，單擊應用程序COMV或系統COMV選項卡。右側窗口的窗格包含兩個列表：COMV和設備。3.在COMV列表中，單擊要指定的COMV的名稱生產者或消費者。
4.指定生產者或消費者：–在設備列表中，單擊與設備名稱相對的Pr列產生應用程序COMV。在設備列表中意味著設備產生所選應用程序COMV。–在設備列表中，單擊與每個消費者姓名相對的Cr列應用程序COMV的設備。在設備列表中，存在v表示設備是所選應用程序COMV的消費者。或：–在設備列表中，單擊要指定的設備名稱產生的應用程序通信變量（僅適用于應用程序COMV）或消耗。
–在COMV列表中，單擊與每個COMV名稱相對的P列由該裝置產生。在COMVs列表中，v的存在表明COMV由所選設備產生。
–在COMV列表中，單擊與每個COMV名稱相對的C列由該設備消耗。在COMVs列表中，v的存在意味著
COMV由所選設備消耗。創建配置的最后一步是“構建”二進制配置文件。這使用網絡配置工具完成。
構建網段建立總線仲裁程序。它還產生某些設備的配置元素。當建立總線仲裁程序時，COMV放置在傳輸時隙中，從具有這是最短的時間。生成操作的結果可以打印出來。
詳細打印輸出包括：項目識別
修訂代碼
測試_P指令周期
總線仲裁器宏周期的持續時間（毫秒）宏周期中非周期性消息的百分比
宏周期中非周期變量傳輸?shù)陌俜直瓤偩€仲裁器的描述
每個傳輸時隙的填充率
每個設備的建筑報告
交換描述
應用變量和TVA之間的鏈接
每個設備的網絡接口構建報告
每個I/O機架的處理接口構建報告
Specifying the Producers and Consumers of COMVs
To specify the producers/consumers of an application COMV or the consumers of a
System COMV:
1. Select the Generic device in the left pane of the MPS Exchange Definition window.
2. In the right pane, click on the Applicative COMVs or System COMVs tab. The right
pane of the window contains two lists, COMVs and Devices.
3. In the COMVs list, click on the Name of the COMV for which you wish to specify
the producers or consumers.
4. To specify producers or consumers:
– In the Devices list, click in Pr column opposite the Name of the device
producing the application COMV. In the Devices list, the presence of the v
means that the device produces the selected application COMV.
– In the Devices list, click in the Cr column opposite each Name of each consumer
device of the application COMV. In the Devices list, the presence of the v means
the device is a consumer of the selected application COMV.
Or:
– In the Devices list, click on the Name of the device for which you wish to specify
application communication variables produced (for application COMVs only) or
consumed.
– In the COMVs list, click in Column P opposite the Name of each COMV
produced by this device. In the COMVs list, the presence of the v indicates that
the COMV is produced by the selected device.
– In the COMVs list, click in Column C opposite the Name of each COMV
consumed by this device. In the COMVs list, the presence of the v means that
the COMV is consumed by the selected device.The final step in creating a configuration is “building” the binary configuration files. This
is done using the Network Configuration Tool.
Building a network segment establishes the bus arbiter program. It also produces
configuration elements for certain devices. When the bus arbiter program is being built,
the COMVs are placed in the transport time slots, beginning with the time slots with the
shortest period.
The results of the build operation can be printed out. The detailed printout includes:
project identification
revision codes
the TEST_P instruction period
the duration of the bus arbiter macrocycle (in milli–seconds)
the percentage of aperiodic messages in the macrocycle
the percentage of aperiodic variable transmissions in the macrocycle
the description of the bus arbiter
the fill rate for each transport time slot
the building report for each device
the exchange description
the links between the application variables and the TVAs
the report of the network interface building for each device
the report of the processing interface building for each I/O rack
