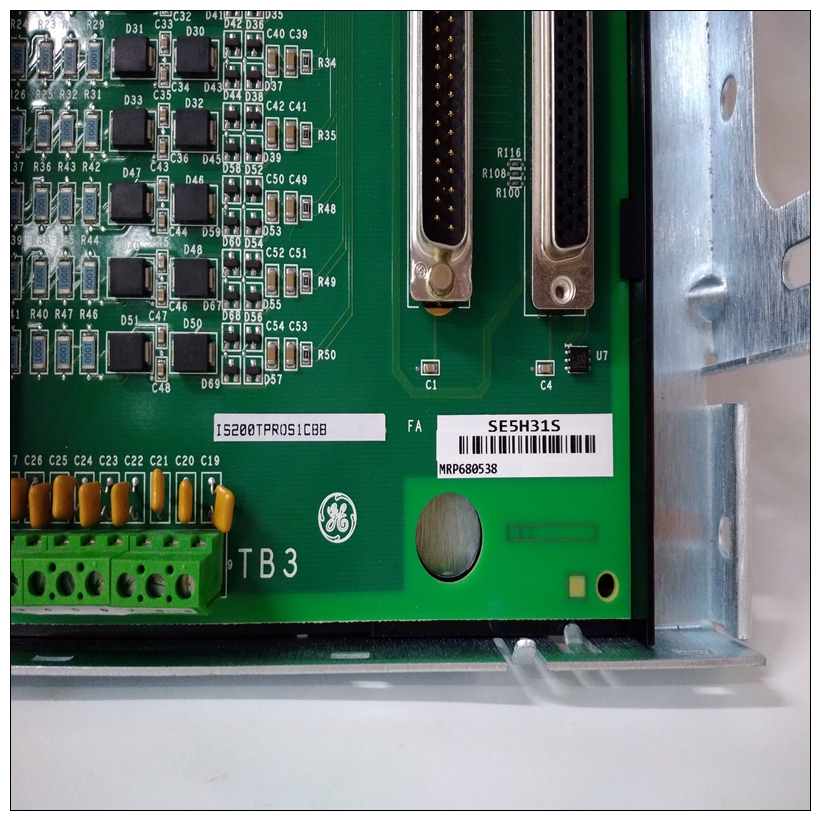

IS200TPROS1CBB燃機卡件，GE通用模塊
過電流保護電源提供電子過電流為3個輸出中的每一個提供保護。如果最大超過額定電流時，電壓將降至低值。它將保持該狀態，直到重新移動或減少負載。電流過載（包括短路條件）不會導致保險絲斷開。該電源不符合FCC對非工業應用的要求交流電源線上的傳導電磁干擾。機架操作一個電源可以為兩個人供電以下條件下的機架：第二個機架只需要5伏電源
IS200TPROS1CBB燃機卡件，兩個機架所需的總功率與電源容量有關。第二個機架消耗的電流小于5.2安培。兩個機架必須緊密安裝受可用3英尺連接電纜的限制，用于雙機架操作的連接電纜為表1中列出了訂購信息。這條電纜承載+5伏電源總線和電源對信號進行排序。它使用9針D型連接器它通過一個機架中的開口。注意，電纜承載僅限功率和功率排序信號。機架間通信和總線接口模塊必須單獨提供。參見適用的可編程控制器安裝手冊。申請信息。時序圖下面的時序圖顯示了交流電壓的關系直流輸出和電源產生的兩個系統信號的輸入功率：ACFAIL和系統重置。5VSTBY輸出可用于用戶電池備份方案如圖所示。通電時，ACFAIL信號出錯5伏總線在規格范圍內后不久。SYSRESET將系統保持在重置狀態至少5伏電源可用后200毫秒（期間這一次，輸出被強制關閉）。如果交流輸入電源中斷，5伏總線將在規格范圍內重新供電至少一個周期。這個然后，在SYSRESET停止所有操作之前，給系統額外5毫秒的時間來完成有序關機處理。
Overcurrent Protection
The power supply provides electronic overcurrent
protection for each of the 3 outputs. If the maximum
current rating is exceeded, the voltage will collapse to
a low value.
It will remain in that state until the load is either removed or reduced. A current overload (including a
short circuit condition) will not cause the fuse to open.
This power supply does not comply with FCC requirements in non-industrial applications for
conducted EMI on AC power lines.
Dual Rack Operation
A single power supply can provide power for two
racks under the following conditions:
Only 5 volt power is required in the second rack,
and the total power required by both racks is within the capability of the supply.
The current drawn by the second rack is less than
5.2 amperes.
The two racks must be mounted in close proximity
as limited by the available 3-foot connecting cableThe connecting cable used for dual rack operation is
listed in Table 1, Ordering Information. This cable
carries the +5 volts power bus as well as the power
sequencing signals. It uses a 9-pin D-type connector
which connects directly to the backplane through an
opening in the rack frame. Note that the cable carries
power and power sequencing signals only. Inter-rack
communication and bus interface modules must be
provided separately. See the applicable Programmable
Controller Installation Manual. for application information.Timing Diagram
The timing diagram below shows the relationship of the ac
input power to the dc outputs and to the two system signals generated by the power supply: ACFAIL and
SYSRESET. The 5VSTBY output may be used for user
battery backup schemes as shown.
On application of power, the ACFAIL signal goes false
soon after the 5 volt bus is within specification. The system is held in the Reset state by SYSRESET for at least
