產品內容介紹

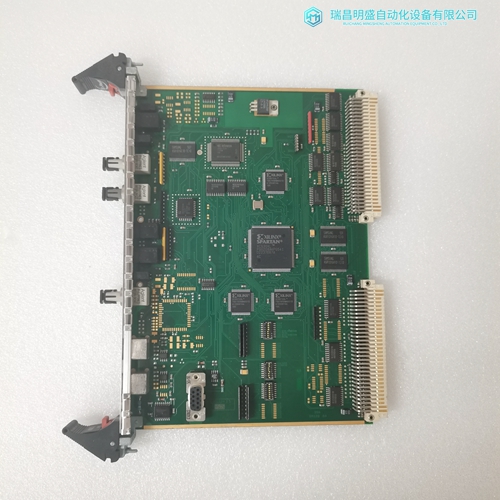

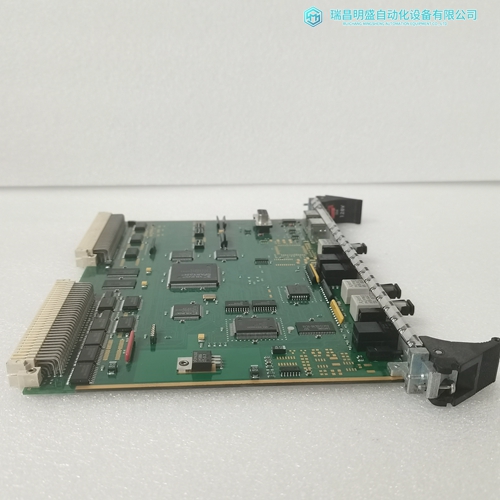

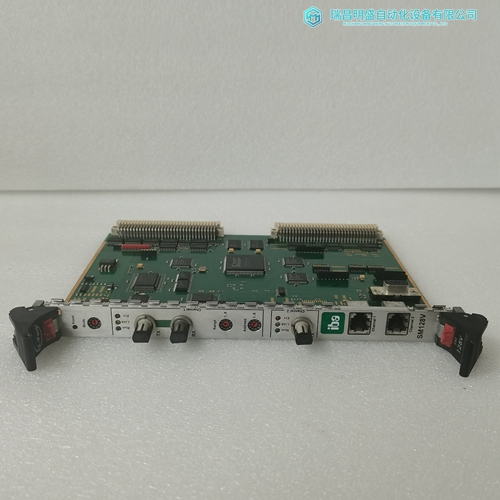

IBA SM128V工業控制模塊
配置示例
重要提示：以下章節僅供示例，旨在幫助用戶使用西門子工業以太網設置和配置模塊與處理器的通信協議在發出控制操作（寫入命令）之前，請確保處理器位于接收這些命令的安全狀態。
請確保溝通和控制可以在不對裝置和設備造成損壞或傷害的情況下進行操作致人員。
示例1
此示例演示了從ControlLogix傳輸數據的配置處理器到S7-300處理器。
數據從RSLogix控制器標簽傳輸溶劑同位素效應。通過SIE寫入數據[0]。
將數據[4]寫入數據塊1中的地址0到8西門子處理器，使用INT數據類型。
1將適當?shù)臄?shù)據復制或移動到控制器標簽SIE中。
通過寫入數據[0]溶劑同位素效應。RSLogix 5000中的WriteData[4]此示例演示了從S7-300處理器到ControlLogix的數據傳輸加工機數據從地址0傳輸至16（MD 0至MD 16）
RSLogix控制器標簽SIE。通過SIE讀取數據[0]。ReadData[9]，使用REAL數據類型和地址類型標志。
1在Simatic Manager中，鍵入標志地址MD 0至MD 16。
更改顯示格式，方法是右鍵單擊“顯示格式”列中的條目并選擇從下拉列表中選擇FLOATING-POINT。
靜態ARP表
靜態ARP表定義了模塊在以下情況下將使用的靜態IP地址列表需要ARP（地址解析協議）。
模塊最多可接受40個靜態IP/MAC地址數據集。
使用靜態ARP表通過指定IP來減少網絡流量地址及其關聯的MAC（硬件）地址模塊將定期與通信。
要點：如果字段中的設備發生更改，則必須更新此表以包含新的MAC地址并下載到模塊。
如果MAC未更改，則與將提供模塊。
IP地址點符號此表包含當ARP為必修的。
該模塊將接受多達40個靜態IP/MAC地址數據集。
要點：如果字段中的設備發生更改，則必須更新此表以包含新的MAC地址并下載到模塊。
如果MAC未更改，則與模塊將發生。
硬件MAC地址十六進制值此表包含模塊在ARP時將使用的靜態MAC地址列表是必需的。該模塊將接受多達40個靜態IP/MAC地址數據集。
要點：如果字段中的設備發生更改，則必須更新此表以包含新的MAC地址并下載到模塊。如果MAC未更改，則與模塊將發生。
Configuration Examples
Important: The following sections are for example purposes only, and are intended to assist a user in setting up and configuring module communications with a processor using Siemens Industrial Ethernet protocol. Before issuing control operations (write commands), please make sure that the processor is in a safe state to receive these commands. PLEASE ENSURE THAT COMMUNICATION AND CONTROL OPERATIONS CAN BE CARRIED OUT WITHOUT DAMAGE TO PLANT AND EQUIPMENT, OR INJURY TO PERSONNEL. Example 1 This example demonstrates configuration for data transfer from a ControlLogix processor to an S7-300 processor. The data is transferred from RSLogix controller tags SIE.WriteData[0] through SIE.WriteData[4] to Data Block 1 addresses 0 through 8 in the Siemens processor, using the INT data type. 1 Copy or move the appropriate data into controller tags SIE.WriteData[0] through SIE.WriteData[4] in RSLogix 5000 This example demonstrates data transfer from an S7-300 processor to a ControlLogix processor. The data is transferred from addresses 0 through 16 (MD 0 through MD 16) to RSLogix controller tags SIE.ReadData[0] through SIE.ReadData[9], using the REAL data type and Address Type Flag. 1 In Simatic Manager, type in Flag addresses MD 0 through MD 16. Change the display format by right-clicking an entry in the Display format column and selecting FLOATING-POINT from the dropdown list.
Static ARP Table
The Static ARP Table defines a list of static IP addresses that the module will use when an ARP (Address Resolution Protocol) is required. The module will accept up to 40 static IP/MAC address data sets. Use the Static ARP table to reduce the amount of network traffic by specifying IP addresses and their associated MAC (hardware) addresses that the MVI56E-SIE module will be communicating with regularly. Important: If the device in the field is changed, this table must be updated to contain the new MAC address for the device and downloaded to the module. If the MAC is not changed, no communications with the module will be provided. IP Address Dotted notation This table contains a list of static IP addresses that the module will use when an ARP is required. The module will accept up to 40 static IP/MAC address data sets. Important: If the device in the field is changed, this table must be updated to contain the new MAC address for the device and downloaded to the module. If the MAC is not changed, no communications with the module will occur. Hardware MAC Address Hex value This table contains a list of static MAC addresses that the module will use when an ARP is required. The module will accept up to 40 static IP/MAC address data sets. Important: If the device in the field is changed, this table must be updated to contain the new MAC address for the device and downloaded to the module. If the MAC is not changed, no communications with the module will occur.
公司主營產品圖展示
產品優勢
1：國外專業的供貨渠道，具有價格優勢
2：產品質量保證，讓您售后無憂
3：全國快遞包郵
4：一對一服務
公司主營范圍簡介
PLC可編程控制器模塊，DCS卡件，ESD系統卡件，振動監測系統卡件，汽輪機控制系統模塊，燃氣發電機備件等，優勢品牌：Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS Triplex、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、TRICONEX、Prosoft等各種進口工業零部件、歐美進口模塊。
產品廣泛應用于冶金、石油天然氣、玻璃制造業、鋁業、石油化工、煤礦、造紙印刷、紡織印染、機械、電子制造、汽車制造、塑膠機械、電力、水利、水處理/環保、鍋爐供暖、能源、輸配電等等
