產品細節介紹

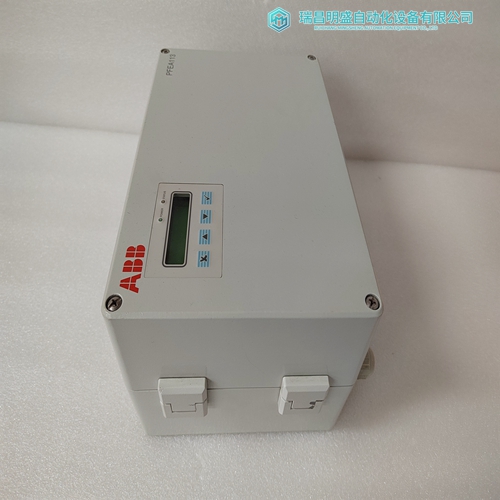

3BSE050092R65配套控制器
熱容量使用量呈指數衰減，以模擬電機的冷卻。冷卻速度基于電機運行時的運行冷卻時間常數，或電機運行時停止冷卻時間常數停止。輸入的冷卻時間常數是總冷卻時間的五分之一，從使用的100%熱容量到使用的0%熱容量。
369具有學習冷卻時間常數的獨特能力。僅當定子RTD與369相連。學習到的冷卻時間算法在電機冷卻時觀察電機的溫度，因此確定冷卻所需的時間長度。如果無法從電機制造商處檢索冷卻時間，則必須啟用學習冷卻時間（如果定子RTD已連接）。
由于轉子旋轉，電機在運行時會產生扇形動作。因此，運行冷卻時間通常為停止冷卻時間的一半。
有關如何確定冷卻時間常數的更多詳細信息，請參閱冷卻時間選擇應用說明隨電機一起提供。
RTD偏置這將使定子RTD傳感器的溫度包含在熱容量計算中。這該模型根據定子溫度確定了所用的熱容量，是獨立于用于計算所用熱容量的過載模型。RTD偏置是一個備用保護元件比如失去冷卻或環境溫度異常高。有三個參數需要設置：RTD偏置最小值，RTD偏置中點，RTD偏置最大值。
RTD偏差最小值設置為40°C，即環境溫度（從數據表中獲得）。
RTD偏置中點
中心點溫度設置為電機的熱運行溫度，計算如下：定子溫升+環境溫度。
根據數據表，定子的溫升為79°K。因此，RTD中心點溫度為設置為120°C（79+40）。
RTD偏差最大值
該設定值設置為絕緣額定值或稍低。該電機使用F級絕緣，額定值為155°C。
過載曲線
如果只提供了一條熱極限曲線，則所選的過載曲線應位于其下方。當熱極限和冷極限曲線，所選過載曲線應在兩條曲線之間擬合，并使用編程的熱/冷比在熱容量算法中考慮電機的熱狀態。最佳擬合369標準曲線為曲線#4，如第7-9頁圖7-2：電機熱極限所示。
短路跳閘
短路跳閘應設置為高于最大鎖定轉子電流，但低于保險絲的短路電流。
數據表顯示最大堵轉電流為550%FLC或5.5×FLC。具有瞬時延時的6×FLC設置將是理想的，但由于啟動要求異常高，可能會導致誤跳閘，而負載是耦合的。如果需要，將S/C級別設置為最高8×FLC，以覆蓋這些條件。
PROGRAMMING EXAMPLE 7
The Thermal Capacity Used quantity decays exponentially to simulate the cooling of the motor. The rate of cooling is based upon the running cool time constant when the motor is running, or the stopped cool time constant when the motor is stopped. The entered cool time constant is one fifth the total cool time from 100% thermal capacity used down to 0% thermal capacity used. The 369 has a unique capability of learning the cool time constant. This learned parameter is only functional if the Stator RTDs are connected to the 369. The learned cool time algorithm observes the temperature of the motor as it cools, thus determining the length of time required for cooling. If the cool times can not be retrieved from the motor manufacturer, then the Learned Cool Time must be enabled (if the stator RTDs are connected). Motors have a fanning action when running due to the rotation of the rotor. For this reason, the running cool time is typically half of the stopped cool time. Refer to the Selection of Cool Time application note for more details on how to determine the cool time constants when not provided with the motor. RTD Biasing This will enable the temperature from the Stator RTD sensors to be included in the calculations of Thermal Capacity. This model determines the Thermal Capacity Used based on the temperature of the Stators and is a separate calculation from the overload model for calculating Thermal Capacity Used. RTD biasing is a back up protection element which accounts for such things as loss of cooling or unusually high ambient temperature.
There are three parameters to set
RTD Bias Min, RTD Bias Mid, RTD Bias Max. RTD Bias Minimum Set to 40°C which is the ambient temperature (obtained from data sheets). RTD Bias Mid Point The center point temperature is set to the motor’s hot running temperature and is calculated as follows: Temperature Rise of Stator + Ambient Temperature. The temperature rise of the stator is 79°K, obtained from the data sheets. Therefore, the RTD Center point temperature is set to 120°C (79 + 40). RTD Bias Maximum This setpoint is set to the rating of the insulation or slightly less. A class F insulation is used in this motor which is rated at 155°C. Overload Curve If only one thermal limit curve is provided, the chosen overload curve should fit below it. When a hot and cold thermal limit curve is provided, the chosen overload curve should fit between the two curves and the programmed Hot/Cold ratio is used in the Thermal Capacity algorithm to take into account the thermal state of the motor. The best fitting 369 standard curve is curve # 4, as seen in Figure 7–2: MOTOR THERMAL LIMITS on page 7–9. Short Circuit Trip The short circuit trip should be set above the maximum locked rotor current but below the short circuit current of the fuses. The data sheets indicate a maximum locked rotor current of 550% FLC or 5.5 × FLC. A setting of 6 × FLC with a instantaneous time delay will be ideal but nuisance tripping may result due to unusually high demanding starts or starts while the load is coupled. If need be, set the S/C level higher to a maximum of 8 × FLC to override these conditions.
