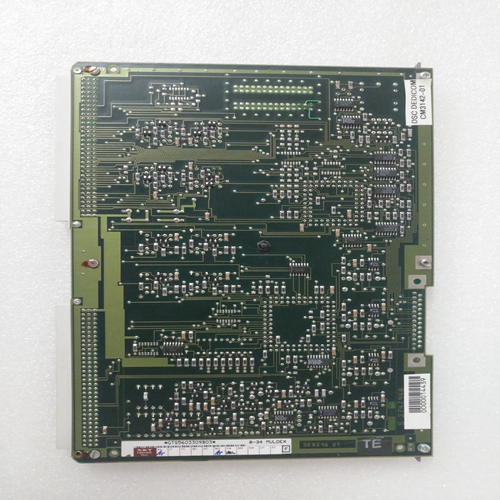

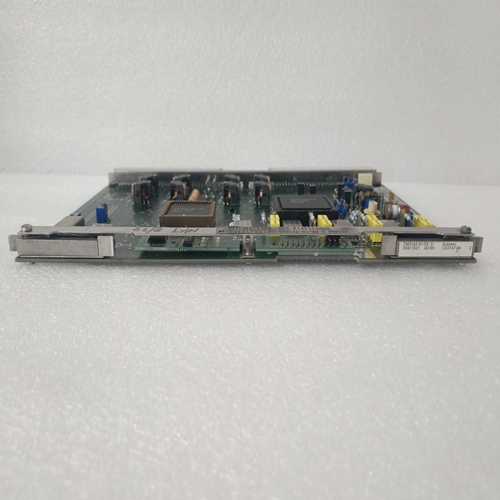

SAT CM3142-01-03開關量卡件
MAC驅動器特別設計用于金屬加工和木材加工的數控機床中的高精度伺服應用，
輸送線、自動化系統以及生產機器汽車工業。
它通常作為位置控制回路中的變速驅動器運行
NC的。在這種情況下，從NC向驅動器提供速度設定點。
MAC伺服驅動器具有以下特定于應用的功能：
–高短時加速力矩
–通過I（紅色）輸入減少扭矩，例如當運行到固定停止時，用于減少耦合到電機的機械系統上的負載
在特定操作條件下，用于以受控扭矩操作以加載移動機械裝置。
–扭矩控制驅動，用于兩個電機的主/從操作：
它們牢固地連接在一起。
–相同設定點極性的旋轉方向相反。
–通過差分輸入或兩個零加和輸入的設定點輸入電壓基準。
–通過電位計外部可調漂移偏移。
–設備“就緒”狀態可通過無電勢繼電器觸點輸出。
–通過前端進行快速、清晰的診斷和輕松的故障排除面板診斷和狀態燈。
–所有調整參數均在MOD編程模塊上設置，使得伺服驅動器的用戶不需要執行耗時的調整和校準過程。
因此，用戶將控制器與電機類型進行匹配：通常不需要，因?yàn)榭刂茀?shù)已經在工廠針對通常的現有耦合質量進行優化。三相伺服驅動系統包括：電源輸入組件（主開關、接觸器、變壓器或換向電感器、電源模塊、平滑扼流圈、附加電容），
–伺服驅動模塊（控制單元）
–電機電纜和–MAC伺服電機。
電源模塊能夠提供幾種不同類型的伺服驅動單元和主驅動器（如需要）。
The MAC drive is especially designed for high-accuracy servo applications in NC machine tools for metal machining and wood working,
transfer lines, automation systems, as well as in production machines in
the automotive industry.
It is usually operated as a variable-speed drive in the position control loop
of an NC. In this case a speed set-point is fed to the drive from the NC.
The MAC servo drive has the following application-specific functions:
– High short-time acceleration moments
– Torque reduction via I(red) input, which can be used for example
when running up to a fixed stop,
for reducing the load on the mechanical system coupled to the motor
under specific operating conditions,
for operating with controlled torque to load moving mechanical devices.
– Torque-controlled drive for master/slave operation of two motors that
are solidly coupled together.
– Reversal of direction of rotation for same set-point polarity.
– Set-point input via a differential input or two summing inputs with zero
voltage reference.
– Externally-adjustable drift offset via potentiometer.
– Equipment ?ready“ state can be output via potential-free relay contact.
– Rapid and clear diagnostics and easy troubleshooting via the front
panel diagnostics and status lamps.
– All adjustment parameters are set on the MOD programming module,
so that the user of the servo drive does not need to carry out timeconsuming adjustments and calibration procedures.
Matching of the controller to the motor type by the user is therefore
generally unnecessary since the control parameters are already
optimized in the factory for the usual existing coupled masses.The three-phase servo drive system consists of
– the mains input components (master switch, contactor, transformer or
commutation inductor, power supply module, smoothing chokes, additional capacitances),
– the servo drive module (control unit)
– the motor cable and
– the MAC servo motor.
The power supply module is able to supply several different types of
servo drive units and a main drive if required.
