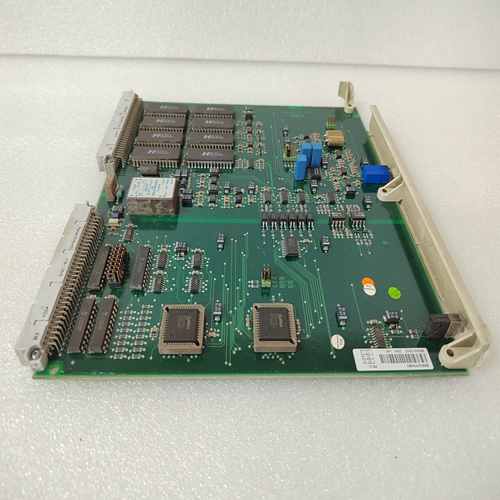

DSDI146以太網模塊
FBC存儲器的離散和模擬輸入數據區域FBC雙端口存儲器的該區域包含每個配置的輸入應用傳輸變量（TVA）。FIP總線控制器將消耗的數據TVA（包括狀態、抖動和專用報警數據）直接放入其存儲器的I/O數據區。這是隨后將映射到PLC的%I和%AI參考表的數據。如果數據TVA不能從網絡中消耗，通常由于缺乏及時性或刷新，F(xiàn)IP總線控制器根據其配置默認數據（為0或保持其最后狀態）。FBC存儲器的輸入點故障觸點和報警數據區域該區域包含與輸入數據相關的驗證程序TVA。PLC使用驗證器信息驅動與離散點和模擬通道相關的點故障觸點的狀態。PLC還使用該信息驅動與一些模擬輸入相關的任何高報警觸點和低報警觸點。每個離散輸入位都有一個位點故障觸點。每個模擬輸入通道都有一個包含點故障和報警故障觸點的單字節。FIP總線控制器將成功消費的驗證程序TVA放置在此區域，無需修改。如果驗證器TVA無法使用，通常由于缺乏及時性或更新，F(xiàn)BC僅設置影響離散和模擬數據點故障觸點的位。模擬TVA的剩余位保持其最后狀態。因此，如果設置了任何報警觸點位，則如果驗證程序TVA不再被使用，則保持設置。FBC存儲器的離散和模擬輸出數據區該FBC存儲器區域包含每個配置的輸出應用傳輸變量（TVA）。CPU將輸出數據（包括PLC的%Q和%AQ參考表中的狀態和閃爍數據）放入該區域。當FBC檢測到新的輸出數據時，它將數據直接復制到一個或多個COMV中，并在FIP網絡上生成每個COMV。如果FIP總線控制器沒有從PLC CPU接收到新數據，則不會刷新COMV。然后，基于配置的刷新定時器，COMV可以變?yōu)槲此⑿?。FIP總線控制器掃描進出FIP網絡的I/O數據。在FIP網絡上，每個I/O數據TVA被分配給一個時隙。
時隙是在指定時段發生的FIP宏周期的特定段。
在PLC CPU中，每個時隙必須與一個CPU掃描集相關聯。一個或多個時隙可以包括在同一掃描集中。
在FIP網絡上，分配給同一時隙的I/O數據TVA被合并到通信變量（COMV）。然后在FIP上轉移COMV在為TVA定義的同一時隙中的網絡。
異步或同步網絡訪問FBC提供兩種網絡訪問方法，異步和同步。使用哪種方法取決于PLC應用的需要
程序。如果應用程序必須與實際在FIP網絡上生成數據時，同步掃描方法必須使用。在所有其他情況下，異步網絡訪問方法可能是更可取
Discrete and Analog Input Data Area of FBC Memory This area of the FBC’s dual-port memory contains each configured input application transfer variable (TVA). The FIP Bus Controller places consumed data TVAs, including state, chatter, and specialized alarm data, directly into this I/O data area of its memory. This is the data that will subsequently be mapped to the PLC’s %I and %AI reference tables. If a data TVA cannot be consumed from the network, usually for lack of promptness or refreshment, the FIP Bus Controller defaults the data (to 0 or to hold its last state) according to its configuration. Input Point Fault Contacts and Alarm Data Area of FBC Memory This area contains validator TVAs associated with input data. The PLC uses validator information to drive the states of point fault contacts associated with discrete points and analog channels. The PLC also uses this information to drive any high and low alarm contacts associated with some analog inputs. There is a bit point fault contact for each discrete input bit. A single byte containing the point fault and alarm fault contacts is present for each analog input channel. The FIP Bus Controller places successfully consumed validator TVAs in this area without modification. If a validator TVA cannot be consumed, usually for lack of promptness or refreshment, the FBC sets only the bit that affects the point fault contact for the discrete and analog data. The remaining bits of the analog TVA hold their last state. Therefore, if any alarm contact bit is set, it remains set if the validator TVA can no longer be consumed. Discrete and Analog Output Data Area of FBC Memory This area of FBC memory contains each configured output application transfer variable (TVA). The CPU places the output data, including state and blink data from the PLC’s %Q and %AQ reference table into this area. When the FBC detects new output data, it copies the data directly into one or more COMVs and produces each COMV on the FIP network. If the FIP Bus Controller does not receive new data from the PLC CPU, it does not refresh the COMV. The COMV may then become unrefreshed based on the configured refreshment timers.The FIP Bus Controller scans I/O data to and from the FIP network. On the FIP network,
each I/O data TVA is assigned to a time slot.
Time Slots
A time slot is a specific segment of the FIP macrocycle that occurs at a designated period.
In the PLC CPU, each time slot must be associated with one of the CPU scan sets. One
or more time slots may be included in the same scan set.
On the FIP network, I/O data TVAs assigned to the same time slot are combined into
Communication Variables (COMVs). The COMVs are then transferred on the FIP
network in the same time slot that was defined for the TVAs.
Asynchronous or Synchronous Network Access
The FBC provides two methods of Network Access, asynchronous and synchronous.
The choice of which method to use depends on the needs of the PLC application
program(s). If the application program must be synchronized with the actual
production of the data on the FIP network, then the synchronous scanning method must
be used. In all other cases, the asynchronous Network Access method is probably
preferable.
