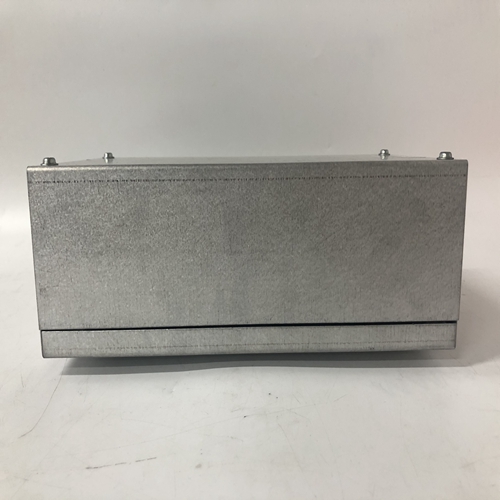

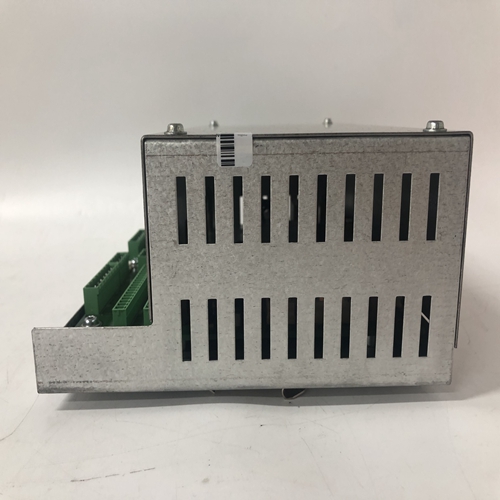

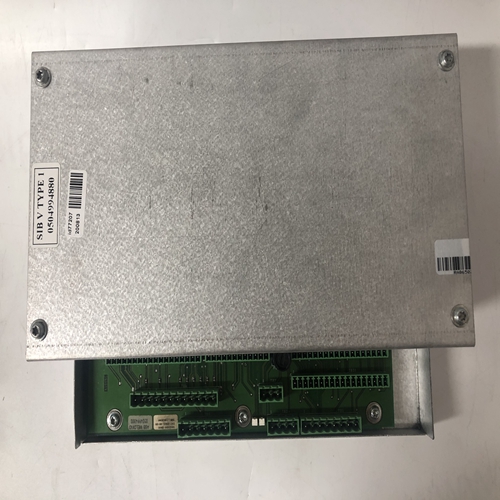

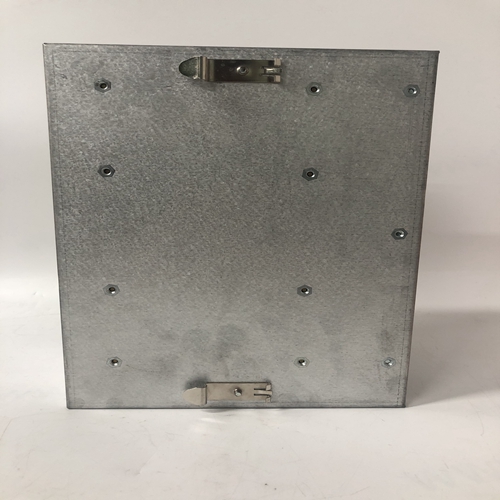

ABB 0504994880 機器人穩壓模塊
安裝：1.使用刀片寬度為1/8“的一字螺絲刀，分別轉動未使用的端子螺釘順時針旋轉，直到剛好擰緊-不要過度擰緊
2.閱讀要插入的連接器上的字母/數字，并參考連接器位置的相鄰圖。每個連接器是：鍵入適當?shù)牟寮恢谩?/p>
3.目視檢查連接器插座中的所有12個引腳是否筆直。如果銷僅輕微彎曲，可以嘗試非常溫和的矯直。
過度矯直可能導致銷斷裂，需要：更換連接器插座。
4.將連接器與連接器插座中的針腳對齊并推動連接器筆直插入。參見下圖。
5.兩對矩形翼片從蓋延伸。安裝蓋子通過將從蓋的一側延伸的一對凸耳安裝到一對端子中的兩個矩形槽。現在，壓縮稍微U形擠壓，然后將另一對蓋板凸耳裝入剩余一對端子中的槽。
蓋可以用兩個螺釘固定。
蓋子上的孔對齊連接器插座組件中有孔。使用3-48 x?長或M2.5 x 6長螺釘，用于固定蓋子。
8.3.2面板和機架安裝指南
面板表面應提供平坦且剛性的安裝表面。如果存在以下情況，則加固面板背面：面板表面彎曲的可能性。電纜管道、導管和布線不應干擾拆除或儀表、控制裝置、報警器和相關設備的可接近性。
8.3.3車站安裝
擰緊兩個安裝夾螺釘時，需要一個柄部至少為10“（254 mm）的直槽螺絲刀。
1.找到提供的安裝夾套件。它包含兩個安裝夾和兩個8-32 x 1”凹頭螺釘。
將安裝螺釘擰入安裝夾。參見圖8-6。
2.從面板前面，將控制器外殼插入面板切口。
3.輕輕旋轉頂部安裝夾，將其安裝到殼體切口中。然后，拉直卡子并部分?jǐn)Q緊安裝螺釘。插入、拉直并部分?jǐn)Q緊底部卡子。
4.將控制器與面板對齊。
5.交替擰緊頂部和底部安裝夾螺釘，直到控制器固定到面板上。不要過度擰緊和扭曲外殼。8.4電氣安裝
這些章節包含Moore 353接線的電氣連接細節。每種情況下的后連接器和端子被識別。第8.3節機械安裝中討論了連接器類型。連接器蓋拆卸和描述了固定部分或連接器與可移除部分的分離。
第8.4.2節接線指南包含有關接線連接器拆卸、導線尺寸、導線的具體信息布線時需要的剝離和其他細節。在開始連接控制器之前，請閱讀本節。第8.4.3節至第8.2.12節包含接線圖，以及必要時的分步安裝程序，以：
描述I/O和網絡布線。第8.4.13節提供了電源輸入接線信息。單控制器和示出了菊花鏈電源布線。
Installation:
1. Using a straight blade screwdriver with a 1/8" blade width, turn each
unused terminal screw clockwise until it is just tight - do not over
tighten.
2. Read the letters/numbers on the connector to be inserted and refer to
the adjacent figure for the connector location. Each connector is
keyed for the appropriate plug-in location.
3. Visually check that all 12 pins in the Connector Socket are straight.
If a pin is only slightly bent, very gentle straightening can be tried.
Excessive straightening may cause the pin to break requiring
replacement of the Connector Socket.
4. Align the connector with the pins in the Connector Socket and push
the connector straight in. See the adjacent figure.
5. Two pairs of rectangular tabs extend from the cover. Install the cover
by fitting one pair of tabs extending from one side of the cover into
two of the rectangular slots in a pair of terminals. Now, compress the
U-shaped extrusion slightly and fit the other pair of cover tabs into
the slots in the remaining pair of terminals.
6. The cover can be secured with two screws. Holes in the cover align
with holes in the connector socket assembly. Use 3-48 x ? long or
M2.5 x 6 long screws to secure the cover.
8.3.2 Panel and Rack Mounting Guidelines
The panel face should provide a flat and rigid mounting surface. Reinforce the back of the panel if there is a
possibility that the panel face will bow. Raceways, conduit, and wiring should not interfere with the removal or
accessibility of the instruments, control devices, alarms, and related equipment.
8.3.3 Station Mounting
A straight slot screwdriver with at least a 10" (254 mm) shank is needed to tighten the two mounting clip screws.
1. Locate the supplied Mounting Clip Kit. It contains two mounting clips and two 8-32 x 1" fillister head screws.
Thread the mounting screws into the mounting clips. See Figure 8-6.
2. From in front of the panel, insert the controller case into the panel cutout.
3. Slightly rotate the top mounting clip to fit it into the case cutout. Then straighten the clip and partially tighten
the mounting screw. Insert, straighten and partially tighten the bottom clip.
4. Square the controller with the panel.
5. Alternately tighten top and bottom mounting clip screws until the controller is secured to the panel. Do not
over tighten and distort the case. 8.4 ELECTRICAL INSTALLATION
These sections contain electrical connection details for wiring a Moore 353. Each case rear connector and terminal
is identified. Connector styles are discussed in section 8.3 Mechanical Installation. Connector cover removal and
separation of the fixed portion or a connector from the removable portion is described.
Section 8.4.2 Wiring Guidelines contains specific information about connector removal for wiring, wire size, wire
stripping and other details that will be needed while wiring. Read this section before beginning to wire a controller.
Sections 8.4.3 through 8.4.12 contain wiring diagrams and, where needed, step-by-step installation procedures to
describe I/O and network wiring. Section 8.4.13 provides power input wiring information. Single controller and
daisy chained power wiring are illustrated.
