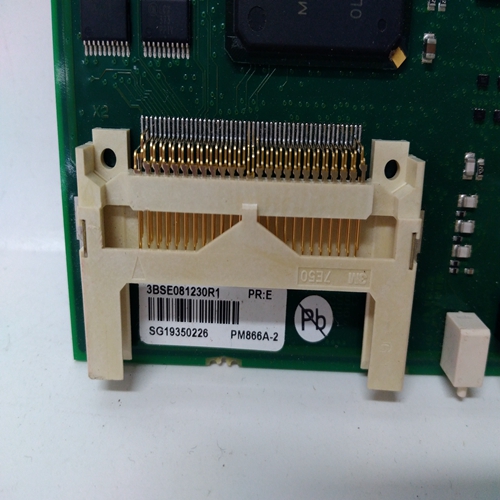

3BSE081230R1處理器模塊
架子每個機架組件包含一個子機架、工程卡、直流輸入卡、鑰匙套件以及必要時的互連電纜。根據配置，控制系統安裝在四個標準尺寸的子架如下：a、 全19英寸寬乘3U高-零件號05701-a-0511，用于后部現場接線連接。b、 全19英寸寬乘6U高-零件號05701-A-0501，用于前部現場接線連接。c、 半個19英寸寬乘3U高-零件號05701-A-0512，用于后部現場接線連接。d、 半個19英寸寬乘6U高-零件號05701-A-0502，用于前部現場接線連接。所有四個版本都有兩個單獨的腔室。一個是密封的電磁干擾和包含控制卡，而其他腔室包含現場/繼電器接口卡。背板兩個腔室之間提供了一條信號路由路徑單個卡和工程卡以及電源配電柜
兩個壁掛式機柜用于容納：
a、 全寬16通道前訪問機架，（零件號05701-A-0451）
b、 或八通道半寬前訪問機架。（零件號05701-A-0452）
每個機柜上的前門提供安全和防塵保護，門上的透明面板允許通道卡顯示：門關閉時查看。每個機柜的底座包含一個預成型分型電纜壓蓋入口的選擇。
5701單通道控制卡提供：a的控制、顯示和報警設施連接氣體檢測器。前面板顯示器指示氣體讀數和通道狀態而LED用于報警。按鈕用于重置報警和選擇與工程卡一起使用的卡。
控制卡的操作是：微處理器控制，完全可定義適用于各種連接的氣體探測器以及應用要求。軟件配置設置存儲在EEPROM中。
有兩種類型的控制卡，具體取決于：安裝在系統：
a、 單通道控制卡4-20mA。零件號05701-A-0301。
b、 單通道控制卡催化。零件號05701-A-0302。
上述每個控制卡由一單通道控制卡，配備相應的插入式傳感器驅動模塊。
可選的模擬輸出模塊也可以：
插入單通道控制卡提供通道卡的遠程輸出讀數。
RACKS
Each rack assembly contains a sub-rack, Engineering Card, DC Input
Card, key kit and where necessary an interconnecting cable.
Dependent upon configuration, the control system is housed in one of
four standard size sub-racks as follows:
a. Full 19 inch wide by 3U high - Part Number 05701-A-0511,
for rear field wiring connections.
b. Full 19 inch wide by 6U high - Part Number 05701-A-0501,
for front field wiring connections.
c. Half 19 inch wide by 3U high - Part Number 05701-A-0512,
for rear field wiring connections.
d. Half 19 inch wide by 6U high - Part Number 05701-A-0502,
for front field wiring connections.
All four versions have two separate chambers. One is sealed against
electromagnetic interference and contains the control cards while the
other chamber contains the field/relay interface cards. A backplane
between the two chambers provides a path for signal routeing between
individual cards and the Engineering Card, and power supply
distribution.CABINETS
Two wall mounted cabinets are used to house:
a. the full width 16 channel front access rack,
(Part Number 05701-A-0451)
b. or the eight channel half width front access rack.
(Part Number 05701-A-0452)
A front door on each cabinet provides security and dust protection,
while a clear panel in the door allows the channel card displays to be
viewed when the door is closed. The base of each cabinet contains a
selection of preformed knockout cable gland entries.
The 5701 Single Channel Control Card provides
control, display and alarm facilities for a
connected gas detector. The front panel display
indicates the gas reading and channel status
while LEDs are used for alarms. A push-button
is provided for resetting the alarms and selecting
the card for use with the Engineering Card.
The operation of the control card is
microprocessor controlled and is fully definable
for a wide range of connected gas detectors
and application requirements. The software
configuration setup is stored in an EEPROM.
There are two types of control card depending
on the type of gas detector being fitted to the
system:
a. Single Channel Control Card 4 - 20mA.
Part Number 05701-A-0301.
b. Single Channel Control Card Catalytic.
Part Number 05701-A-0302.
Each of the above control cards consist of a
single channel control card fitted with the
respective plug-in sensor drive module.
An optional Analogue Output Module can also
be plugged into the single channel control card
to provide a remote output of the channel card
readings.
