Tokyo Electron 381-642446-1連接板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
TEL Tokyo Electron 381-642446-1 連接板（Connection Board） 是一款應用于半導體制造設備內部的電子連接模塊，主要用于實現不同控制單元、電路板或功能模塊之間的信號、電源或通信線路的物理連接與分布。該組件屬于設備內部結構化布線系統的一部分，在設備集成度高、模塊化設計復雜的場合中尤為關鍵。
一、產品基本信息
產品型號： 381-642446-1
產品名稱： 連接板（Connection Board / Interface PCB）
制造商： Tokyo Electron Ltd.（TEL）
產品類別： 內部通信/信號接口板卡
二、核心功能
信號傳輸橋接
將來自控制器、I/O模塊、傳感器等不同子系統的信號進行集中、轉換或分發。
電源分配
為下游模塊（如小型控制板、驅動板）提供低壓電源通路（如+5V、+12V、+24V等）。
信號整合與整理
對復雜設備內部的線纜進行標準化排布，通過連接板集中處理，減少干擾、提升維護性。
多接口集成
一塊板上可能集成多種連接方式：排針、接線端子、扁平排線插槽、FFC/FPC連接器等。
三、典型應用領域
半導體設備控制主架構
作為主控板、I/O卡件與各子模塊之間的中轉樞紐，常用于 Etcher、CVD、涂膠顯影機等 TEL 設備中。
信號中繼與分配節點
將傳感器、執行器、溫控器等外圍設備的輸入信號引入，并轉送至對應控制模塊。
模塊間標準連接平臺
在 TEL 模塊化結構中，用于連接 CPU、通信模塊、數字輸入板、繼電器輸出板等。
調試與維護輔助接口
某些連接板集成狀態指示燈、跳線區域、測試端口，便于故障排查與信號測試。
英文資料：
TEL Tokyo Electron 381-642446-1 Connection Board is an electronic connection module used inside semiconductor manufacturing equipment, mainly used to achieve physical connection and distribution of signals, power or communication lines between different control units, circuit boards or functional modules. This component is part of the internal structured cabling system of the device, and is particularly critical in situations where the device has high integration and complex modular design.
1、 Basic Product Information
Product model: 381-642446-1
Product Name: Connection Board/Interface PCB
Manufacturer: Tokyo Electron Ltd. (TEL)
Product Category: Internal Communication/Signal Interface Board
2、 Core functions
Signal transmission bridge
Concentrate, convert, or distribute signals from different subsystems such as controllers, I/O modules, and sensors.
power distribution
Provide low-voltage power supply paths (such as+5V,+12V,+24V, etc.) for downstream modules (such as small control boards, driver boards).
Signal integration and organization
Standardize the layout of cables inside complex equipment, and centrally process them through connection boards to reduce interference and improve maintainability.
Multi interface integration
Multiple connection methods may be integrated on a single board, including pin headers, terminal blocks, flat cable slots, FFC/FPC connectors, etc.
3、 Typical application areas
Main architecture of semiconductor equipment control
As a relay hub between the main control board, I/O cards, and various sub modules, it is commonly used in TEL equipment such as Etcher, CVD, coating and developing machines.
Signal relay and distribution node
Introduce input signals from peripheral devices such as sensors, actuators, and thermostats, and forward them to the corresponding control module.
Standard connection platform between modules
In the TEL modular structure, it is used to connect CPUs, communication modules, digital input boards, relay output boards, etc.
Debugging and maintenance auxiliary interface
Some connection boards integrate status indicator lights, jumper areas, and test ports for easy troubleshooting and signal testing.

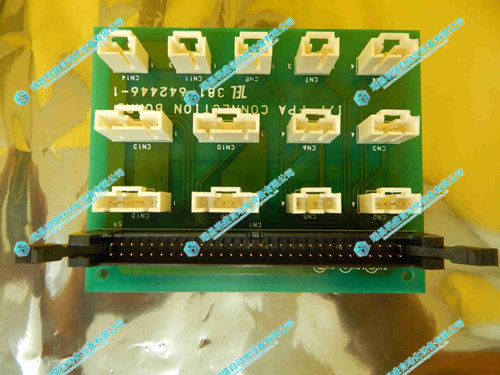

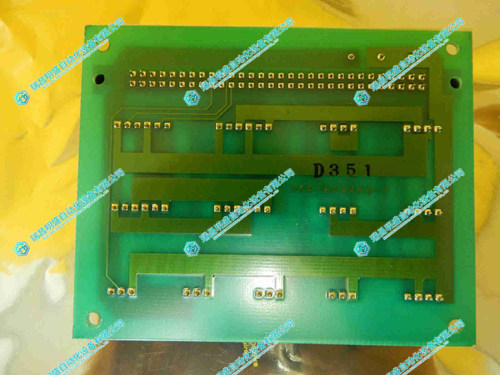

2.產 品 展 示
