Tokyo Electron 308-600223-4控制主板卡件 PDF資料
1.產 品 資 料 介 紹：
中文資料：
TEL Tokyo Electron 308-600223-4 控制主板卡件（Main Control Board / Controller Card） 是一款用于半導體制造設備中的核心控制單元，通常部署在 Tokyo Electron（TEL）設備的主控系統內部，作為系統運行的指令處理中心之一。它負責協調信號輸入輸出、執行邏輯控制流程，并與上位管理系統及其他功能模塊進行高速通信。
一、基本信息
產品型號： 308-600223-4
產品名稱： 控制主板卡件（Control Main Board / Controller PCB）
制造商： Tokyo Electron Ltd.（TEL）
所屬設備平臺： TEL Etch / CVD / Coater / Developer / EFEM 系列
模塊類型： 嵌入式控制處理板卡
二、主要功能
工藝流程控制
執行設備的自動控制邏輯程序；
管理腔體、溫控、閥門、電源等工藝子系統的運行序列。
數據處理與通信
接收和處理來自 I/O 板卡、傳感器的實時數據；
與 TEL 系統主干控制網絡或上位 MES/HMI 進行高速通信。
聯動與安全控制
實現設備安全聯鎖控制（如開門保護、真空聯鎖等）；
提供故障報警和狀態反饋機制。
模塊間協調管理
協調多個功能模塊如伺服控制板、電源分配板、接口模塊的同步運行；
控制信號路由與輸出到下游執行單元。
英文資料：
TEL Tokyo Electron 308-600223-4 Main Control Board/Controller Card is a core control unit used in semiconductor manufacturing equipment, typically deployed within the main control system of Tokyo Electron (TEL) devices as one of the instruction processing centers for system operation. It is responsible for coordinating signal input and output, executing logical control processes, and performing high-speed communication with the upper management system and other functional modules.
1、 Basic Information
Product model: 308-600223-4
Product Name: Control Main Board/Controller PCB
Manufacturer: Tokyo Electron Ltd. (TEL)
Equipment platform: TEL Etch/CVD/Coater/Developer/EFEM series
Module Type: Embedded Control Processing Board
2、 Main functions
Process control
Execute the automatic control logic program of the device;
Manage the operational sequence of process subsystems such as chambers, temperature control, valves, and power supply.
Data Processing and Communication
Receive and process real-time data from I/O boards and sensors;
High speed communication with TEL system backbone control network or upper MES/HMI.
Linkage and safety control
Implement equipment safety interlock control (such as door opening protection, vacuum interlock, etc.);
Provide fault alarm and status feedback mechanism.
Coordination and management between modules
Coordinate the synchronous operation of multiple functional modules such as servo control board, power distribution board, and interface module;
Route and output control signals to downstream execution units.

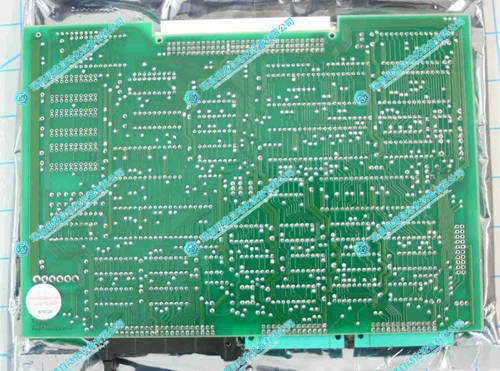

2.產 品 展 示
