Tokyo Electron 1981-600512-13分區監控板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
TEL Tokyo Electron 1981-600512-13 分區監控板 是東京電子（TEL）半導體設備中用于對設備各個功能區域或工藝區域進行狀態監控和管理的專用電子板，主要負責采集分區內傳感器數據、監測設備運行狀況，并向主控系統反饋實時信息。
一、產品概述
| 項目 | 內容 |
|---|---|
| 產品名稱 | 分區監控板（Zone Monitoring Board） |
| 產品型號 | 1981-600512-13 |
| 制造廠商 | Tokyo Electron Ltd.（東京電子） |
| 功能定位 | 區域狀態監測與信號采集 |
二、核心功能
分區狀態采集
負責采集設備指定分區內的溫度、壓力、流量、開關量等傳感器信號；
實時監控該分區的工藝和設備運行狀態。
信號處理與反饋
將采集到的模擬及數字信號處理后，轉換成主控系統可識別的標準格式；
監測異常狀態并可發出報警信號。
與主控系統通信
通過通信總線將分區信息傳遞至中央控制模塊，支持集中監控與遠程管理。
英文資料：
The TEL Tokyo Electron 1981-600512-13 partition monitoring board is a specialized electronic board used in Tokyo Electronics (TEL) semiconductor equipment to monitor and manage the status of various functional or process areas of the equipment. It is mainly responsible for collecting sensor data within the partition, monitoring the operation status of the equipment, and providing real-time information feedback to the main control system.
1、 Product Overview
Project Content
Product Name: Zone Monitoring Board
Product model 1981-600512-13
Manufacturer Tokyo Electron Ltd
Functional positioning area status monitoring and signal acquisition
2、 Core functions
Partition status collection
Responsible for collecting sensor signals such as temperature, pressure, flow rate, and switch quantity within the designated partition of the equipment;
Real time monitoring of the process and equipment operation status of the partition.
Signal Processing and Feedback
After processing the collected analog and digital signals, convert them into a standard format recognizable by the main control system;
Monitor abnormal states and issue alarm signals.
Communicate with the main control system
The partition information is transmitted to the central control module through the communication bus, supporting centralized monitoring and remote management.

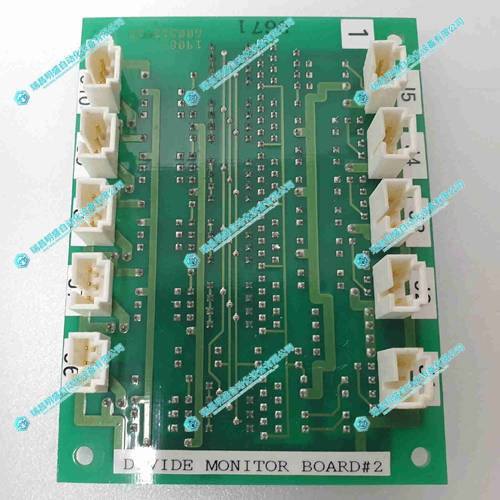

2.產 品 展 示
