EMERSON P188.R2連接器板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Emerson P188.R2 連接器板是一種用于工業自動化、能源管理和通信系統的高性能接口模塊。這種連接器板通常被設計為信號分配和連接的核心硬件，用于實現設備之間的高效、可靠的數據傳輸和電氣連接。
產品特點
多功能連接能力：
- 支持多種信號類型（模擬信號、數字信號、通信信號）的傳輸和處理。
- 提供多通道連接，適合復雜工業系統的設備互聯需求。
工業級可靠性：
- 采用高品質工業級元器件，適用于嚴苛的操作環境（如高溫、高濕和振動）。
- 具備抗干擾能力，確保信號傳輸?shù)耐暾院头€(wěn)定性。
模塊化設計：
- 緊湊型設計，易于集成到現有系統或控制柜中。
- 可快速插拔，簡化安裝和維護。
電氣保護：
- 內置過流、過壓保護電路，防止意外損壞。
- 支持接地保護，進一步提升設備安全性。
兼容性強：
- 符合多種工業總線協議和通信標準。
- 可無縫連接至各種PLC、DCS或其他控制系統。
技術規格
| 參數 | 描述 |
|---|---|
| 型號 | P188.R2 |
| 功能 | 信號連接與分配 |
| 輸入電壓范圍 | 24V DC 或工業標準范圍 |
| 工作溫度范圍 | -20°C 至 +70°C |
| 通信支持 | RS-485、RS-232、以太網等 |
| 抗干擾等級 | 符合IEC 61000系列標準 |
| 接口類型 | 多針工業連接器 |
| 尺寸 | 緊湊型設計，適合標準控制柜安裝 |
應用領域
工業自動化：
- 作為設備互聯的核心模塊，應用于復雜生產線的控制與監測。
- 提供傳感器、執行器與控制器之間的可靠信號傳輸。
過程控制：
- 廣泛應用于化工、石油、制藥和食品加工等行業。
- 支持關鍵工藝參數的采集與分配，提升系統穩定性。
能源與電力：
- 用于電力設備的監控與控制，例如變電站自動化系統。
- 在能源管理系統中提供數據傳輸與設備協調。
交通與基礎設施：
- 應用于智能交通信號控制、隧道監測和建筑自動化中。
- 提供可靠的通信與控制接口。
測試與診斷：
- 用于測試設備的信號輸入輸出。
- 支持系統調試、故障診斷和性能優化。
英文資料：
The Emerson P188.R2 connector board is a high-performance interface module used in industrial automation, energy management, and communication systems. This type of connector board is typically designed as the core hardware for signal distribution and connection, used to achieve efficient and reliable data transmission and electrical connections between devices.
Product Features
Multi functional connectivity capability:
Support the transmission and processing of multiple signal types (analog signals, digital signals, communication signals).
Provide multi-channel connectivity, suitable for the interconnection needs of complex industrial systems.
Industrial grade reliability:
Using high-quality industrial grade components, suitable for harsh operating environments such as high temperature, high humidity, and vibration.
Capable of anti-interference, ensuring the integrity and stability of signal transmission.
Modular design:
Compact design, easy to integrate into existing systems or control cabinets.
Can be quickly plugged in and out, simplifying installation and maintenance.
Electrical protection:
Built in overcurrent and overvoltage protection circuits to prevent accidental damage.
Support grounding protection to further enhance equipment safety.
Strong compatibility:
Compliant with multiple industrial bus protocols and communication standards.
Can seamlessly connect to various PLCs, DCS, or other control systems.
technical specifications
Parameter description
Model P188.R2
Functional signal connection and allocation
Input voltage range 24V DC or industrial standard range
Working temperature range -20 ° C to+70 ° C
Communication supports RS-485, RS-232, Ethernet, etc
The anti-interference level complies with the IEC 61000 series standards
Interface type: Multi pin industrial connector
Compact size design, suitable for standard control cabinet installation
application area
Industrial automation:
As the core module of device interconnection, it is applied to the control and monitoring of complex production lines.
Provide reliable signal transmission between sensors, actuators, and controllers.
Process control:
Widely used in industries such as chemical, petroleum, pharmaceutical, and food processing.
Support the collection and allocation of key process parameters to enhance system stability.
Energy and Electricity:
Used for monitoring and control of power equipment, such as substation automation systems.
Provide data transmission and equipment coordination in the energy management system.
Transportation and Infrastructure:
Applied in intelligent traffic signal control, tunnel monitoring, and building automation.
Provide reliable communication and control interfaces.
Testing and Diagnosis:
Used for signal input and output of testing equipment.
Support system debugging, fault diagnosis, and performance optimization.

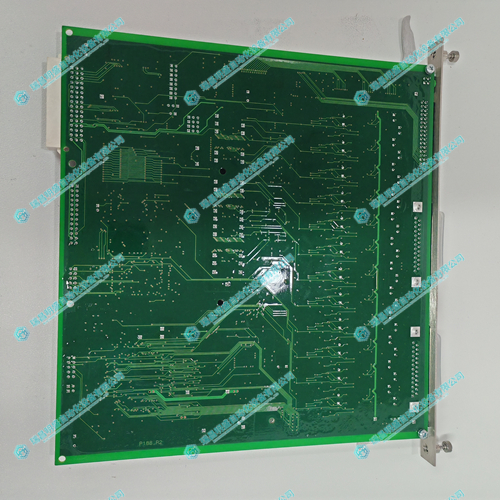

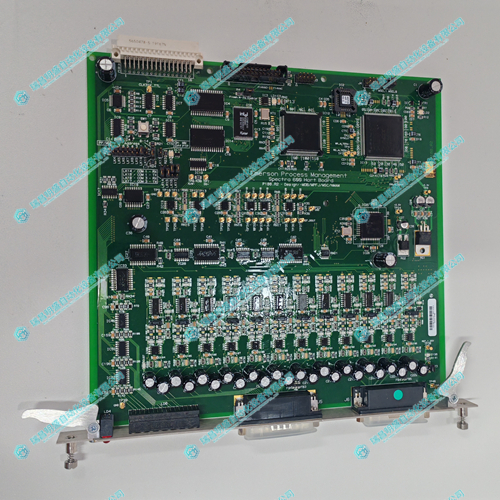

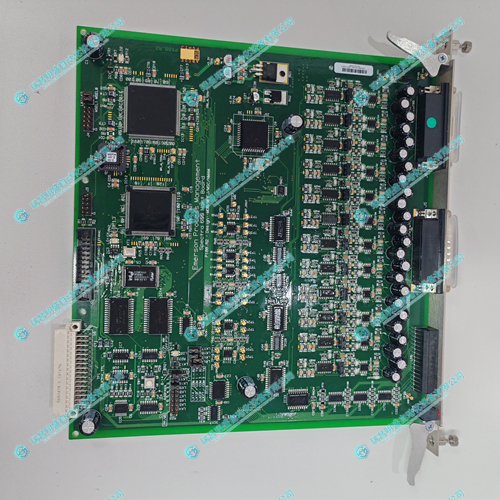

2.產 品 展 示
