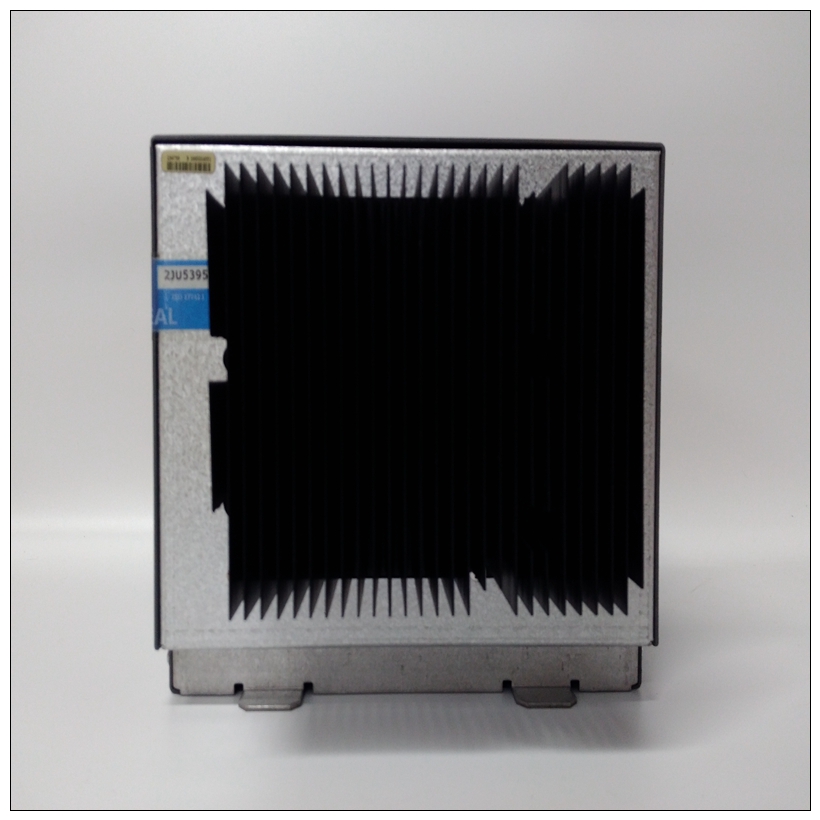

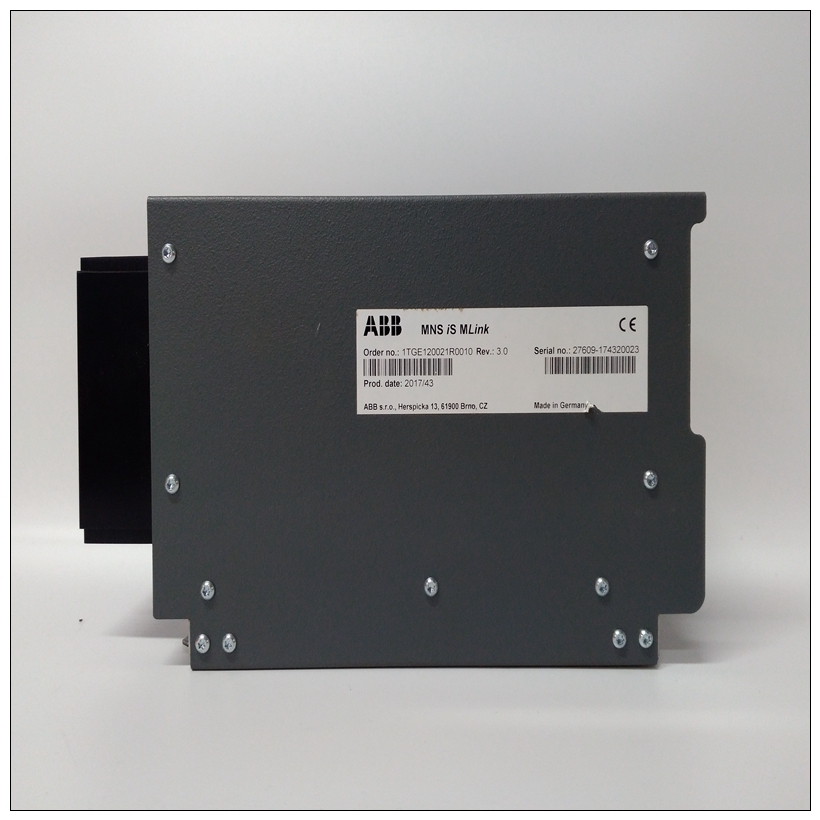

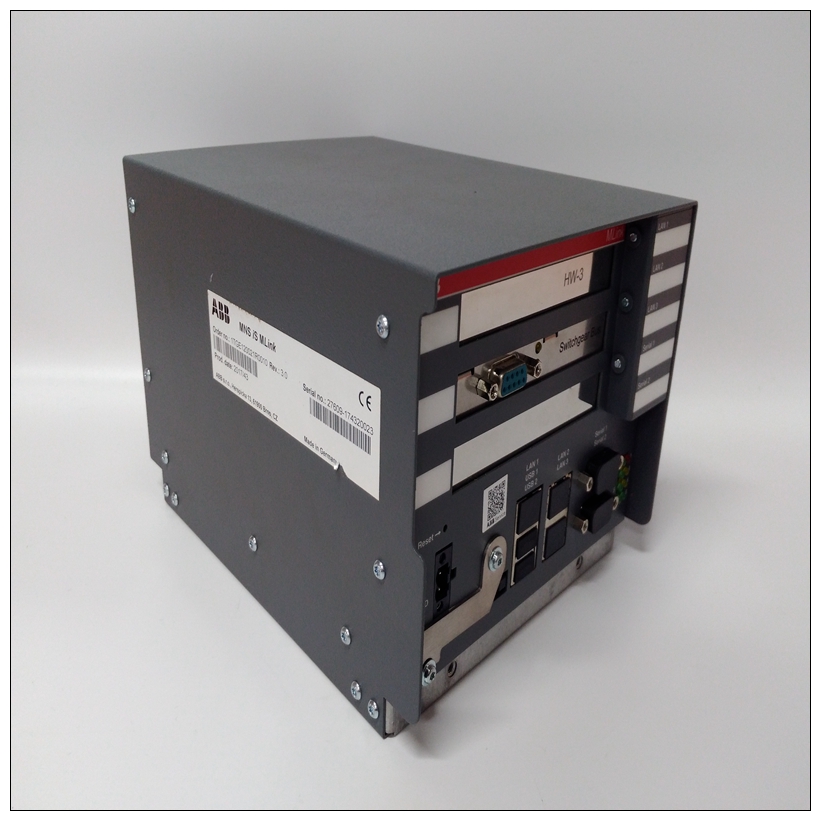

1TGE120021R0010傳感器模塊,ABB產品外觀1TGE120021R0010
本用戶手冊包括兩個主要部分。1、張力電子設備信息-系統和安全信息（第1章）-安裝、調試、維護、運行和故障跟蹤（第2-6章）-技術數據（附錄A）2、有關稱重傳感器安裝設計的信息-垂直力傳感稱重傳感器PFCL 301E（附錄B）-水平力傳感稱重傳感器PFTL 301E（附錄C）-徑向張力計PFRL 101（附錄D）
1TGE120021R0010傳感器模塊-水平力傳感稱重傳感器PFTL 101（附錄E）-垂直力傳感稱重傳感器PFCL 201（附錄F）-水平力傳感稱重傳感器PFTL 201（附錄G）每個附錄都包含有關上述稱重傳感器類型之一的詳細信息用于帶有張力電子裝置PFEA113的卷筒紙張力系統。1.4.1入門您可以使用快速設置序列為基本測量設置系統?？焖僭O(shè)置引導您通過最少的步驟來設置張力電子設備。執行以下部分中的操作：第3.6節分步調試指南?第3.7節執行基本設置?第3.8節執行快速設置（僅適用于一卷或兩卷）對于擴展功能，請使用“執行完整設置”。參見第3.11節執行完整設置。1.4.2調試時保存實際數據和設置調試完成后，您可以使用附錄H中的表格，其中實際可以填寫并保存調試數據和設置，以備將來使用。How to Use this Manual
This user manual comprises two main parts.
1. Information about the Tension Electronics
- System and safety information (Chapter 1)
- Installation, commissioning, maintenance, operation and fault tracing (Chapters 2-6)
- Technical data (Appendix A)
2. Information about Designing the Load Cell Installation
- Vertical-force sensing load cell PFCL 301E (Appendix B)
- Horizontal-force sensing load cell PFTL 301E (Appendix C)
- Radial Tensiometer PFRL 101 (Appendix D)
- Horizontal-force sensing load cell PFTL 101 (Appendix E)
- Vertical-force sensing load cell PFCL 201 (Appendix F)
- Horizontal-force sensing load cell PFTL 201 (Appendix G)
Each appendix contains detailed information about one of the above load cell types when
used in web tension systems with Tension Electronics PFEA113.
1.4.1 Getting Started
You can use the Fast Setup sequence to set up your system for basic measurement.
The Fast Setup guides you through a minimum number of steps to set up the tension electronics.
Perform the actions in the following sections:
? Section 3.6 Step-by-step Commissioning Guide
? Section 3.7 Performing Basic Settings
? Section 3.8 Performing a Fast Setup (Only for One or Two Rolls)
For extended functionality, use “Performing a Complete Setup”.
See Section 3.11 Performing a Complete Setup.
1.4.2 Saving Actual Data and Settings at Commissioning
When commissioning is completed you can use the form in Appendix H, where actual
commissioning data and settings can be filled in and saved for future use.
