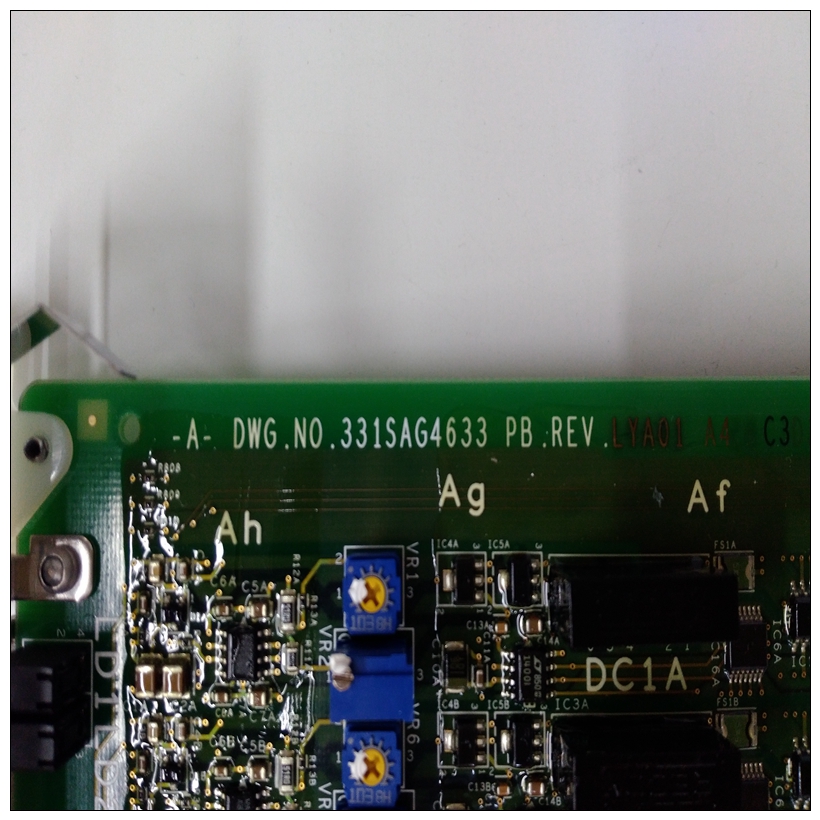

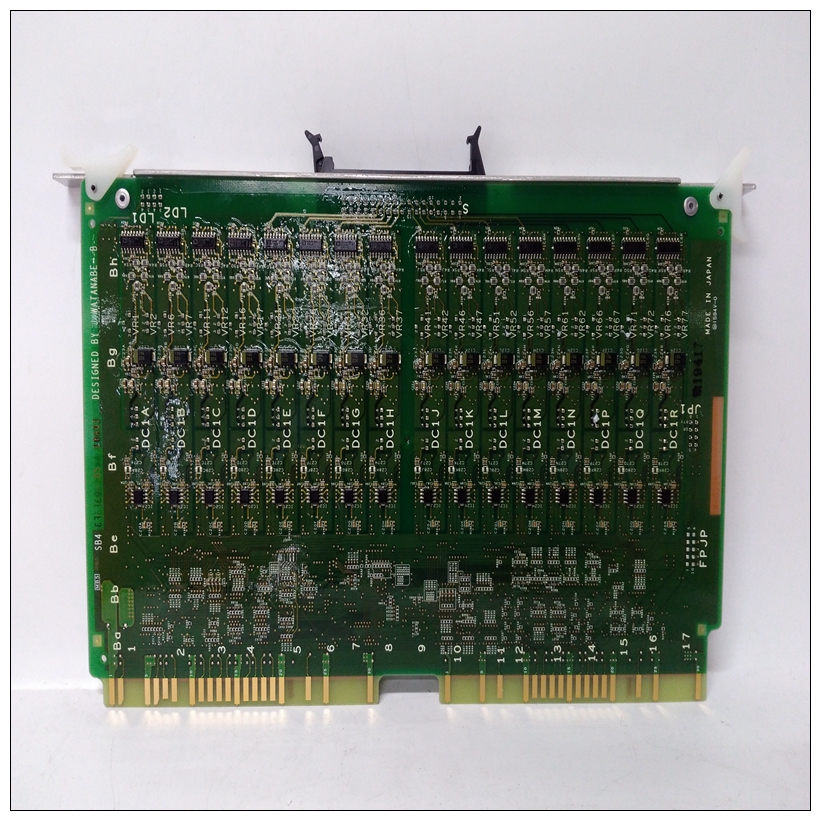

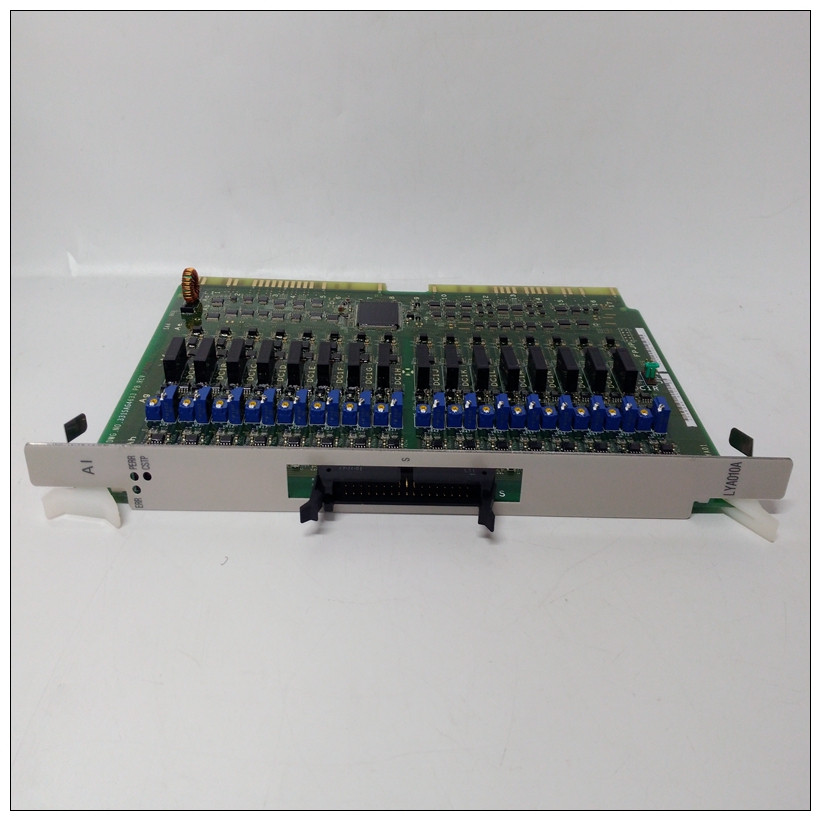

HITACHI LYA010A控制系統,LYA010A使用配置說明
更換HSS模塊：
1.將HSS模塊上的2個鎖緊螺釘旋轉?圈釋放模塊的任何一種方式。
2、抓住螺釘，滑出模塊。
3.設置雙列直插式開關S1至S5和跳線J1至S5將J31設置為正確的設置。表3-1至3-6列出了雙列直插式開關和跳線設置選項。
4、握住面板，將其滑入分配的時隙；推動，直到模塊的后邊緣位于背板連接器中。
5.轉動2個鎖緊螺釘?圈，將模塊鎖定位置模塊鎖定在模塊安裝單元中
HITACHI LYA010A控制系統當鎖緊螺釘上插槽的開口端朝向模塊面板的中心。
終端裝置/模塊更換要更換NTHS03或NTDI01終端單元，請參閱
適用termi nation裝置產品說明中的維修/更換程序部分。要更換NIDI01終端模塊，請參閱維修/更換程序其產品說明中的第節。這些說明包含逐步更換程序和備件清單。
表7-1還列出了終端的保險絲零件號單位。貝利控制公司準備幫助使用和維修其產品。聯系最近的銷售辦事處銷售、應用、安裝、維修、大修請求和維護合同服務。
To replace the HSS module:
1. Turn the 2 latching screws on the HSS module ?-turn
either way to release the module.
2. Grasp the screws and slide out the module.
3. Set dipswitches S1 through S5 and jumpers J1 through
J31 to the proper settings. Tables 3-1 through 3-6 list the
dipswitch and jumper setting options.
4. Hold the module by the faceplate and slide it into its
assigned slot; push until the rear edges of the module are
seated in the backplane connectors.
5. Turn the 2 latching screws ?-turn to lock the modules in
place. The module is locked into the module mounting unit
when the open end of the slots on the latching screws faces the
center of the module faceplate.
TERMINATION UNIT/MODULE REPLACEMENT
To replace the NTHS03 or NTDI01 termination unit, refer to the
repair/replacement procedures section in the applicable termination unit product instruction. To replace the NIDI01 termination module, refer to the repair/replacement procedures
section in its product instruction. These instructions contain
step by step replacement procedures and a spare parts list.
Table 7-1 also lists fuse part numbers for the termination
units.Bailey Controls Company is ready to help in the use and repair
of its products. Contact the nearest sales office to make
requests for sales, applications, installation, repair, overhaul
