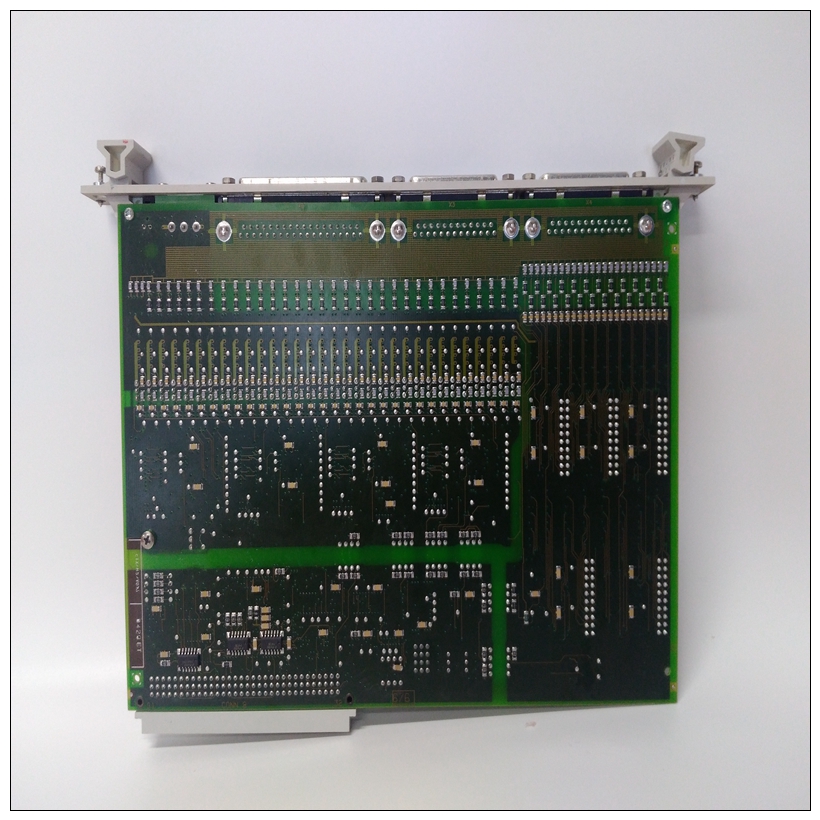

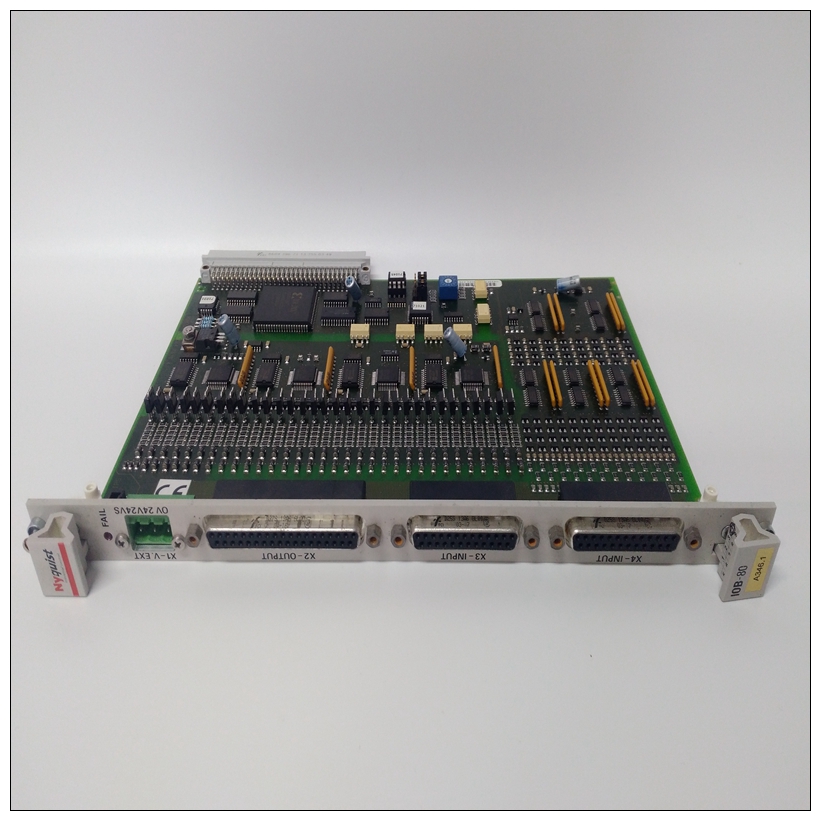

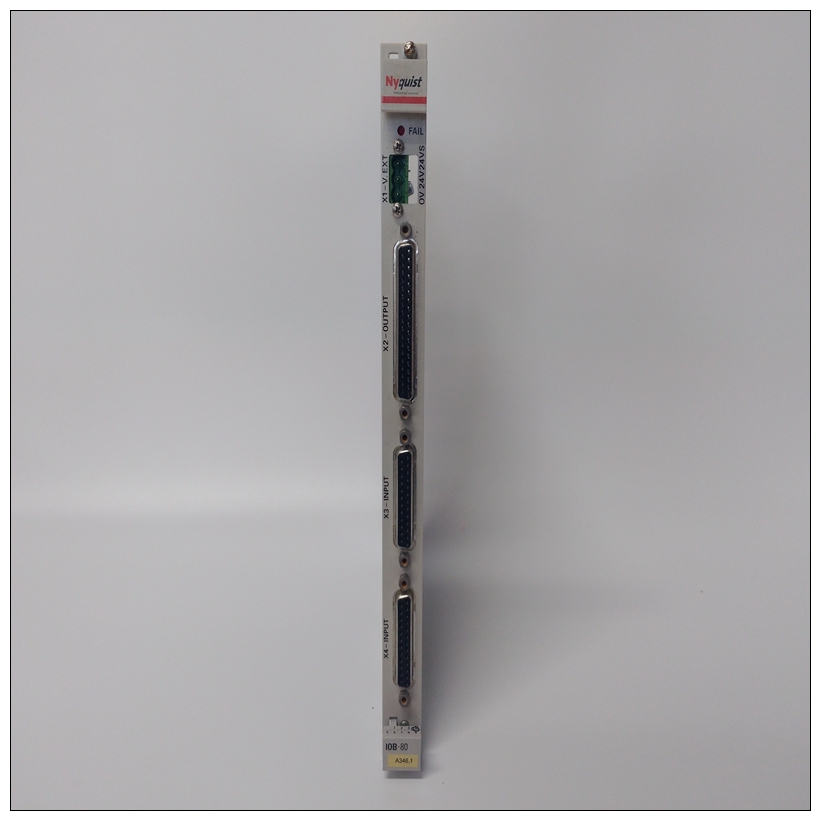

NYQUIST IOB-80串行鏈路卡件,IOB-80配置說明
邊緣連接器清潔要清潔邊緣連接器觸點：
1.使用80%異丙醇（99.5%電子級）和20%蒸餾水的溶劑混合物。
2、用溶劑混合物浸泡無絨布。
3、平行于邊緣連接觸點來回加工布。
4、用蘸有溶劑的干凈布重復上述步驟混合物
5無絨布。
要清潔污損或深度染色的邊緣連接器觸點：
NYQUIST IOB-80串行鏈路卡件1.使用Eberhard Faber（400A）粉色珍珠橡皮擦或同等工具去除污漬。也可以使用玻璃纖維或尼龍拋光刷。
2、在打磨過程中，使用80/20異丙醇/水溶液將靜電放電降至最低。
3、打磨時不要用力過大。僅限使用足夠的力使接觸面發(fā)光。檢查邊緣清潔后的連接器，以確保接觸面沒有損失。清潔陰邊緣連接器
1.使用泡沫棉簽或無絨布包裹在
一塊廢電路板。將拭子或抹布浸泡在電子級異丙醇中。
2、將覆布電路板的拭子插入邊緣然后將其來回移動以清潔觸點。
3、噴灑異丙醇，沖洗邊緣連接器觸點。
4、去除多余的酒精，用壓縮空氣干燥
EDGE CONNECTOR CLEANING
To clean edge connector contacts:
1. Use a solvent mixture of 80% isopropyl alcohol (99.5% electronic grade) and 20% distilled water.
2. Soak a lint free cloth with the solvent mixture.
3. Work the cloth back and forth parallel to the edge connector contacts.
4. Repeat with a clean cloth that is soaked with the solvent
mixture.
5. Dry the edge connector contact area by wiping with a clean
lint free cloth.
To clean tarnished or deeply stained edge connector contacts:
1. Use an Eberhard Faber (400A) pink pearl eraser, or equivalent to remove tarnish or stains. Fiberglass or nylon burnishing brushes may also be used.
2. Minimize electrostatic discharge by using the 80/20 isopropyl alcohol/water solution during burnishing.
3. Do not use excessive force while burnishing. Use only
enough force to shine the contact surface. Inspect the edge
connector after cleaning to assure no loss of contact surface.CLEANING FEMALE EDGE CONNECTORS
1. Use a foam tipped swab or a lint free cloth wrapped over a
piece of scrap circuit board. Soak the swab or cloth in electronic grade isopropyl alcohol.
2. Insert the swab of cloth covered circuit board into edge
connector and work it back and forth to clean the contacts.
3. Rinse the edge connector contacts by spraying with isopropyl alcohol.
4. Remove excess alcohol and dry using compressed air
