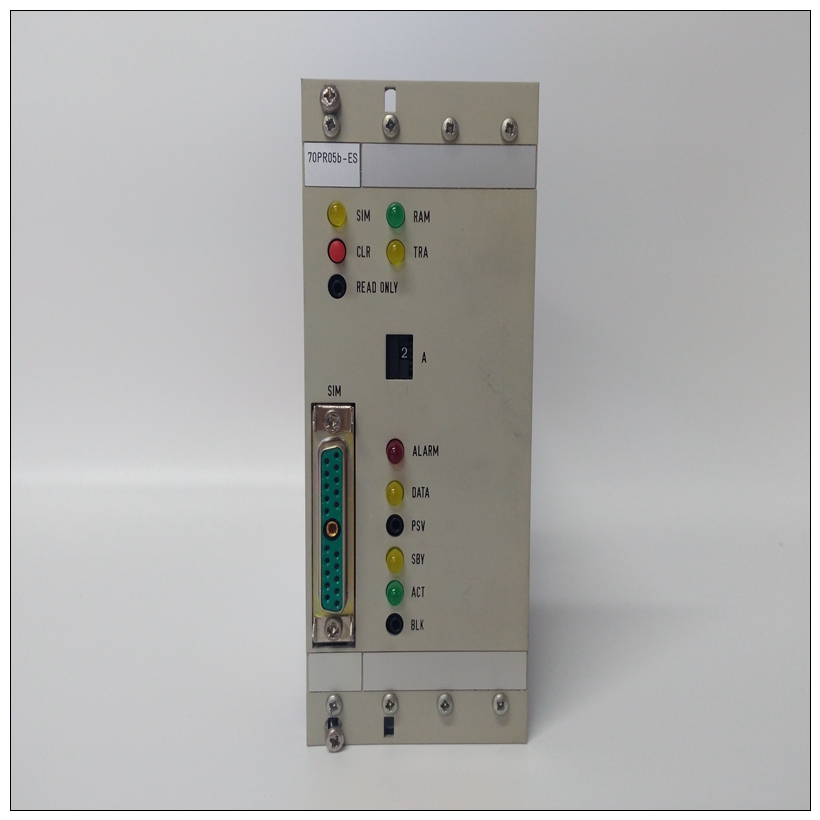

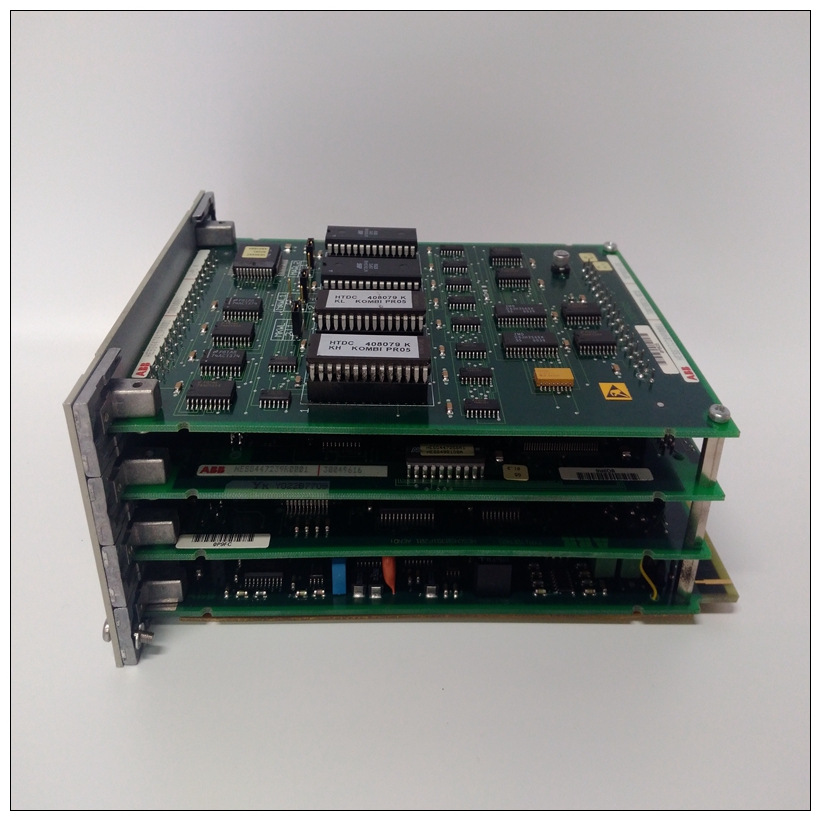

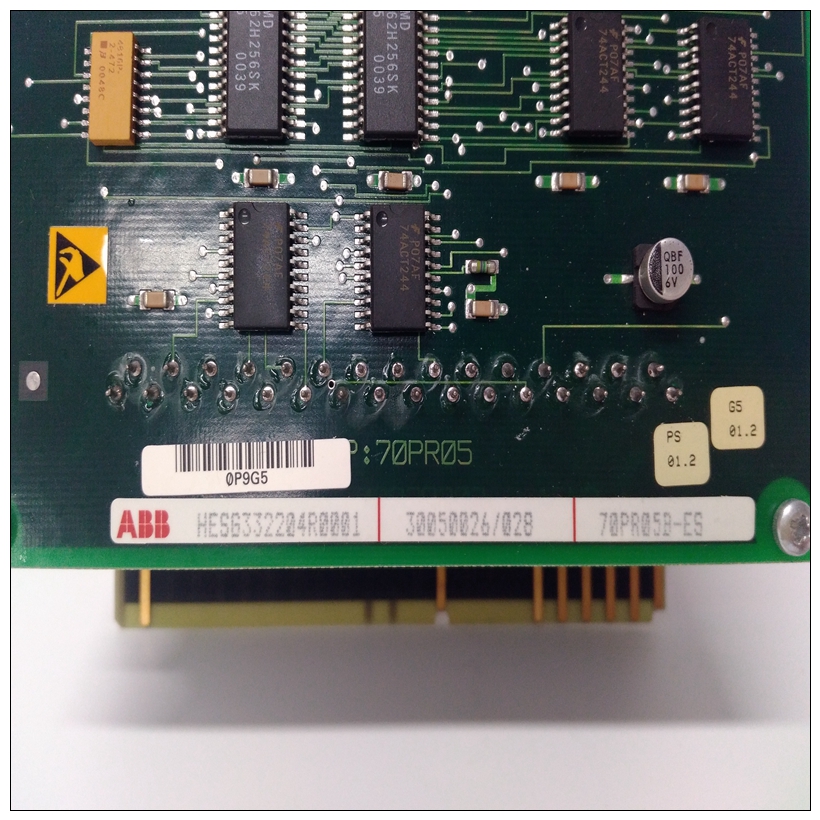

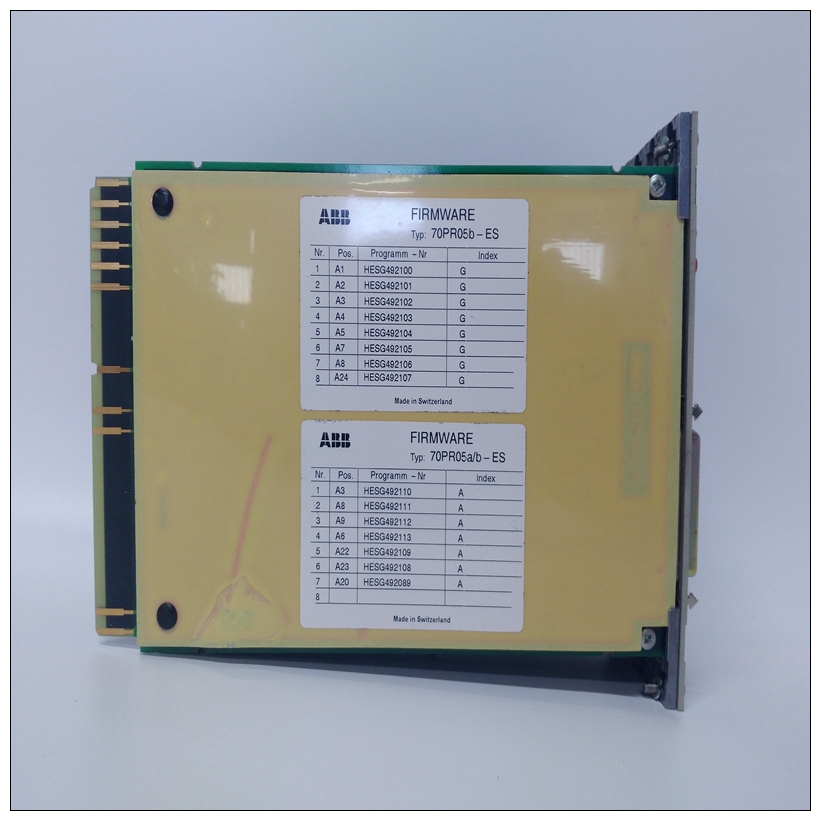

HESG332204R0001卡件70PR05B-ES中文使用說明
雙列直插式開關S1的一極將IMHSS03模塊置于診斷模式（見圖6-2）。第八桿到第五桿雙列直插式開關S2選擇要運行的診斷測試。第八桿是最低有效位（二進制權重1），第五位是最高的有效位（二進制權重8）。測試ID范圍從零到九測試ID值見表6-1。
雙列直插式開關S2的第一極選擇LED顯示模式。這個通過/失敗模式顯示遞增通過的組合和故障計數器。LED 1到4表示數字已成功完成個過程。LED 5到8顯示故障數（見圖6-1）。
HESG332204R0001卡件測試編號模式（雙列直插式開關S2的第一極）顯示LED 1至4上的診斷測試編號。LED五個到七不使用；LED 8為故障LED。測試測試的編號和通過/失敗狀態顯示在測試完成（或失?。H顯示通過測試測試編號。失敗的測試也會打開LED 8以指示失敗。雙列直插式雙列直插式開關S2的第二極選擇錯誤暫停功能。在里面在該模式下，當所選測試檢測到錯誤時，IMHSS03模塊將停止測試執行。失敗測試的數量顯示在IMHSS03 LED上。前面板LED在診斷模式操作期間用于顯示測試結果。模塊復位時，所有八個LED照明接下來，讀取雙列直插式開關，選擇測試執行，結果顯示在LED上。格式LED顯示屏的亮度取決于雙列直插式開關S2的設置第一桿。如果該極設置為零，則測試編號在LED 1到4上顯示。如果測試失敗。測試將重復。如果S2極1設置為1（關），a成功和失敗的運行記錄將顯示在LED。LED 1到4記錄通過，LED 5通過八次故障（見圖6-1）。如果測試失敗選擇錯誤時暫停（S2，第二極打開），狀態LED亮起顯示測試狀態后為紅色。
Pole one of dipswitch S1 puts the IMHSS03 module into diag
nostic mode (see Figure 6-2). Poles eight through five of
dipswitch S2 select the diagnostic test to run. Pole eight is the
least significant bit (binary weight one), pole five is the most
significant bit (binary weight eight). Test IDs range from zero to
nine. Refer to Table 6-1 for test ID values.
Pole one of dipswitch S2 selects the LED display mode. The
pass/fail mode displays a composite of the incrementing pass
and fail counters. LEDs one through four indicate the number
of passes successfully completed. LEDs five through eight dis
play the number of failures (see Figure 6-1).
The test number mode (pole one of dipswitch S2) displays the
diagnostic test number on LEDs one through four. LEDs five
through seven are not used; LED eight is the fail LED. The test
number and the pass/fail status of the test is displayed upon
completion (or failure) of the test. A passing test displays only
the test number. A failing test also turns LED eight on to indi
cate a failure.
Pole two of dipswitch S2 selects the halt on error feature. In
this mode, the IMHSS03 module will halt test execution when
ever the selected test detects an error. The number of the fail
ing test is displayed on the IMHSS03 LEDs.
The front panel LEDs are used during diagnostic mode opera
tion to display test results. On module reset, all eight LEDs
illuminate. Next, the dipswitches are read, the selected test is
executed and the result is displayed on the LEDs. The format
of the LED display depends upon the setting of dipswitch S2
pole one. If this pole is set to zero (on), the test number is dis
played on LEDs one through four. LED eight illuminates if the
test fails. The test will repeat. If S2 pole one is set to one (off), a
running tally of successes and failures will be displayed on the
LEDs. LEDs one through four tally the passes, LEDs five
through eight the failures (see Figure 6-1). If a test fails with
halt-on error selected (S2, pole two on), the status LED turns
red after the test status is displayed.
