Multilin M6P3KH電機管理繼電器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Multilin M6P3KH 是 GE Multilin 系列中的一款電機管理繼電器，專為電機保護和控制設計。它提供多種保護功能，確保電機在運行中的安全和可靠。以下是關于 Multilin M6P3KH 電機管理繼電器的詳細信息：
主要特性和功能
電機保護功能：
- 過電流保護： 檢測電機電流是否超出設定值，提供過電流保護以防止電機損壞。
- 過載保護： 監控電機的負載情況，提供過載保護，防止電機在長時間超負荷運行下受損。
- 過溫保護： 監測電機溫度，防止因過熱導致的損壞或故障。
- 接地故障保護： 檢測電機的接地故障，防止因接地問題引發的安全隱患。
- 堵轉保護： 提供堵轉保護功能，檢測電機是否出現堵轉現象并采取相應措施。
監控與診斷：
- 實時數據監控： 實時監控電機的電流、電壓、功率等參數，確保電機在正常范圍內運行。
- 事件記錄： 記錄保護事件、故障信息和報警記錄，便于故障診斷和維護。
- 自診斷功能： 內置自診斷功能，定期檢查設備的狀態，確保系統正常運行。
通信與集成：
- 多種通信接口： 支持 RS-232、RS-485 等通信接口，便于與其他設備和系統集成。
- 支持標準通信協議： 兼容 Modbus、DNP3 等工業標準通信協議，實現數據的有效傳輸和集成。
用戶界面與配置：
- 顯示屏： 配備 LCD 顯示屏，清晰顯示電機運行狀態和保護參數。
- 配置與編程： 提供用戶友好的界面，便于配置和編程，調整保護設置和運行參數。
- 遠程訪問： 支持遠程訪問和管理，用戶可以通過網絡對設備進行遠程監控和控制。
高可靠性設計：
- 工業級設計： 采用工業級組件，確保設備在惡劣環境下的可靠性和穩定性。
- 冗余設計： 提供冗余電源輸入和信號路徑，確保設備在主系統故障時仍能正常工作。
英文資料：
The Multilin M6P3KH is a motor management relay in the GE Multilin series, designed specifically for motor protection and control. It provides multiple protection functions to ensure the safety and reliability of the motor during operation. The following is detailed information about the Multilin M6P3KH motor management relay:
Main features and functions
Motor protection function:
Overcurrent protection: detects whether the motor current exceeds the set value and provides overcurrent protection to prevent motor damage.
Overload protection: Monitor the load condition of the motor, provide overload protection, and prevent damage to the motor during long-term overload operation.
Over temperature protection: Monitor the temperature of the motor to prevent damage or malfunction caused by overheating.
Ground fault protection: Detect ground faults in motors to prevent safety hazards caused by grounding issues.
Locking protection: Provide locking protection function to detect whether the motor is locked and take corresponding measures.
Monitoring and Diagnosis:
Real time data monitoring: Real time monitoring of motor parameters such as current, voltage, and power to ensure that the motor operates within the normal range.
Event recording: Record protection events, fault information, and alarm records for easy fault diagnosis and maintenance.
Self diagnostic function: Built in self diagnostic function, regularly checks the status of the equipment to ensure the normal operation of the system.
Communication and Integration:
Multiple communication interfaces: Supports RS-232, RS-485 and other communication interfaces, making it easy to integrate with other devices and systems.
Support standard communication protocols: compatible with industrial standard communication protocols such as Modbus and DNP3, achieving effective data transmission and integration.
User interface and configuration:
Display screen: Equipped with an LCD display screen, it clearly displays the motor operation status and protection parameters.
Configuration and Programming: Provides a user-friendly interface for easy configuration and programming, adjusting protection settings and operating parameters.
Remote Access: Supports remote access and management, allowing users to remotely monitor and control devices through the network.
High reliability design:
Industrial grade design: using industrial grade components to ensure the reliability and stability of equipment in harsh environments.
Redundant design: Provide redundant power input and signal paths to ensure that the equipment can still operate normally in the event of a main system failure.

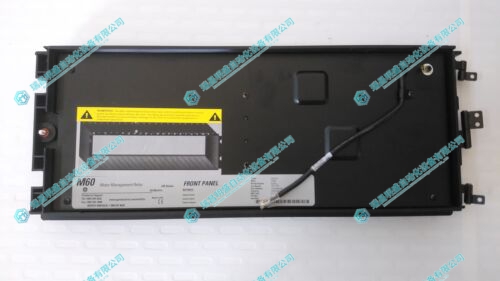

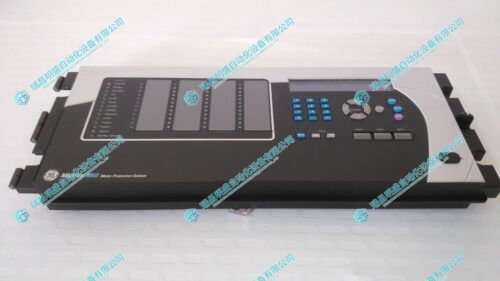

2.產 品 展 示
