Multilin BEHPSCAX電機管理器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Multilin BEHPSCAX 是 GE Multilin 系列中的一款電機管理器，設計用于提供高級的電機保護和控制功能。這款設備針對電機保護系統的需求，提供了綜合的保護、監控和控制能力。以下是關于 Multilin BEHPSCAX 電機管理器的詳細信息：
主要特性和功能
電機保護功能：
- 過電流保護： 提供針對過電流的保護，防止電機在電流過高時受損。
- 過載保護： 實現過載保護，防止電機在負荷超出設計范圍時運行。
- 過溫保護： 監測電機溫度，提供過溫保護以防止過熱導致的損壞。
- 接地故障保護： 檢測接地故障情況，防止電機因接地問題引發的安全隱患。
- 堵轉保護： 監測電機的轉速和運行狀態，提供堵轉保護以防止電機長時間在堵轉狀態下運行。
監控與診斷：
- 實時監控： 實時監控電機的電流、電壓、功率、轉速等參數，確保電機在安全范圍內運行。
- 事件記錄： 記錄保護事件和故障信息，便于故障分析和維護。
- 自診斷功能： 內置自診斷功能，定期檢查電機管理器的運行狀態，確保設備正常工作。
通信與集成：
- 多種通信接口： 支持 RS-232、RS-485、以太網等多種通信接口，方便與其他設備和系統的集成。
- 支持標準通信協議： 支持 Modbus、DNP3 等工業標準通信協議，確保數據傳輸?shù)募嫒菪浴?/li>
用戶界面與配置：
- 圖形化顯示： 配備 LCD 顯示屏，直觀顯示電機運行狀態和保護參數。
- 易于配置： 提供用戶友好的配置界面，便于設置和調整電機保護參數。
- 遠程訪問： 支持遠程訪問和管理，用戶可以通過網絡對設備進行遠程監控和配置。
高可靠性設計：
- 工業級設計： 采用工業級組件和設計，確保設備在惡劣環境下的穩定性和可靠性。
- 冗余設計： 提供冗余電源輸入和信號路徑，確保在主系統故障時仍能正常運行。
應用領域
- 電力系統： 適用于發電廠、變電站和配電網絡中的電機保護和控制。
- 工業自動化： 用于工業自動化系統中的電機保護和數據采集，確保電機的安全運行。
- 制造業： 應用于制造業中的電機驅動和控制系統，提升設備的可靠性和安全性
英文資料：
Multilin BEHPSCAX is a motor manager in the GE Multilin series, designed to provide advanced motor protection and control functions. This device provides comprehensive protection, monitoring, and control capabilities for the needs of motor protection systems. The following is detailed information about the Multilin BEHPSCAX motor manager:
Main features and functions
Motor protection function:
Overcurrent protection: Provides protection against overcurrent to prevent damage to the motor when the current is too high.
Overload protection: Implement overload protection to prevent the motor from running when the load exceeds the design range.
Over temperature protection: Monitor motor temperature and provide over temperature protection to prevent damage caused by overheating.
Ground fault protection: detect ground faults and prevent safety hazards caused by grounding issues in the motor.
Lock rotor protection: Monitor the speed and operating status of the motor, provide lock rotor protection to prevent the motor from running in a locked rotor state for a long time.
Monitoring and Diagnosis:
Real time monitoring: Real time monitoring of motor parameters such as current, voltage, power, and speed to ensure that the motor operates within a safe range.
Event recording: Record protection events and fault information for easy fault analysis and maintenance.
Self diagnostic function: Built in self diagnostic function, regularly check the operating status of the motor manager to ensure that the equipment is working properly.
Communication and Integration:
Multiple communication interfaces: Supports various communication interfaces such as RS-232, RS-485, Ethernet, etc., facilitating integration with other devices and systems.
Support standard communication protocols: Supports industrial standard communication protocols such as Modbus and DNP3 to ensure compatibility in data transmission.
User interface and configuration:
Graphic display: Equipped with an LCD screen, it intuitively displays the motor's operating status and protection parameters.
Easy to configure: Provides a user-friendly configuration interface for setting and adjusting motor protection parameters.
Remote Access: Supports remote access and management, allowing users to remotely monitor and configure devices through the network.
High reliability design:
Industrial grade design: Using industrial grade components and designs to ensure the stability and reliability of equipment in harsh environments.
Redundant design: Provide redundant power input and signal paths to ensure normal operation in the event of a main system failure.
application area
Power system: suitable for motor protection and control in power plants, substations, and distribution networks.
Industrial automation: used for motor protection and data acquisition in industrial automation systems to ensure the safe operation of motors.
Manufacturing industry: motor drive and control systems applied in the manufacturing industry to enhance the reliability and safety of equipment

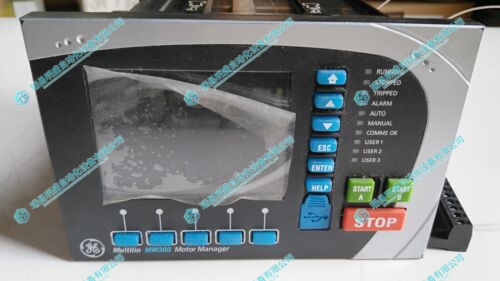

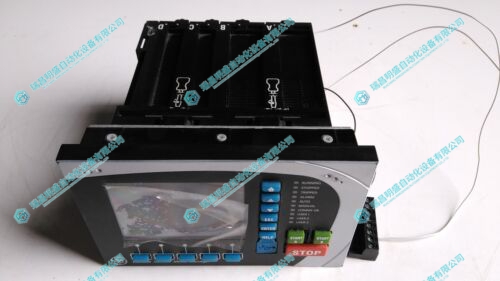

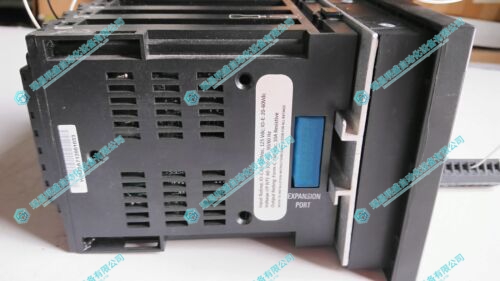

2.產 品 展 示
3.其他產品
ABB DDC779BE02 Distributed module
ABB DSAI130A 3BSE018292R1 analog input board
ABB DSPU131 3BSE000355R1 unit Interface board module
5.更多庫存型號
| SC722A-001-PM72004 | SC726A-001-PM72013 | SCE903AN-002-01 |
| SC724A001 | SC722A-001-PM72032 | SCE903N3-000-01 |
| SC722A-001-PM72005 | SC723B001-01 | SCE903A3-002-01 |
| SC725A-001-01 | SC722A-001-PM72008 | SCE905-001-00 |
| SC722A-001-PM72036 | SC724A-001 | SCE955NN-501-01 |
| SC725A001 | SC724A-001-PM72012 | SCE905NN-001-01 |
| SC726A-001 | SC726A-001-PM72009 | SCE904-002-01 A |
