Multilin GEH1SCAD電機管理繼電器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Multilin GEH1SCAD 是 GE（General Electric）公司的一款電機管理繼電器，屬于 Multilin 系列。這個繼電器主要用于電機保護和監控，提供各種保護功能以確保電機的安全運行。以下是關于 GEH1SCAD 電機管理繼電器的詳細信息：
主要特性和功能
電機保護功能：
- 過載保護： 監控電機的電流，防止因過載而導致的電機損壞。
- 堵轉保護： 監測電機啟動時的電流，防止因電機堵轉造成的損壞。
- 斷相保護： 檢測電源缺相或不平衡，防止因斷相或相不平衡對電機造成損壞。
- 過電壓/欠電壓保護： 保護電機免受電壓異常的影響。
- 短路保護： 通過檢測電流異常保護電機免受短路損壞。
監控與診斷功能：
- 實時監控： 實時顯示電機的運行狀態，包括電流、電壓和功率等參數。
- 故障診斷： 提供詳細的故障記錄和診斷信息，幫助快速定位和修復問題。
- 數據記錄： 存儲運行歷史數據和事件記錄，用于后續分析和審計。
通信功能：
- 通信協議： 支持標準工業通信協議，如 Modbus、DNP3 和 IEC 61850，方便與上級控制系統或遠程監控系統集成。
- 遠程監控： 通過通信接口實現遠程訪問、配置和監控，增強系統的靈活性和便利性。
用戶界面：
- 顯示屏： 配備 LCD 顯示屏，用于實時顯示電機參數、狀態和故障信息。
- 操作界面： 提供用戶友好的操作界面，便于設置和調整保護參數。
應用領域：
- 工業自動化： 在各種工業環境中用于電機的保護和控制，確保設備的可靠運行。
- 發電和配電系統： 適用于發電機組、變電站和配電系統中的電機保護。
- 水處理和泵站： 用于水處理設施和泵站中的電機保護，防止因故障導致的設備停機和損壞。
英文資料：
Multilin GEH1SCAD is a motor management relay from General Electric, belonging to the Multilin series. This relay is mainly used for motor protection and monitoring, providing various protection functions to ensure the safe operation of the motor. The following is detailed information about the GEH1SCAD motor management relay:
Main features and functions
Motor protection function:
Overload protection: Monitor the current of the motor to prevent motor damage caused by overload.
Locking protection: Monitor the current during motor start-up to prevent damage caused by motor stalling.
Phase loss protection: detects power supply phase loss or imbalance to prevent damage to the motor caused by phase loss or imbalance.
Overvoltage/undervoltage protection: protects the motor from the effects of abnormal voltage.
Short circuit protection: By detecting abnormal current, the motor is protected from short circuit damage.
Monitoring and diagnostic functions:
Real time monitoring: Real time display of the motor's operating status, including parameters such as current, voltage, and power.
Fault diagnosis: Provide detailed fault records and diagnostic information to help quickly locate and repair problems.
Data recording: Store historical data and event records for subsequent analysis and auditing.
Communication function:
Communication Protocol: Supports standard industrial communication protocols such as Modbus, DNP3, and IEC 61850, facilitating integration with higher-level control systems or remote monitoring systems.
Remote monitoring: Implementing remote access, configuration, and monitoring through communication interfaces to enhance the flexibility and convenience of the system.
User interface:
Display screen: Equipped with an LCD display screen for real-time display of motor parameters, status, and fault information.
Operating Interface: Provides a user-friendly interface for setting and adjusting protection parameters.
Application areas:
Industrial automation: Used for motor protection and control in various industrial environments to ensure reliable operation of equipment.
Power generation and distribution system: suitable for motor protection in generator sets, substations, and distribution systems.
Water treatment and pumping stations: used for motor protection in water treatment facilities and pumping stations to prevent equipment shutdown and damage caused by malfunctions.

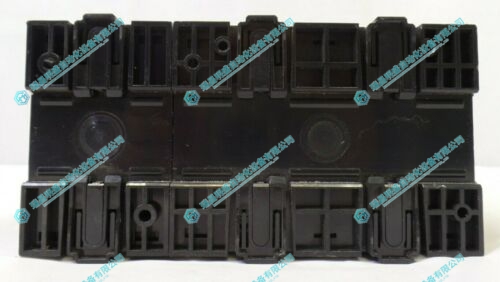

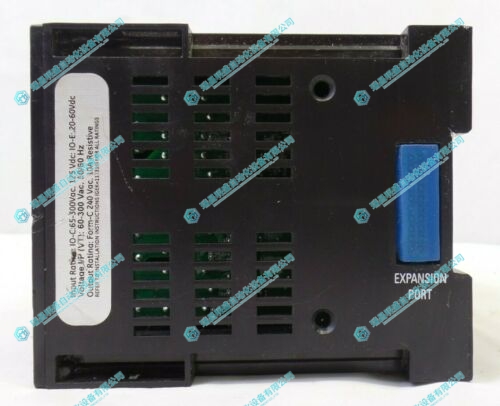

2.產 品 展 示
