Multilin F60K03HKHF8LH6饋線繼電器
1.產 品 資 料 介 紹：
中文資料：
Multilin F60K03HKHF8LH6 是 GE Multilin 系列中的饋線繼電器，設計用于為電力系統中的饋線提供保護和控制。饋線繼電器主要用于檢測饋線上的故障并提供相應的保護措施，確保系統的安全和可靠運行。以下是該繼電器的詳細信息及其應用領域：
主要功能和特點：
保護功能：
- 過電流保護：檢測饋線上的過電流情況，并采取相應的保護措施，如斷開電路以防止設備損壞。
- 接地故障保護：檢測饋線上的接地故障，提供接地故障報警和切斷電路功能。
- 過電壓和欠電壓保護：監控饋線電壓，確保電壓在安全范圍內。
- 頻率保護：監控饋線頻率，防止頻率異常對設備造成影響。
監控和控制：
- 實時監控：提供實時的饋線狀態監控，幫助用戶了解電力系統的運行狀況。
- 數據記錄：記錄電力系統的運行數據和故障信息，支持故障診斷和系統優化。
- 遠程控制：支持遠程操作和配置，方便用戶進行系統管理和維護。
通訊能力：
- 多種通訊協議：支持多種通訊協議，如Modbus、DNP3、IEC 61850，便于與其他系統進行集成。
- 數據接口：提供多種數據接口，方便與上位系統進行數據交換和集成。
配置和安裝：
- 靈活配置：支持多種配置選項，滿足不同應用場景的需求。
- 易于安裝：設計考慮到易于安裝和維護，簡化了設備的安裝過程。
應用領域：
變電站：
- 饋線保護：為變電站中的饋線提供過電流、接地故障和電壓保護，確保變電站的安全運行。
- 母線保護：支持變電站母線的保護和監控，防止母線故障對系統的影響。
發電廠：
- 發電機組保護：保護發電廠中饋線的安全運行，確保發電機組的穩定性。
- 電力分配：管理和保護發電廠中的電力分配系統，優化電力輸出和分配。
配電系統：
- 配電線路保護：為配電線路提供過電流、接地故障和電壓保護，確保配電系統的穩定性。
- 負荷管理：監控和管理配電系統中的負荷，防止過載和設備損壞。
工業設施：
- 工廠電力保護：為工廠電力系統中的饋線提供保護，防止設備故障和生產中斷。
- 自動化系統：保護工業自動化系統中的饋線，確保生產線的安全和效率。
新能源發電：
- 風電場：監控和保護風電場中的饋線，確保風力發電系統的可靠性。
- 太陽能電站：為太陽能電站中的饋線提供保護，優化太陽能發電系統的性能。
交通運輸：
- 鐵路系統：保護鐵路電力系統中的饋線，確保鐵路設施的正常運行。
- 地鐵系統：為地鐵系統中的饋線提供保護，確保地鐵運營的安全性。
英文資料：
Multilin F60K03HKHF8LH6 is a feeder relay in the GE Multilin series, designed to provide protection and control for feeders in power systems. Feedline relays are mainly used to detect faults on feeders and provide corresponding protective measures to ensure the safe and reliable operation of the system. The following is the detailed information and application areas of the relay:
Main functions and features:
Protection function:
Overcurrent protection: Detect the overcurrent situation on the feeder and take corresponding protective measures, such as disconnecting the circuit to prevent equipment damage.
Ground fault protection: detects ground faults on the feeder line, provides ground fault alarm and circuit disconnection functions.
Overvoltage and undervoltage protection: Monitor the feeder voltage to ensure that the voltage is within a safe range.
Frequency protection: Monitor the feeder frequency to prevent abnormal frequency from affecting the equipment.
Monitoring and Control:
Real time monitoring: Provides real-time feeder status monitoring to help users understand the operation status of the power system.
Data recording: Record the operation data and fault information of the power system, support fault diagnosis and system optimization.
Remote control: supports remote operation and configuration, making it convenient for users to manage and maintain the system.
Communication ability:
Multiple communication protocols: Supports multiple communication protocols such as Modbus, DNP3, IEC 61850, making it easy to integrate with other systems.
Data interface: Provides multiple data interfaces to facilitate data exchange and integration with the upper system.
Configuration and installation:
Flexible configuration: Supports multiple configuration options to meet the needs of different application scenarios.
Easy to install: The design considers ease of installation and maintenance, simplifying the installation process of the equipment.
Application areas:
Substation:
Feedline protection: Provides overcurrent, ground fault, and voltage protection for feeders in substations to ensure safe operation of the substations.
Busbar protection: supports the protection and monitoring of substation busbars to prevent the impact of busbar faults on the system.
power plant:
Generator set protection: protects the safe operation of feeders in power plants and ensures the stability of generator sets.
Power distribution: Manage and protect the power distribution system in power plants, optimize power output and distribution.
Power distribution system:
Distribution line protection: provides overcurrent, ground fault, and voltage protection for distribution lines to ensure the stability of the distribution system.
Load management: Monitor and manage the load in the distribution system to prevent overload and equipment damage.
Industrial facilities:
Factory power protection: provides protection for feeders in the factory power system to prevent equipment failures and production interruptions.
Automation system: Protect the feeders in industrial automation systems to ensure the safety and efficiency of production lines.
New energy generation:
Wind farm: Monitor and protect the feeders in the wind farm to ensure the reliability of the wind power generation system.
Solar power station: provides protection for the feeders in the solar power station and optimizes the performance of the solar power generation system.
Transportation:
Railway system: Protect the feeders in the railway power system to ensure the normal operation of railway facilities.
Subway system: Provide protection for the feeders in the subway system to ensure the safety of subway operations.

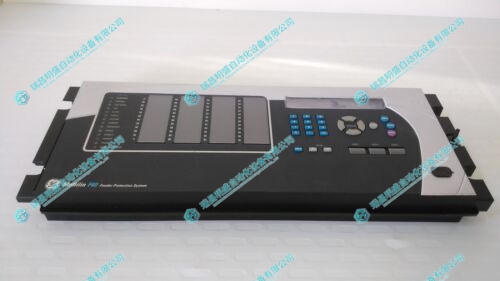

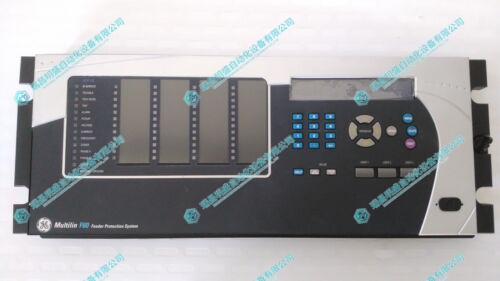

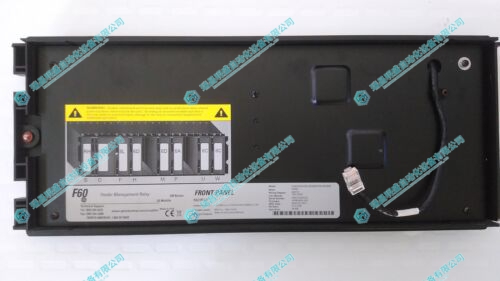

2.產 品 展 示
