Multilin 1228-0003-D7模擬微板
1.產 品 資 料 介 紹：
中文資料：
Multilin 1228-0003-D7 模擬微板 是 GE Multilin 系列中的一個關鍵模塊，用于提供模擬信號處理和轉換功能。該模塊通常集成在電力保護和控制系統中，負責處理和轉換來自各種傳感器和儀器的模擬信號。以下是關于 Multilin 1228-0003-D7 模擬微板的詳細信息：
主要功能和特點
模擬信號處理：
- 信號轉換：將模擬信號轉換為數字信號，供控制系統和保護裝置進行進一步處理和分析。
- 信號放大：對低電平模擬信號進行放大，提高信號的可讀性和準確性。
高精度和穩定性：
- 高精度轉換：提供高精度的模擬到數字轉換，確保信號處理的準確性。
- 穩定性：設計確保在各種環境條件下的信號處理穩定性，減少信號干擾和噪聲。
靈活配置：
- 多通道設計：支持多個模擬輸入通道，能夠同時處理多個信號源。
- 可編程參數：用戶可以根據具體需求配置不同的參數和設置，適應不同的應用場景。
兼容性和集成：
- 標準接口：采用標準化的接口和協議，便于與其他保護裝置和控制系統集成。
- 與其他模塊兼容：可以與 GE Multilin 系列中的其他模塊無縫配合使用，形成完整的系統解決方案。
自我診斷和故障檢測：
- 故障診斷：具備自我診斷功能，能夠檢測和報告模塊內部的故障。
- 狀態監測：實時監測模塊的運行狀態，確保信號處理的可靠性。
應用領域
電力保護和控制系統：
- 模擬信號輸入：用于處理電力系統中的模擬信號，如電流、電壓、溫度等，供保護和控制設備使用。
- 數據轉換：將來自傳感器的模擬信號轉換為數字信號，以便進行進一步的分析和處理。
工業自動化：
- 信號采集：在工業自動化系統中用于采集和處理來自各種傳感器的模擬信號，提高系統的控制和監測能力。
- 過程監控：實時監控工業過程中的各種物理量，如壓力、流量、溫度等，確保生產過程的穩定性和安全性。
變電站和配電網：
- 數據處理：在變電站和配電網中處理和轉換模擬信號，支持系統的保護、控制和監測功能。
- 系統集成：與變電站中的其他保護和控制設備集成，提供綜合的系統解決方案。
智能電網：
- 信號分析：在智能電網中處理來自各種監測設備的模擬信號，支持實時數據分析和決策。
- 系統優化：通過高精度的信號處理和轉換，優化電網的運行和維護。
結論
Multilin 1228-0003-D7 模擬微板 作為 GE Multilin 系列中的重要組件，通過其高精度的模擬信號處理和轉換功能，為電力保護和控制系統、工業自動化、變電站和智能電網等領域提供了可靠和高效的解決方案。它在確保信號處理的準確性和穩定性方面發揮了關鍵作用，提高了系統的整體性能和可靠性。
英文資料：
The Multilin 1228-0003-D7 analog microplate is a key module in the GE Multilin series, used to provide analog signal processing and conversion functions. This module is typically integrated into power protection and control systems, responsible for processing and converting analog signals from various sensors and instruments. The following is detailed information about the Multilin 1228-0003-D7 analog microplate:
Main functions and features
Analog signal processing:
Signal conversion: Convert analog signals into digital signals for further processing and analysis by control systems and protection devices.
Signal amplification: Amplify low-level analog signals to improve their readability and accuracy.
High precision and stability:
High precision conversion: Provides high-precision analog-to-digital conversion to ensure the accuracy of signal processing.
Stability: The design ensures signal processing stability under various environmental conditions, reducing signal interference and noise.
Flexible configuration:
Multi channel design: supports multiple analog input channels and can process multiple signal sources simultaneously.
Programmable parameters: Users can configure different parameters and settings according to specific needs to adapt to different application scenarios.
Compatibility and integration:
Standard Interface: Adopting standardized interfaces and protocols to facilitate integration with other protective devices and control systems.
Compatible with other modules: It can seamlessly work with other modules in the GE Multilin series to form a complete system solution.
Self diagnosis and fault detection:
Fault diagnosis: It has self diagnostic function and can detect and report internal faults of the module.
Status monitoring: Real time monitoring of the operating status of the module to ensure the reliability of signal processing.
application area
Power protection and control system:
Analog signal input: used to process analog signals in power systems, such as current, voltage, temperature, etc., for use by protection and control equipment.
Data conversion: Convert analog signals from sensors into digital signals for further analysis and processing.
Industrial automation:
Signal acquisition: Used in industrial automation systems to collect and process analog signals from various sensors, improving the system's control and monitoring capabilities.
Process monitoring: Real time monitoring of various physical quantities in industrial processes, such as pressure, flow rate, temperature, etc., to ensure the stability and safety of the production process.
Substation and distribution network:
Data processing: Processing and converting analog signals in substations and distribution networks to support system protection, control, and monitoring functions.
System integration: Integrate with other protection and control devices in the substation to provide a comprehensive system solution.
Smart grid:
Signal analysis: Processing simulated signals from various monitoring devices in the smart grid, supporting real-time data analysis and decision-making.
System optimization: Optimize the operation and maintenance of the power grid through high-precision signal processing and conversion.
conclusion
The Multilin 1228-0003-D7 analog microplate, as an important component in the GE Multilin series, provides reliable and efficient solutions for fields such as power protection and control systems, industrial automation, substations, and smart grids through its high-precision analog signal processing and conversion functions. It plays a crucial role in ensuring the accuracy and stability of signal processing, improving the overall performance and reliability of the system.

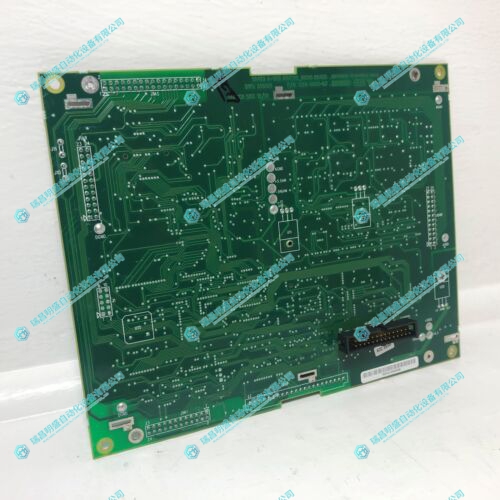

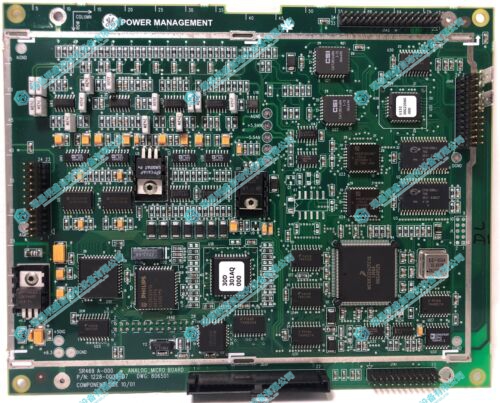

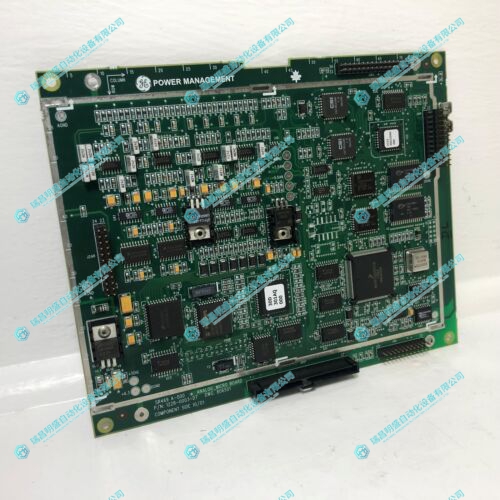

2.產 品 展 示
