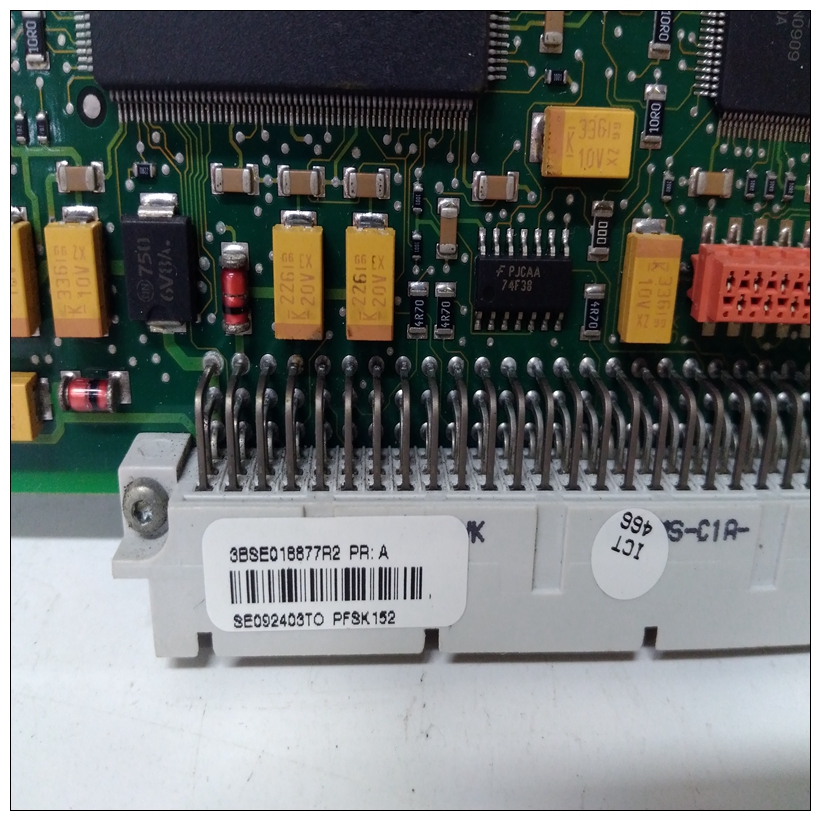

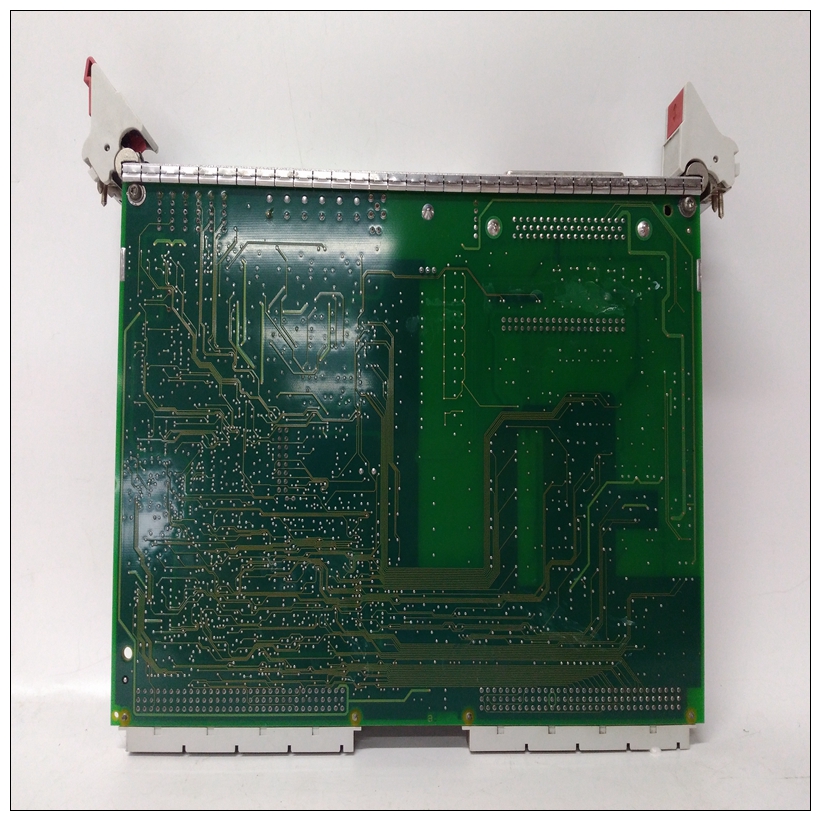

3BSE018877R2輸入特性模件,3BSE018877R2產品外觀
清除參數自動調諧（TOP）錯誤
狀態和不良輸出質量，而不執行另一個自動?自動調整參數，發送任何新的解調器增益值至IMHSS03模塊。
如果在調諧過程中發生錯誤，則之前的值（在程序已啟動）顯示為增益值。如果
當增益處于最高或最低時，會發生錯誤值時，該錯誤可能是超出范圍的情況。如果這個
發生這種情況時，控制器增益保持在超出范圍的值指示由于超出范圍而發生錯誤條件校準自動調諧（功能代碼55）4-4 I-E96-322A?初始校準（功能代碼55）使用HSS校準LVDT變壓器和執行器模塊
3BSE018877R2輸入特性模件，MFP模塊必須與HSS模塊和以下條件必須滿足：
?解調器增益調諧必須完成。
?渦輪機離線。
?伺服閥或I/H轉換器（用于渦輪機液壓系統）必須處于控制位置并正常工作正確地
?多功能處理器模塊的功能代碼為55在其配置中。
?校準模式啟用必須設置為禁用，=0。要校準HSS模塊：
1.驗證S9中指定的塊地址是否包含適當?shù)男?zhǔn)周期數（從1到8）。
NOTE: To clear the automatic tuning of parameters (ATOP) error
status and bad output qualities without performing another auto
matic tuning of parameters, send any new demodulator gain value
to the IMHSS03 module.
If an error occurs during tuning, the previous value (before the
ATOP procedure was initiated) is displayed as the gain value. If
the error occurs while the gain is at the highest or the lowest
value, the error is probably an out of range condition. If this
happens, the controller gain remains at the out of range value
to indicate that the error occurred because of an out of range
condition.CALIBRATION
AUTOMATIC TUNING (FUNCTION CODE 55)
4 - 4
I-E96-322A
?
Initial Calibration (Function Code 55)
To calibrate the LVDT transformer and actuator with the HSS
module, the MFP module must be communicating with the
HSS module and the following conditions must be met:
?
Demodulator gain tuning must be complete.
?
The turbine is off-line.
?
The servo valve or I/H converter (for turbine hydraulic sys
tem) must be in the controlling position and functioning
properly.
?
The multi-function processor module has function code 55
in its configuration.
?
The calibrate mode enable must be set to disable,
<S11> = 0.
To calibrate the HSS module:
1. Verify that the block address specified in S9 contains the
proper number of calibration cycles (from 1 to 8).
