Multilin BABF2G0LOSHE控制器
1.產 品 資 料 介 紹：
中文資料：
Multilin BABF2G0LOSHE 控制器是 GE Multilin 系列中的一款控制器，專門用于提供綜合的保護、控制和監測功能。它廣泛應用于電力系統的管理和控制，尤其是在變電站、配電網絡和工業電力系統中。以下是關于該控制器的詳細信息：
主要功能和特點
保護功能
- 過流保護：包括瞬時、定時限和反時限過流保護，確保在短路或過載情況下快速響應。
- 接地故障保護：提供接地故障檢測和保護，防止接地故障對系統的影響。
- 電壓保護：監測電力系統的電壓，包括過壓和欠壓保護，保護設備免受電壓異常的損害。
- 頻率保護：提供頻率過高和過低保護，確保系統在正常頻率范圍內運行。
控制功能
- 自動重合閘：支持自動重合閘功能，當故障被清除后自動恢復供電，增加系統的可靠性。
- 斷路器控制：控制斷路器的操作，如開關操作和故障隔離，提升系統的靈活性和安全性。
監測和診斷
- 實時數據監測：監測電流、電壓、功率等參數，實時跟蹤系統的運行狀態。
- 事件記錄和分析：記錄故障和系統事件，提供詳細的數據和時間戳，有助于故障排查和分析。
- 波形捕捉：捕捉和記錄電氣波形，幫助深入分析系統事件和故障原因。
通信和接口
- 支持的通信協議：兼容多種通信協議，如 Modbus、DNP3、IEC 61850，確保與其他系統和設備的互操作性。
- 接口選項：提供以太網、RS-232 和 RS-485 接口，方便與外部設備進行數據交換和集成。
用戶界面
- 顯示屏：配備 LCD 顯示屏，提供直觀的用戶界面，方便查看和設置系統參數。
- 配置工具：圖形化配置工具簡化了系統的配置和管理過程，提高了工作效率。
高可靠性和環境適應性
- 工業級設計：設計符合工業級標準，能夠在嚴苛環境下穩定運行。
- 寬溫范圍運行：適應不同環境條件的溫度范圍，確保系統的穩定性和可靠性。
應用領域
變電站
- 變壓器保護和管理：為變電站中的變壓器提供綜合保護，確保安全穩定運行。
- 母線保護：監測和保護變電站的母線，防止故障擴展到整個系統。
配電系統
- 饋線保護：為配電系統中的饋線提供保護，防止由于故障引發的大范圍停電。
- 負荷管理：實時監測和管理配電系統中的負荷，優化系統運行。
工業電力系統
- 關鍵設備保護：保護工業電力系統中的關鍵設備，防止因故障導致生產中斷。
- 電力監控和管理：提供實時電力系統監控和管理，幫助用戶優化系統性能。
總結
Multilin BABF2G0LOSHE 控制器是一款功能全面的控制器，提供了保護、控制、監測和管理功能。其高性能的保護功能、靈活的配置選項以及可靠的設計，使其在變電站、配電系統和工業電力系統中具有廣泛的應用價值。
英文資料：
The Multilin BABF2G0LOSHE controller is a controller in the GE Multilin series, specifically designed to provide comprehensive protection, control, and monitoring functions. It is widely used in the management and control of power systems, especially in substations, distribution networks, and industrial power systems. The following is detailed information about the controller:
Main functions and features
Protection function
Overcurrent protection: including instantaneous, timed, and inverse time overcurrent protection, ensuring quick response in case of short circuit or overload.
Ground fault protection: Provides ground fault detection and protection to prevent the impact of ground faults on the system.
Voltage protection: Monitor the voltage of the power system, including overvoltage and undervoltage protection, to protect equipment from damage caused by abnormal voltage.
Frequency protection: Provides protection against high and low frequencies to ensure the system operates within the normal frequency range.
control function
Automatic reclosing: Supports automatic reclosing function, which automatically restores power supply after the fault is cleared, increasing the reliability of the system.
Circuit breaker control: controls the operation of circuit breakers, such as switch operation and fault isolation, to enhance the flexibility and safety of the system.
Monitoring and Diagnosis
Real time data monitoring: Monitor parameters such as current, voltage, power, etc., and track the operating status of the system in real time.
Event recording and analysis: Recording faults and system events, providing detailed data and timestamps, helps with troubleshooting and analysis.
Waveform capture: Capture and record electrical waveforms to help analyze system events and fault causes in depth.
Communication and Interface
Supported communication protocols: Compatible with multiple communication protocols such as Modbus, DNP3, IEC 61850, ensuring interoperability with other systems and devices.
Interface options: Provides Ethernet, RS-232, and RS-485 interfaces for easy data exchange and integration with external devices.
user interface
Display screen: Equipped with an LCD display screen, providing an intuitive user interface for easy viewing and setting of system parameters.
Configuration tool: The graphical configuration tool simplifies the system configuration and management process, improving work efficiency.
High reliability and environmental adaptability
Industrial grade design: Designed to meet industrial standards and capable of stable operation in harsh environments.
Wide temperature range operation: Adapt to temperature ranges of different environmental conditions to ensure the stability and reliability of the system.
application area
transformer substation
Transformer protection and management: Provide comprehensive protection for transformers in substations to ensure safe and stable operation.
Busbar protection: Monitor and protect the busbars of the substation to prevent faults from spreading to the entire system.
Distribution system
Feedline protection: provides protection for feeders in the distribution system to prevent widespread power outages caused by faults.
Load management: Real time monitoring and management of loads in the distribution system to optimize system operation.
Industrial power system
Key equipment protection: Protecting key equipment in industrial power systems to prevent production interruptions caused by malfunctions.
Power monitoring and management: Provide real-time power system monitoring and management to help users optimize system performance.
summary
The Multilin BABF2G0LOSHE controller is a comprehensive controller that provides protection, control, monitoring, and management functions. Its high-performance protection functions, flexible configuration options, and reliable design make it widely applicable in substations, distribution systems, and industrial power systems.

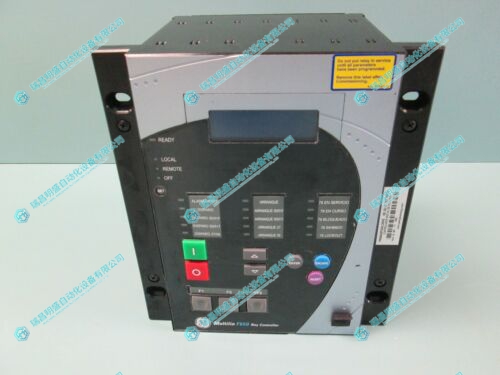

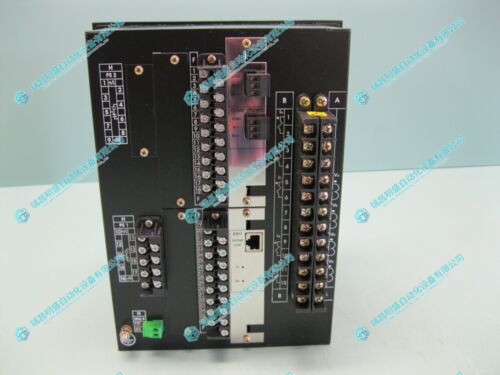

2.產 品 展 示
