Multilin D60K03HKHF8LH6繼電器
1.產 品 資 料 介 紹：
中文資料：

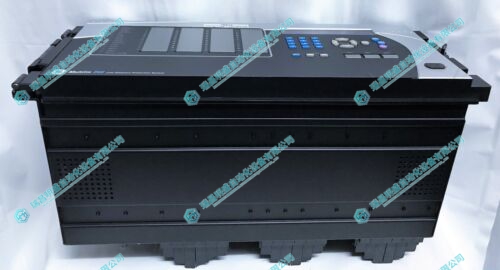

Multilin D60K03HKHF8LH6 繼電器 是 GE Multilin 系列的一款高性能保護和控制繼電器，專為電力系統中的差動保護應用設計。該繼電器具備強大的保護功能、靈活的配置選項和高可靠性，廣泛應用于變電站、輸配電系統和工業電力系統中。
主要功能和特點
差動保護
- 高靈敏度差動保護：提供高靈敏度的相位和零序差動保護，能夠快速檢測并隔離故障。
- 不平衡檢測：具備不平衡檢測功能，有效防止變壓器和線路的內部故障。
過流保護
- 瞬時過流保護：快速響應瞬時過流情況，確保系統的安全運行。
- 定時限和反時限過流保護：根據用戶需求配置定時限和反時限過流保護，適應不同的保護需求。
電壓保護
- 過壓和欠壓保護：提供高效的過壓和欠壓保護，防止電壓異常對系統造成損害。
- 零序電壓保護：監測零序電壓，提供對接地故障的有效保護。
頻率保護
- 頻率過高和過低保護：監測系統頻率，提供頻率過高和過低的保護功能，確保系統的穩定性。
斷路器控制
- 自動重合閘功能：具備自動重合閘功能，提高系統的供電可靠性。
- 斷路器失靈保護：提供斷路器失靈保護，快速識別和隔離故障斷路器。
通信和接口
- 多種通信協議：支持Modbus、DNP3、IEC 61850等多種通信協議，確保與不同系統的兼容性。
- 以太網和串行接口：提供以太網和RS-232/RS-485串行接口，方便與外部設備進行數據交換和通信。
數據記錄和事件分析
- 故障記錄：記錄故障事件的詳細信息，便于故障分析和診斷。
- 事件日志和波形捕捉：提供事件日志和電氣波形捕捉功能，幫助用戶進行深入的事件分析。
用戶界面和配置
- 直觀的LCD顯示屏：配備LCD顯示屏，提供直觀的用戶界面，便于用戶查看和設置參數。
- 圖形化配置工具：通過圖形化配置工具進行系統配置和管理，簡化操作流程。
- 遠程配置和監控：支持遠程配置和監控功能，便于集中管理和維護。
高可靠性和環境適應性
- 工業級設計：采用高可靠性的工業級設計，適應各種嚴苛的工作環境。
- 寬溫范圍運行：能夠在寬溫范圍內穩定運行，確保系統的可靠性。
應用領域
變電站
- 主變壓器保護：為變電站中的主變壓器提供全面的差動保護和過流保護。
- 母線保護：監測和保護變電站中的母線，防止故障擴大，保障電力系統的穩定。
輸配電系統
- 線路保護：為輸電線路提供高效的差動保護和過流保護，防止故障引發大范圍停電。
- 分段保護：對配電系統中的各個分段進行保護和控制，提高配電網絡的可靠性。
工業電力系統
- 設備保護：保護工業電力系統中的大型電機和關鍵設備，防止因故障導致的生產中斷。
- 電網穩定性：通過差動保護和過流保護，確保工業電力系統的穩定運行。
總結
Multilin D60K03HKHF8LH6 繼電器提供了先進的差動保護、過流保護、電壓保護和頻率保護功能，適用于變電站、輸配電系統和工業電力系統中的關鍵設備保護。其高靈敏度、高可靠性和豐富的通信接口，使其成為電力保護和控制系統中的重要組成部分。
英文資料：
Instantaneous overcurrent protection: Quickly respond to instantaneous overcurrent situations to ensure the safe operation of the system.
Fixed time and inverse time overcurrent protection: Configure fixed time and inverse time overcurrent protection according to user needs to adapt to different protection requirements.
Voltage protection
Overvoltage and undervoltage protection: Provides efficient overvoltage and undervoltage protection to prevent abnormal voltage from causing damage to the system.
Zero sequence voltage protection: Monitor zero sequence voltage and provide effective protection against ground faults.
Frequency protection
Protection against high and low frequencies: Monitor the system frequency, provide protection against high and low frequencies, and ensure the stability of the system.
Circuit breaker control
Automatic reclosing function: It has the function of automatic reclosing to improve the power supply reliability of the system.
Circuit breaker failure protection: provides circuit breaker failure protection, quickly identifies and isolates faulty circuit breakers.
Communication and Interface
Multiple communication protocols: Supports Modbus, DNP3, IEC 61850 and other communication protocols to ensure compatibility with different systems.
Ethernet and Serial Interface: Provides Ethernet and RS-232/RS-485 serial interfaces for convenient data exchange and communication with external devices.
Data recording and event analysis
Fault record: Record detailed information of fault events for easy fault analysis and diagnosis.
Event log and waveform capture: Provides event log and electrical waveform capture functions to assist users in conducting in-depth event analysis.
User interface and configuration
Intuitive LCD display screen: Equipped with an LCD display screen, it provides an intuitive user interface for users to view and set parameters.
Graphical configuration tool: Use graphical configuration tools to configure and manage the system, simplifying the operation process.
Remote configuration and monitoring: Supports remote configuration and monitoring functions for centralized management and maintenance.
High reliability and environmental adaptability
Industrial grade design: Adopting high reliability industrial grade design to adapt to various harsh working environments.
Wide temperature range operation: capable of stable operation within a wide temperature range, ensuring the reliability of the system.
application area
transformer substation
Main Transformer Protection: Provides comprehensive differential protection and overcurrent protection for the main transformers in the substation.
Busbar protection: Monitor and protect the busbars in substations to prevent the expansion of faults and ensure the stability of the power system.
Power transmission and distribution system
Line protection: Provide efficient differential protection and overcurrent protection for transmission lines to prevent widespread power outages caused by faults.
Segmented protection: Protecting and controlling each segment in the distribution system to improve the reliability of the distribution network.
Industrial power system
Equipment protection: Protect large motors and critical equipment in industrial power systems to prevent production interruptions caused by malfunctions.
Grid stability: Ensure the stable operation of industrial power systems through differential protection and overcurrent protection.
summary
The Multilin D60K03KHF8LH6 relay provides advanced differential protection, overcurrent protection, voltage protection, and frequency protection functions, suitable for key equipment protection in substations, transmission and distribution systems, and industrial power systems. Its high sensitivity, high reliability, and rich communication interfaces make it an important component of power protection and control systems.
2.產 品 展 示
3.其他產品
MOTOROLA MVME2604761 IO系統模塊
MOTOROLA MVME761-001自動化控制模塊
BENTLY 350022M 138607-01系統模塊卡件
ABB DDC779BE02 Distributed module
ABB DSAI130A 3BSE018292R1 analog input board
ABB DSPU131 3BSE000355R1 unit Interface board module
