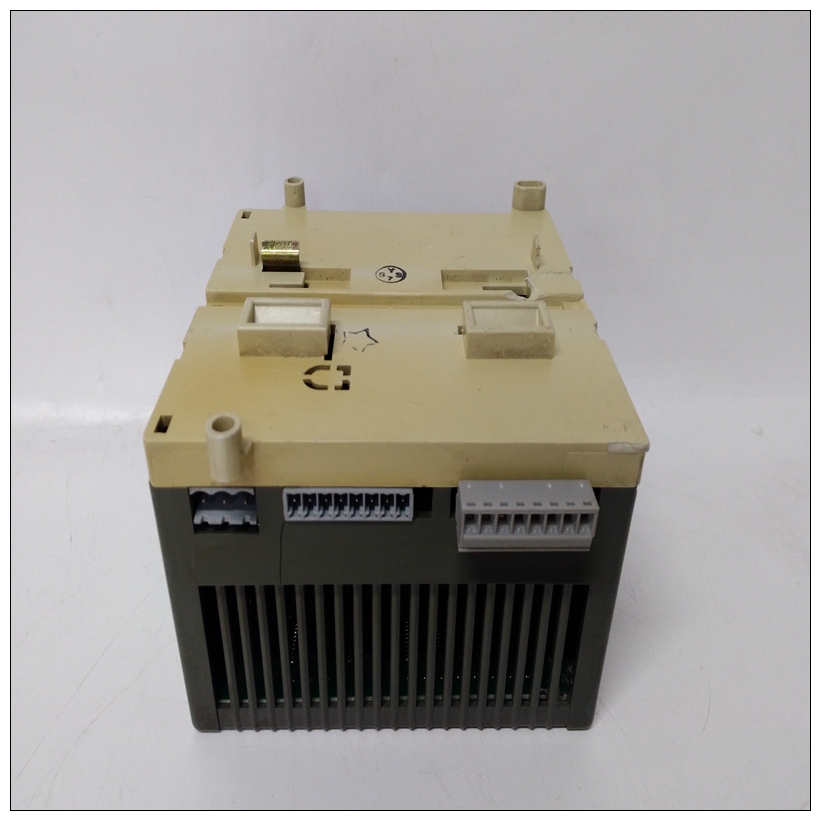

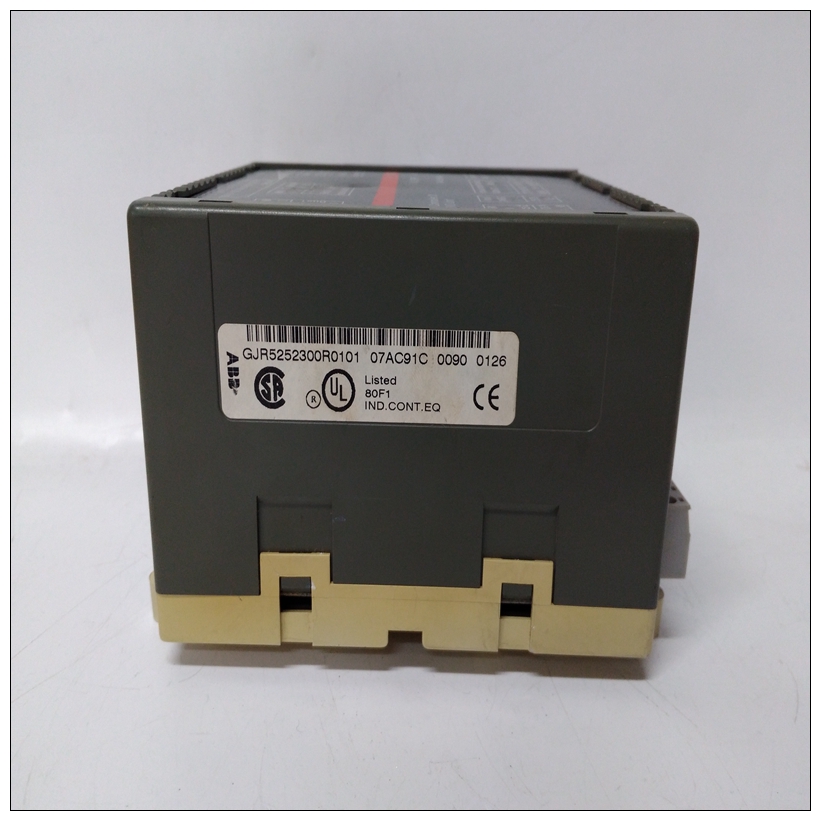

07AC91輸出邏輯模塊,07AC91使用流程
不必要的電路板故障，不要使用鉛筆 cil設置雙列直插式開關。
開箱和檢查1、立即檢查硬件，以確認其沒有在運輸過程中受損。
2.將任何此類損壞通知最近的貝利銷售辦事處。
3、向處理貨物的運輸公司提出任何損壞索賠。
4、使用原包裝材料和容器儲存硬件
5、將硬件存放在空氣質量良好的環境中，無極端溫度和濕度。安裝過程硬件
07AC91輸出邏輯模塊安裝節流閥、液壓執行器、伺服閥（或I/H轉換器）和LVDT變壓器：
1、按照制造商的指示和建議進行安裝。
2、使用制造商提供的電纜尺寸和類型建議。
安裝終端裝置或模塊有關安裝過程接線和液壓伺服終端裝置（THS），數字輸入/輸出終端
裝置（TDI）或數字輸入/輸出終端模塊（IDI），參見適當?shù)慕K端設備說明。附錄C
通過E包含每個終端設備。
unnecessary circuit board malfunction, do not use a lead pen
cil to set a dipswitch.
UNPACKING AND INSPECTION
1. Examine the hardware immediately to verify that it has not
been damaged in transit.
2. Notify the nearest Bailey sales office of any such damage.
3. File a claim for any damage with the transportation com
pany that handled the shipment.
4. Use the original packing material and container to store the
hardware.
5. Store the hardware in an environment of good air quality,
free from temperature and moisture extremes.
INSTALLING THE PROCESS HARDWARE
To install the throttle valve, hydraulic actuator, servo valve (or
I/H converter) and LVDT transformer:
1. Follow the manufacturer’s directions and recommenda
tions for installation.
2. Use the size and type of cabling the manufacturer
recommends.
INSTALLING THE TERMINATION UNIT OR MODULE
For information about installing process wiring and the
hydraulic servo termination unit (THS), digital I/O termination
unit (TDI), or digital I/O termination module (IDI), refer to the
appropriate termination device instruction. Appendices C
through E contain quick reference information for each of the
termination devices.
