Alstom IC693MDL740E自動化可編程控制器
1.產 品 資 料 介 紹：
中文資料：
Alstom IC693MDL740E是GE Fanuc 90-30系列可編程邏輯控制器（PLC）中的一個數字輸出模塊。該模塊專為工業自動化應用設計，提供高可靠性的數字信號輸出能力，用于控制各種工業設備和系統。以下是關于該模塊的詳細信息及其應用領域：
關鍵特點
數字輸出：
- 提供16個獨立的數字輸出通道，可以控制多種工業設備。
輸出電壓：
- 支持24V DC的輸出電壓，適用于大多數工業控制系統。
輸出電流：
- 每個通道的輸出電流為0.5A，足以驅動常見的工業負載。
隔離保護：
- 每個輸出通道都有光電隔離，防止噪聲和電磁干擾對信號的影響，提高系統的可靠性。
狀態指示：
- 配備LED指示燈，顯示每個輸出通道的狀態，便于監控和診斷。
易于安裝和配置：
- 模塊設計緊湊，便于現場安裝和配置，通過PLC編程軟件進行設置和管理。
技術規格
- 輸出通道數：16個
- 輸出電壓：24V DC
- 輸出電流：0.5A（每通道）
- 隔離電壓：1500V AC（通道與邏輯之間）
- 狀態指示：每個通道有LED狀態指示燈
- 響應時間：<2ms
應用領域
工業自動化：
- 用于工廠自動化系統中的各種設備控制，如電機啟動/停止、閥門開/關、繼電器驅動等。
- 實現對生產線的實時控制，提高生產效率和產品質量。
過程控制：
- 在化工、石油、天然氣等過程工業中，用于控制各種執行器和設備，實現過程自動化。
- 提高過程控制的精度和可靠性，確保生產過程的安全和穩定。
電力系統：
- 在發電廠和變電站中，用于控制開關、斷路器等電力設備，確保電力系統的可靠運行。
- 提供實時控制信號，支持電力系統的智能化管理和故障處理。
交通運輸：
- 應用于鐵路、地鐵等交通系統的信號控制和設備管理，確保交通系統的安全和高效運行。
- 提高交通系統的自動化水平和響應速度。
市政工程：
- 用于市政基礎設施的自動化控制系統，如水處理廠、污水處理廠、電網管理等。
- 提高市政設施的運行效率和可靠性，降低運營成本。
樓宇自動化：
- 用于樓宇自動化系統中的各種設備控制，如照明、空調、電梯等，提供智能化控制解決方案。
- 提高樓宇管理的效率和用戶舒適度。
總結
Alstom IC693MDL740E數字輸出模塊通過其高可靠性、多功能性和易于安裝和配置的特點，廣泛應用于工業自動化、過程控制、電力系統、交通運輸、市政工程和樓宇自動化等領域。該模塊不僅提高了系統的自動化水平和運行效率，還確保了生產和運營過程的安全性和可靠性，幫助用戶實現高效、穩定的設備控制和管理。
英文資料：
Alstom IC693MDL740E is a digital output module in the GE Fanuc 90-30 series programmable logic controller (PLC). This module is designed specifically for industrial automation applications, providing high reliability digital signal output capabilities for controlling various industrial equipment and systems. The following is detailed information about the module and its application areas:
Key features
Digital output:
Provide 16 independent digital output channels to control various industrial equipment.
Output voltage:
Supports 24V DC output voltage, suitable for most industrial control systems.
Output current:
The output current of each channel is 0.5A, which is sufficient to drive common industrial loads.
Isolation protection:
Each output channel has optoelectronic isolation to prevent noise and electromagnetic interference from affecting the signal, improving the reliability of the system.
Status indication:
Equipped with LED indicator lights to display the status of each output channel for easy monitoring and diagnosis.
Easy to install and configure:
The module design is compact, easy to install and configure on site, and can be set up and managed through PLC programming software.
technical specifications
Number of output channels: 16
Output voltage: 24V DC
Output current: 0.5A (per channel)
Isolation voltage: 1500V AC (between channel and logic)
Status indicator: Each channel has an LED status indicator light
Response time:<2ms
application area
Industrial automation:
Used for controlling various equipment in factory automation systems, such as motor start/stop, valve opening/closing, relay drive, etc.
Realize real-time control of the production line, improve production efficiency and product quality.
Process control:
In process industries such as chemical, petroleum, and natural gas, it is used to control various actuators and equipment to achieve process automation.
Improve the accuracy and reliability of process control to ensure the safety and stability of the production process.
Power system:
In power plants and substations, it is used to control electrical equipment such as switches and circuit breakers to ensure the reliable operation of the power system.
Provide real-time control signals to support intelligent management and fault handling of power systems.
Transportation:
Applied to signal control and equipment management in transportation systems such as railways and subways, ensuring the safe and efficient operation of the transportation system.
Improve the automation level and response speed of the transportation system.
Municipal engineering:
Automated control systems for municipal infrastructure, such as water treatment plants, sewage treatment plants, power grid management, etc.
Improve the operational efficiency and reliability of municipal facilities, and reduce operating costs.
Building automation:
Used for controlling various equipment in building automation systems, such as lighting, air conditioning, elevators, etc., providing intelligent control solutions.
Improve the efficiency of building management and user comfort.
summary
The Alstom IC693MDL740E digital output module is widely used in fields such as industrial automation, process control, power systems, transportation, municipal engineering, and building automation due to its high reliability, versatility, and ease of installation and configuration. This module not only improves the automation level and operational efficiency of the system, but also ensures the safety and reliability of production and operation processes, helping users achieve efficient and stable equipment control and management.

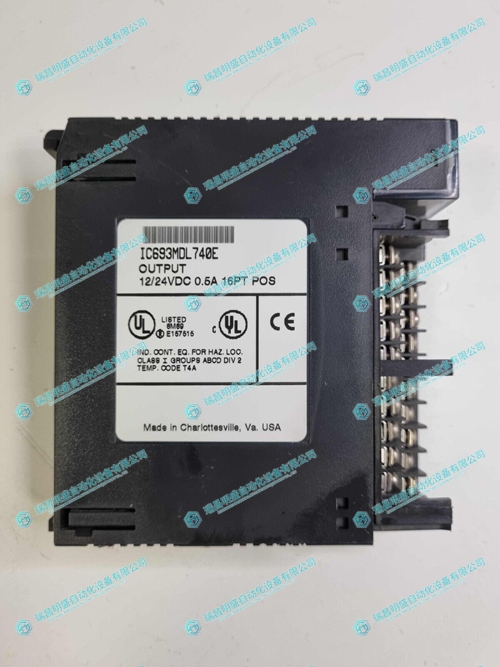

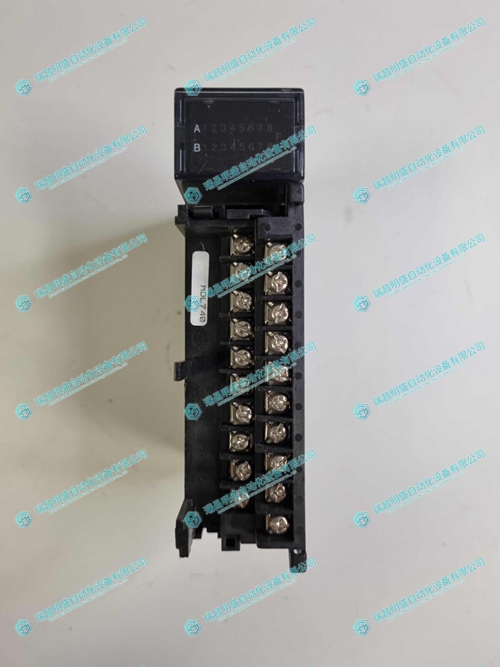

2.產 品 展 示
