Alstom IC693MDL240F數字輸入模塊
1.產 品 資 料 介 紹：
中文資料：
Alstom IC693MDL240F數字輸入模塊是GE Fanuc 90-30系列可編程邏輯控制器（PLC）的一部分，設計用于工業自動化和控制系統。該模塊用于接收和處理數字信號，以實現對各種工業設備和系統的監控和控制。以下是該模塊的詳細信息及其應用領域：
關鍵特點
輸入通道：
- 提供16個數字輸入通道，每個通道可以獨立處理輸入信號。
輸入類型：
- 支持24V DC輸入，適用于大多數工業控制系統中的標準輸入電壓。
隔離保護：
- 每個輸入通道都有光電隔離，防止噪聲和電磁干擾對信號的影響，提高系統的可靠性。
狀態指示：
- 配備LED指示燈，顯示每個輸入通道的狀態，便于監控和診斷。
易于安裝和配置：
- 模塊設計簡潔，便于現場安裝和配置，通過PLC編程軟件進行設置和管理。
技術規格
- 輸入電壓范圍：24V DC
- 輸入通道數：16個
- 輸入電流：約7mA（每個通道）
- 隔離電壓：1500V AC（通道與邏輯之間）
- 響應時間：<10ms
應用領域
工業自動化：
- 用于工廠自動化系統中的各種設備和傳感器的數字信號輸入，如限位開關、光電傳感器、按鈕等。
- 實現對生產線的實時監控和控制，提高生產效率和質量。
過程控制：
- 在化工、石油、天然氣等過程工業中，用于采集和處理各種數字信號，實現過程監控和自動化控制。
- 提高過程控制的精度和可靠性，確保生產過程的安全和穩定。
電力系統：
- 在發電廠和變電站中，用于采集和監控開關狀態、保護設備狀態等數字信號。
- 提供實時數據，支持電力系統的智能化管理和故障診斷。
交通運輸：
- 應用于鐵路、地鐵等交通系統的信號控制和數據采集，實現交通系統的自動化控制和監控。
- 提高交通系統的安全性和運行效率。
市政工程：
- 用于市政設施的自動化控制系統，如水處理廠、污水處理廠等，采集各種設備和傳感器的數字信號。
- 提高市政設施的運行效率和可靠性，降低運營成本。
總結
Alstom IC693MDL240F數字輸入模塊是工業自動化和控制系統中的關鍵組件，通過其高可靠性、多功能性和易于安裝和配置的特點，廣泛應用于工業自動化、過程控制、電力系統、交通運輸和市政工程等領域。該模塊不僅提高了系統的自動化水平和運行效率，還確保了生產和運營過程的安全性和可靠性。
英文資料：
The Alstom IC693MDL240F digital input module is part of the GE Fanuc 90-30 series programmable logic controller (PLC) designed for industrial automation and control systems. This module is used to receive and process digital signals to achieve monitoring and control of various industrial equipment and systems. Here are the detailed information and application areas of this module:
Key features
Input channel:
Provide 16 digital input channels, each of which can independently process input signals.
Input type:
Supports 24V DC input, suitable for standard input voltage in most industrial control systems.
Isolation protection:
Each input channel is equipped with optoelectronic isolation to prevent noise and electromagnetic interference from affecting the signal and improve the reliability of the system.
Status indication:
Equipped with LED indicator lights to display the status of each input channel for easy monitoring and diagnosis.
Easy to install and configure:
The module design is simple, easy to install and configure on site, and can be set up and managed through PLC programming software.
technical specifications
Input voltage range: 24V DC
Number of input channels: 16
Input current: approximately 7mA (per channel)
Isolation voltage: 1500V AC (between channel and logic)
Response time:<10ms
application area
Industrial automation:
Used for digital signal input of various equipment and sensors in factory automation systems, such as limit switches, photoelectric sensors, buttons, etc.
Realize real-time monitoring and control of the production line to improve production efficiency and quality.
Process control:
In process industries such as chemical, petroleum, and natural gas, it is used to collect and process various digital signals to achieve process monitoring and automation control.
Improve the accuracy and reliability of process control to ensure the safety and stability of the production process.
Power system:
In power plants and substations, it is used to collect and monitor digital signals such as switch status and protection equipment status.
Provide real-time data to support intelligent management and fault diagnosis of the power system.
Transportation:
Applied to signal control and data acquisition in transportation systems such as railways and subways, achieving automated control and monitoring of transportation systems.
Improve the safety and operational efficiency of the transportation system.
Municipal engineering:
Automated control systems for municipal facilities, such as water treatment plants, sewage treatment plants, etc., collect digital signals from various equipment and sensors.
Improve the operational efficiency and reliability of municipal facilities, and reduce operating costs.
summary
The Alstom IC693MDL240F digital input module is a key component in industrial automation and control systems. With its high reliability, versatility, and ease of installation and configuration, it is widely used in fields such as industrial automation, process control, power systems, transportation, and municipal engineering. This module not only improves the automation level and operational efficiency of the system, but also ensures the safety and reliability of the production and operation processes.

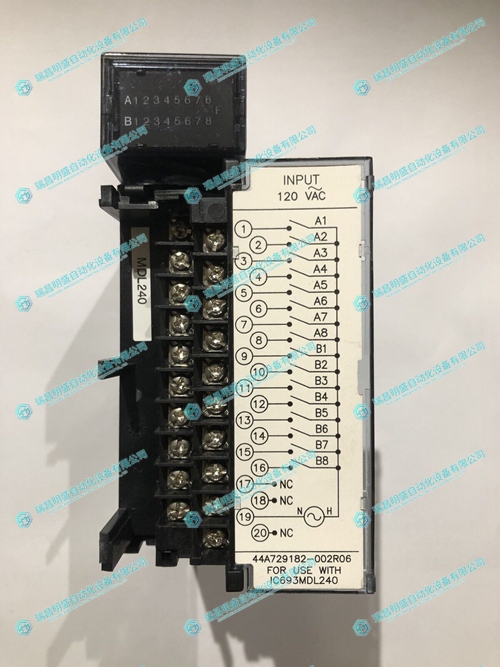

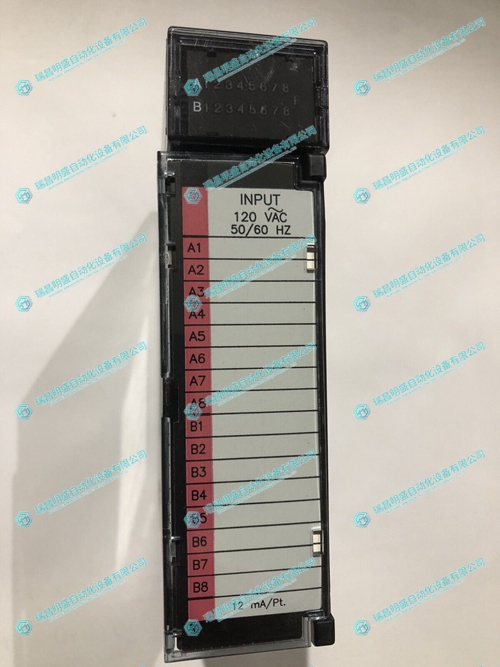

2.產 品 展 示
