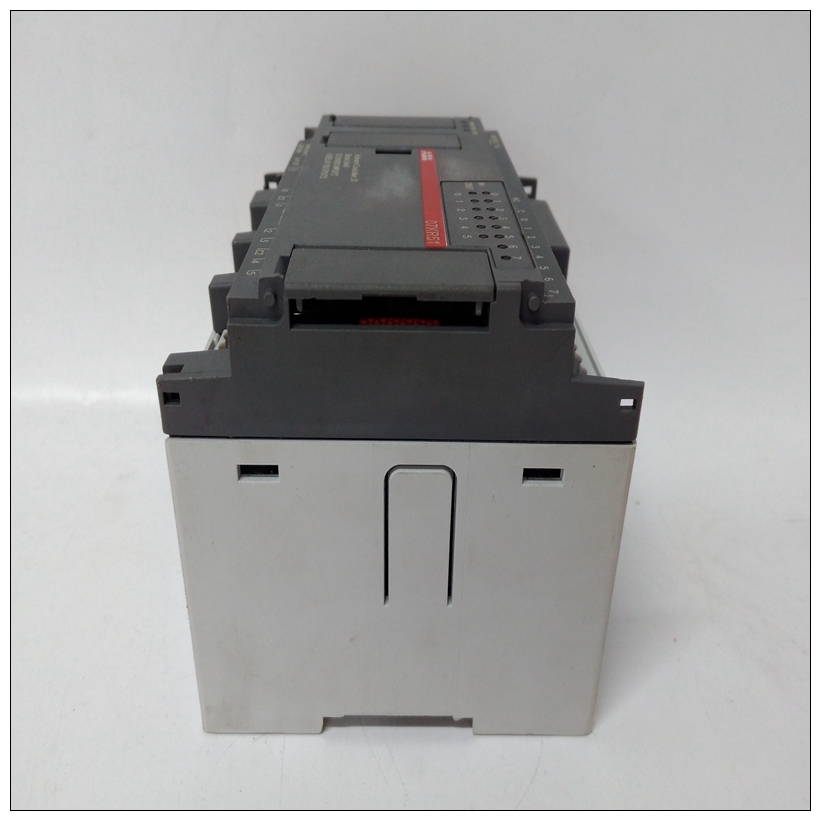

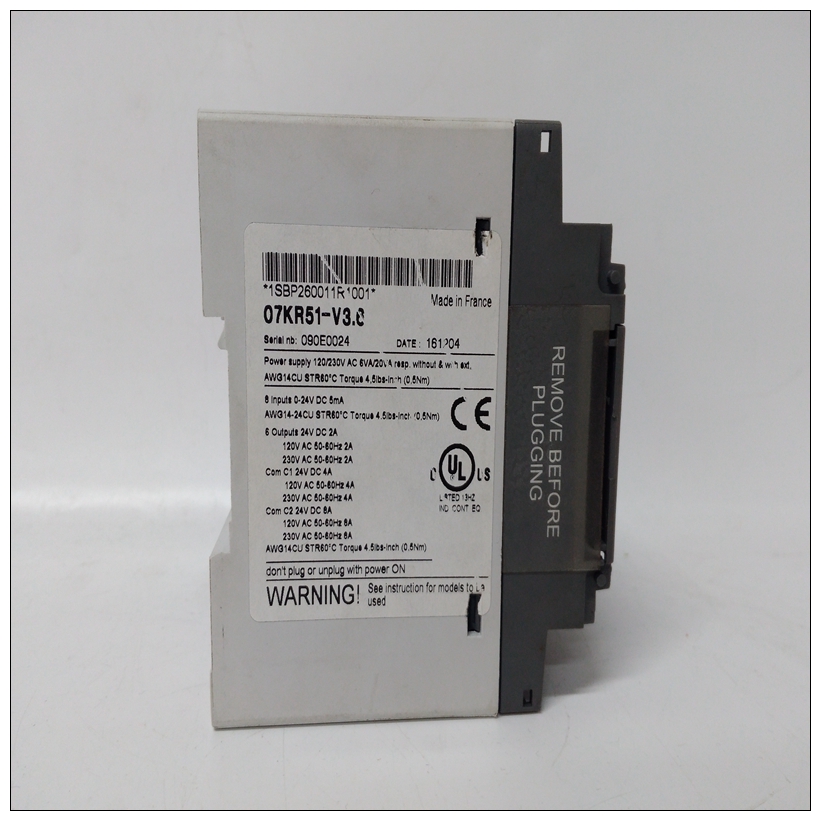

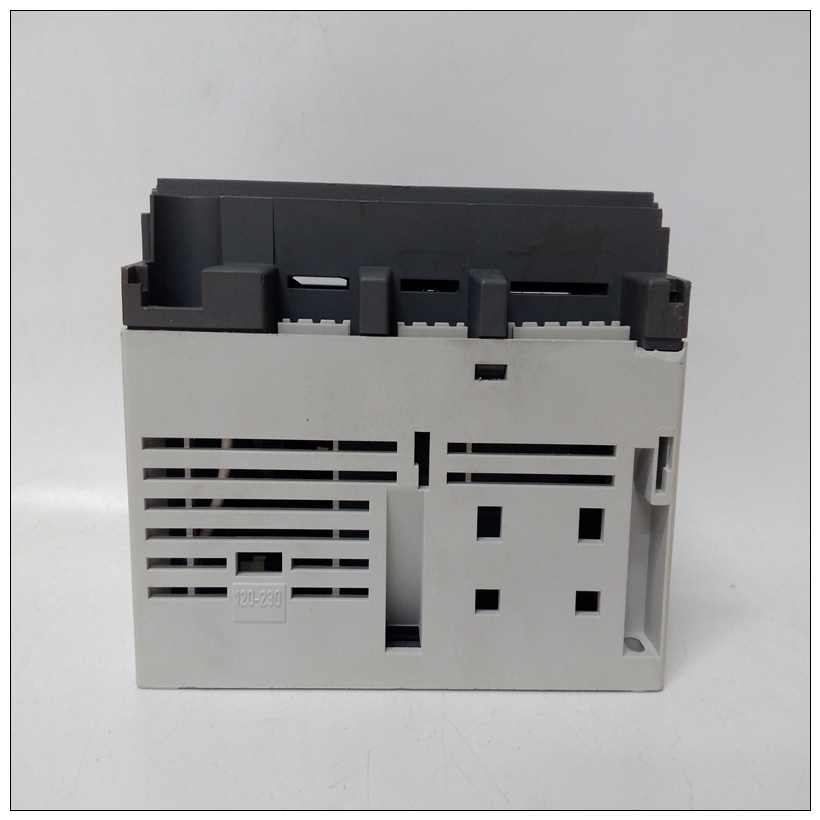

07KR51數控模塊,07KR51說明書在線閱讀
絕緣放大器PXUB 201
絕緣放大器連接到張力電子設備電壓輸出。
S1通常設置為電壓比為1:1。選擇輸出以通過開關S1和S2產生電壓或電流輸出。通過開關S2位置3選擇較慢響應。
開關位于裝置內部。必須打開絕緣放大器才能設置開關S1和S2。
1、從DIN導軌上卸下絕緣放大器。用螺絲刀卸下絕緣放大器底部的彈簧。
2、按下絕緣放大器兩側的按扣。
3、打開頂蓋，直到看到開關S1和S2。設置開關S1和S2。
5、將頂蓋滑回鎖定位置。
07KR51數控模塊6、在DIN導軌上重新安裝絕緣放大器關于本章
正常操作期間，無需注意測量系統。測量只要系統打開，就可以連續運行。但是，您需要知道如何開始并關閉系統，參見第4.4節啟動和關閉。
4.2安全說明
在開始任何操作之前，請閱讀并遵循第1章引言中給出的安全說明操作工作。但是，如果更嚴格，應以當?shù)胤ㄒ?guī)為準。
4.3操作裝置
LED指示燈和操作員按鍵如圖4-1所示。
Insulation Amplifier PXUB 201
The insulation amplifier is connected to the tension electronics voltage output.
S1 is normally set for voltage 1:1 ratio.
The output is selected to generate a voltage or current output by means of switch S1 and S2.
Slower response is selected by means of switch S2, position 3.
The switches are located inside the unit.You must open the insulation amplifier to be able to set the switches S1 and S2.
1. Demount the insulation amplifier from the DIN rail.
Use a screw driver to unload the spring at the bottom of the insulation amplifier.
2. Press down the snap-locks on both sides of the insulation amplifier.
3. Pull the top lid open, until you see both the switches S1 and S2.
4. Set the switches S1 and S2.
5. Slide back the top lid to locked position.
6. Remount the insulation amplifier on the DIN railAbout this Chapter
Your measurement system does not need any attention during normal operation. Measurement
runs continuously as long as the system is switched on. However, you need to know how to start
and shut down the system, see Section 4.4 Start-up and shut-down.
4.2 Safety Instructions
Read and follow the safety instructions given in Chapter 1 Introduction, before starting any
operation work. However, local statutory regulations, if stricter, are to take precedence.
4.3 Operating Devices
The LED-indicators and operator keys are described in Figure 4-1.
