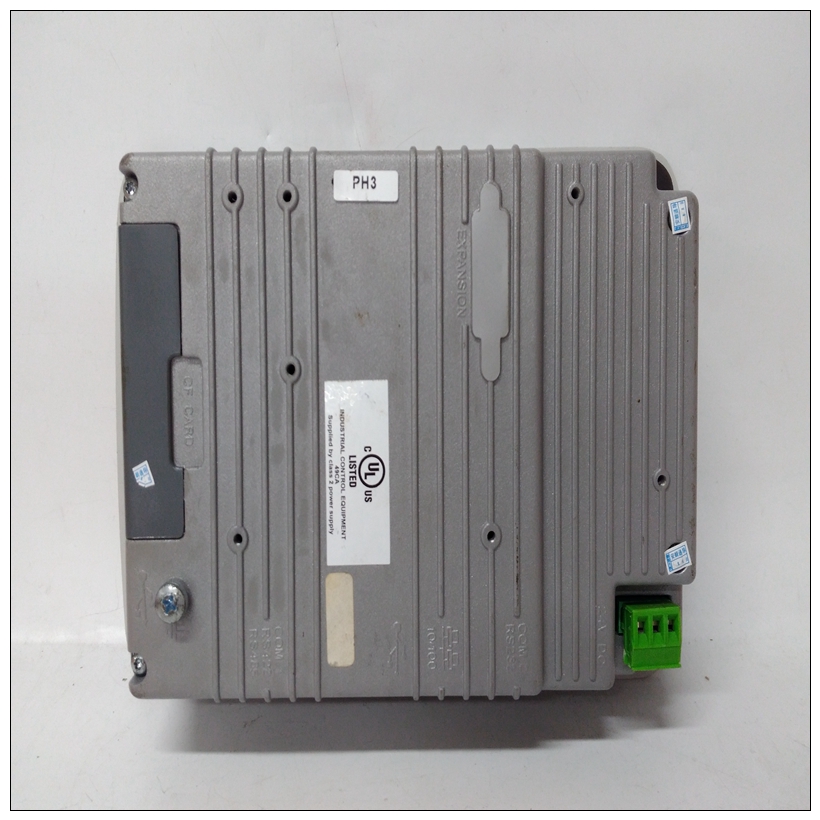

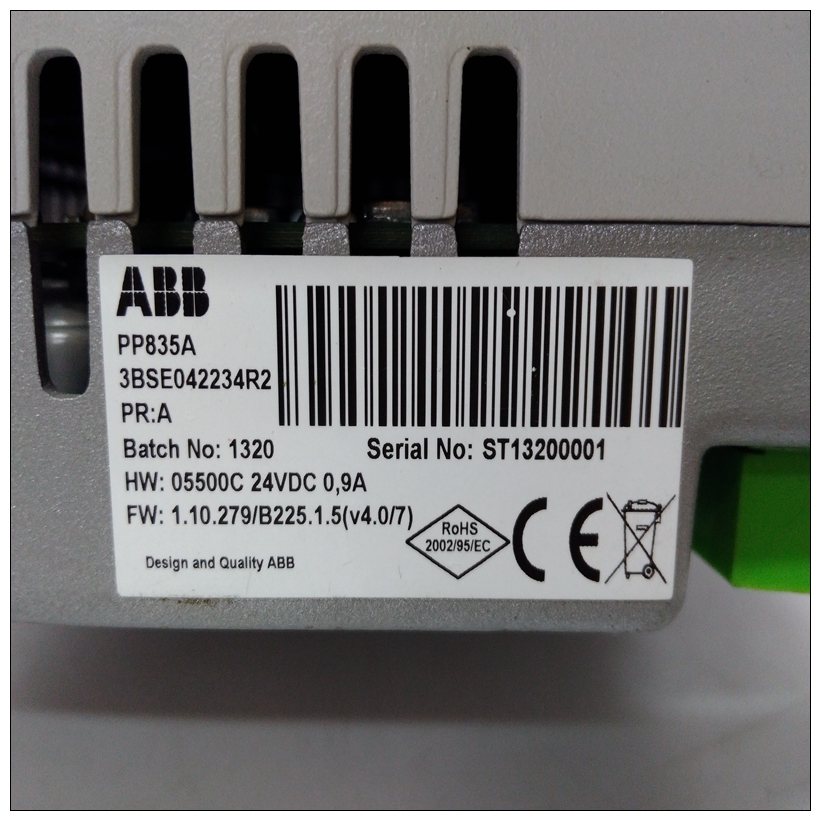

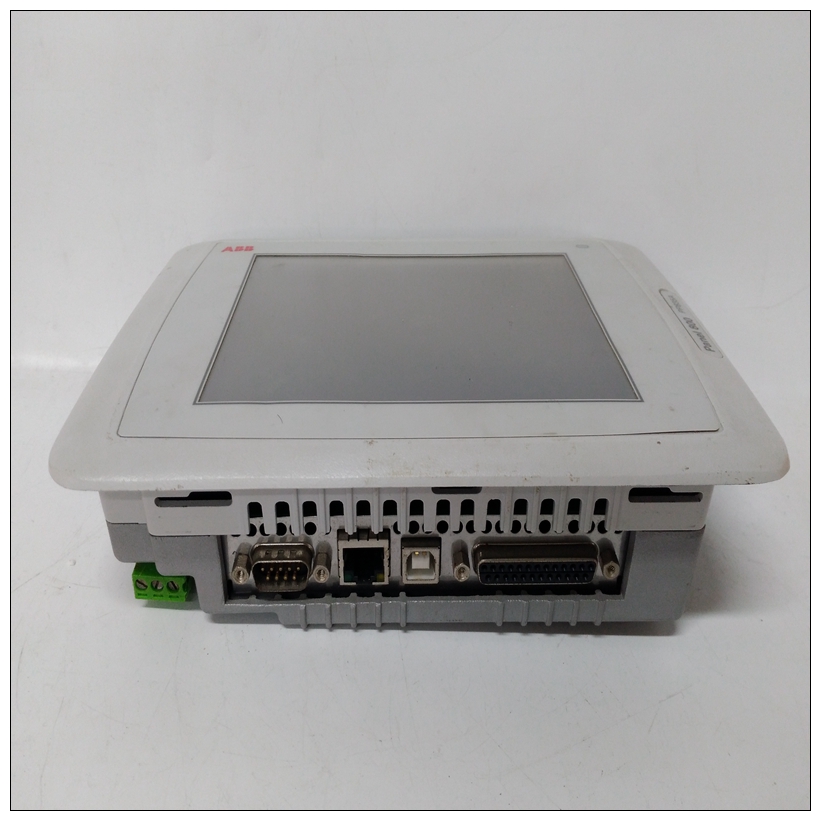

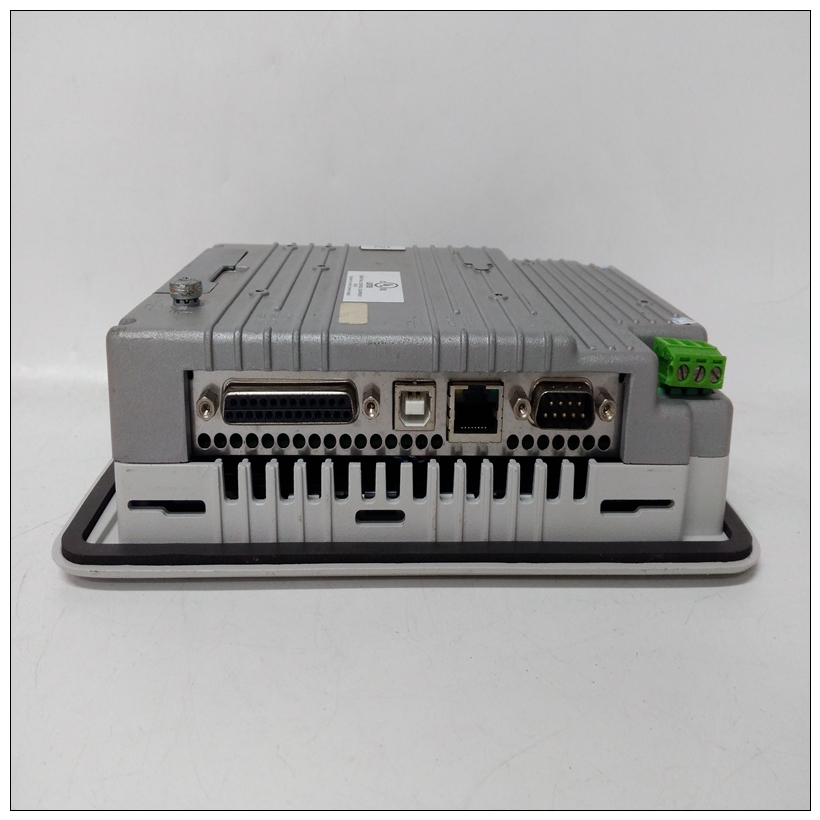

PP835A顯示屏,PP835A使用手冊
?處理器或輸入/輸出適配器模塊
?電源
?通信模塊和/或輸入/輸出模塊
安裝說明電源設備支撐面板（左端面板）有螺釘，如中所示中央和右端面板由模壓鎖緊，無需螺釘。安裝中央接地母線每個機柜必須包含一條中央接地母線。接地母線是常見的機柜內每個機箱和機柜本身的連接。如果你尚未安裝中央接地總線
PP835A顯示屏請參見工業自動化布線和接地指南，出版物1770-4.1。將設備接地導體連接至接地母線將設備接地導體直接從每個機箱連接到接地母線上的單個螺栓。?使用2.54 cm（1in）銅線編織或5.2 mm2（10 AWG）銅線連接每個機箱外殼和安裝在后面板上的中央接地總線
?使用鋼外殼防止電磁干擾（EMI）
?確保外殼門觀察窗為層壓屏幕或?qū)щ姽鈱W(xué)基板（阻止電磁干擾）
?在門和外殼之間安裝連接線，以實現電氣接觸；不要依賴鉸鏈將接地母線連接到接地極系統地極系統處于地電位，是中心任何設施內所有電氣設備和交流電源的接地。使用接地電極導體，用于將接地母線連接到接地極系統。至少使用8.3 mm2（8 AWG）銅線防止電磁干擾的接地極導體。
?
use 2.54 cm (1in) copper braid or 5.2 mm2 (10 AWG) copper wire to connect each chassis, the
enclosure, and a central ground bus mounted on the back-panel
?
use a steel enclosure to guard against electromagnetic interference (EMI)
?
make sure the enclosure door viewing window is a laminated screen or a conductive optical substrate
(to block EMI)
?
install a bonding wire for electrical contact between the door and the enclosure; do not rely on the
hinge
Connect Ground Bus to Grounding-Electrode System
The grounding-electrode system is at earth-ground potential and is the central
ground for all electrical equipment and ac power within any facility. Use a
grounding-electrode conductor to connect the ground bus to the
grounding-electrode system. Use at minimum 8.3 mm2 (8 AWG) copper wire for
the grounding-electrode conductor to guard against EMI. The National Electrical
Code specifies safety requirements for the grounding-electrode conductor.
