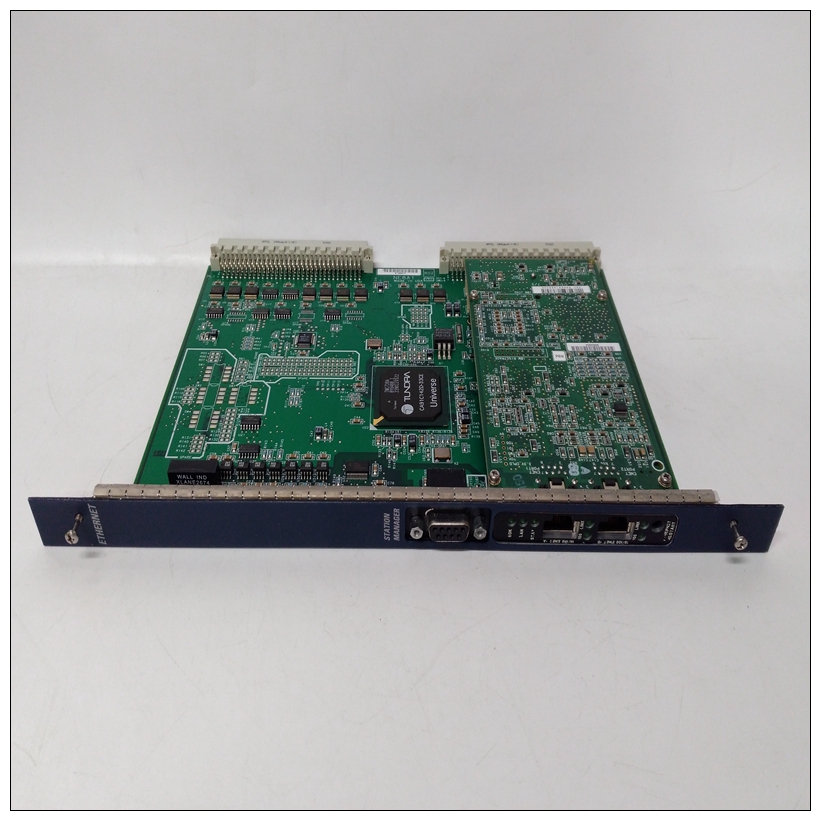

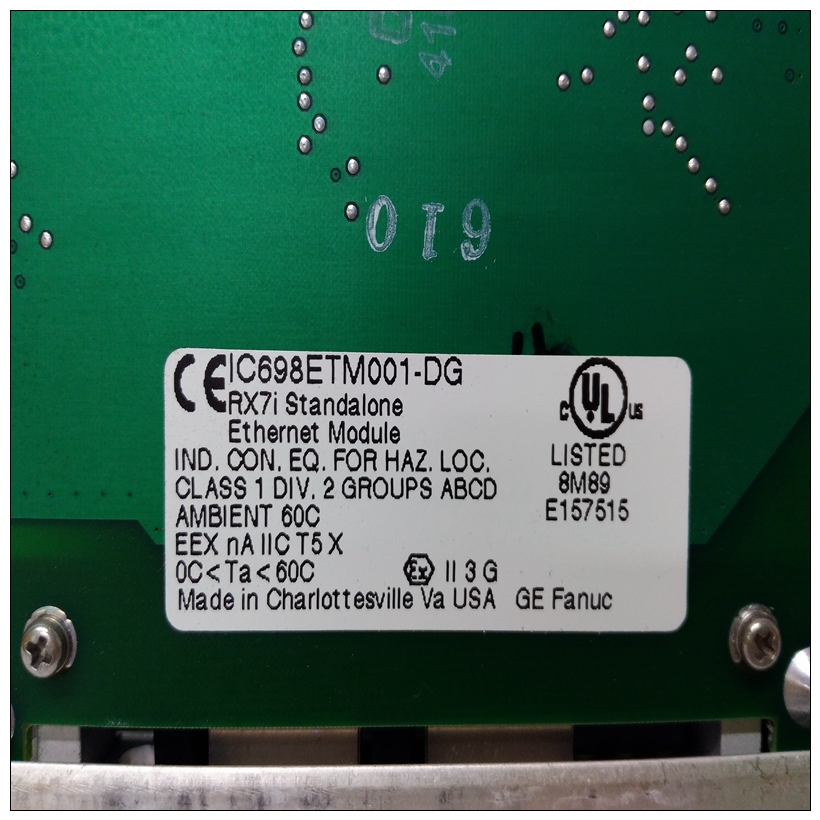

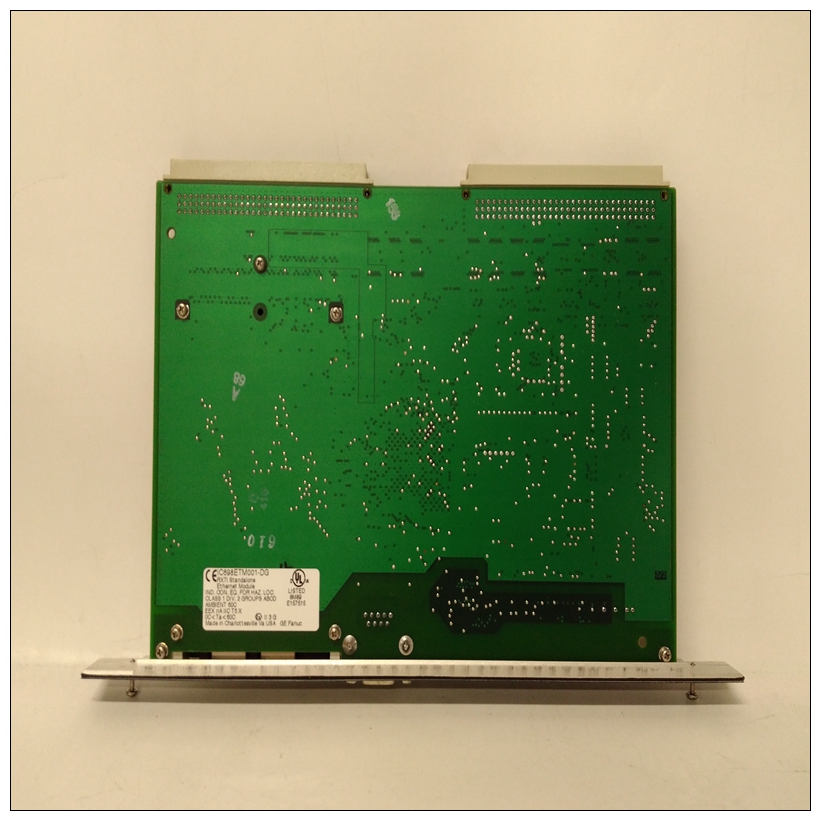

IC698ETM001燃機卡件,GE使用進展
重新配置后仍將保持脫機狀態。為了使自動運行生效
SST-PB3-CLX-RLL必須復位。這可以通過向發送重置消息來完成進入模塊信息選項卡，單擊模塊重置按鈕，然后選擇“確定”以顯示警告消息。自動運行時，如果使用SST-PB3-CLX-RLL
在SST Profibus配置工具中脫機時，必須將SST-PB3-CLX-RLL放回原位由用戶聯機。這可以通過在SST Profibus中發出在線命令來完成配置工具（右鍵單擊Master并選擇online）。
IC698ETM001燃機卡件Legacy\u ID\u 0876：如果希望模塊使用Legacy ID 0x0876，請啟用此選項而不是在從機或主從模式下運行時的0xOC44。您必須使用更正與此從屬ID一起使用的從屬GSD文件。使用從屬GSD文件ssti0876。ID的gse0x0876和從屬GSD文件ssti0c44。ID為0x0C44的gse。
輸入大?。哼@是從站接收數據的長度（大寫）。有效輸入大小為1-122。輸出大小：這是從站傳輸數據的長度（大寫）。有效輸出大小為1-122。輸入偏移量：指定CLX輸入文件中的字偏移量，其中從Rx數據應映射。輸入偏移范圍為2到249。實際標記偏移量將是偏移量
2. 默認情況下，輸入數據從標記Local:Slot開始。PROFIBUSDATA[0]。
如果將模塊配置為主模塊和從模塊，請確保偏移不會與重疊在主配置中配置的偏移量（在SST Profibus配置中創建工具）。
輸出偏移量：指定CLX輸出文件中的字偏移量，其中從Tx數據應映射。輸出偏移范圍為2到247。實際標記偏移量將是偏移量
2. 默認情況下，輸出從標記Local:Slot開始。ProfibusDataOut[0]。
如果將模塊配置為主模塊和從模塊，請確保偏移不會與重疊在主配置中配置的偏移量（在SST Profibus配置中創建工具）。
地址：–這是為從站配置的本地站號。有效范圍為1-
125、如果模塊配置為主模塊和從模塊，則主模塊使用的站地址也用于從屬地址，此字段將被忽略。波特率：這是波特率，可以設置為這些波特率中的任何一個（9K6、19K2、，93K75、187K5、500K、1M5、3M、6M、12M、31k25、45k45）。這可為DP從機設置僅限操作。如果配置了主從設備，則忽略此字段，波特率使用DP主機上的配置（使用SST Profibus配置工具）。
will still remain offline after being reconfigured. In order for the Auto-Run to take effect, the
SST-PB3-CLX-RLL must be reset. This can be done by sending a RESET message to the
module by going to the Module Info tab and clicking on module Reset button and then
selecting OK to warning message. When in AutoRun, if the SST-PB3-CLX-RLL is taken
offline in the SST Profibus Configuration Tool, the SST-PB3-CLX-RLL must be put back
online by the user. This can be done by issuing the online command in the SST Profibus
Configuration Tool (Right-click on Master and select online).
Legacy_ID_0876: Enable this option if you want the module to use legacy ID 0x0876
instead of 0xOC44 when it’s operating in Slave or Master and Slave mode. You must use the
correct slave GSD file that goes with this Slave ID. Use slave GSD file ssti0876.gse for ID
0x0876 and slave GSD file ssti0c44.gse for ID 0x0C44.
Slave Parameters
Input Size: This is the length of slave receive data in Words. Valid input size is 1- 122.
Output Size: This is the length of slave transmit data in Words. Valid output size is 1- 122.
Input Offset: Specifies the word offset into the CLX input file where the slave Rx data
should be mapped. The input offset range is 2 to 249. The actual tag offset will be the offset
– 2. By default, the input data begins at tag Local:Slot.ProfibusDataIn[0].
If configuring the module as a Master and Slave, make sure offsets do not overlap with
offsets configured in your master configuration (created in SST Profibus Configuration
Tool).
Output Offset: Specifies the word offset into the CLX output file where the slave Tx data
should be mapped. The output offset range is 2 to 247. The actual tag offset will be the offset
– 2. By default, the output begins at tag Local:Slot.ProfibusDataOut[0].
If configuring the module as a Master and Slave, make sure offsets do not overlap with
offsets configured in your master configuration (created in SST Profibus Configuration
Tool).
Address: – This is the local station number configured for the slave. The valid range is 1-
125. If the module is configured as Master and Slave, the station address used for the Master
is also used for the slave address and this field is ignored.
Baud: This is the Baud rate and can be set to any one of these baud rates (9K6, 19K2,
93K75, 187K5, 500K, 1M5, 3M, 6M, 12M, 31k25, 45k45). This is settable for DP Slave
operation only. If Master-Slave is configured, this field is ignored and the baud rate
configured on DP Master (using SST Profibus Configuration Tool) is used.
