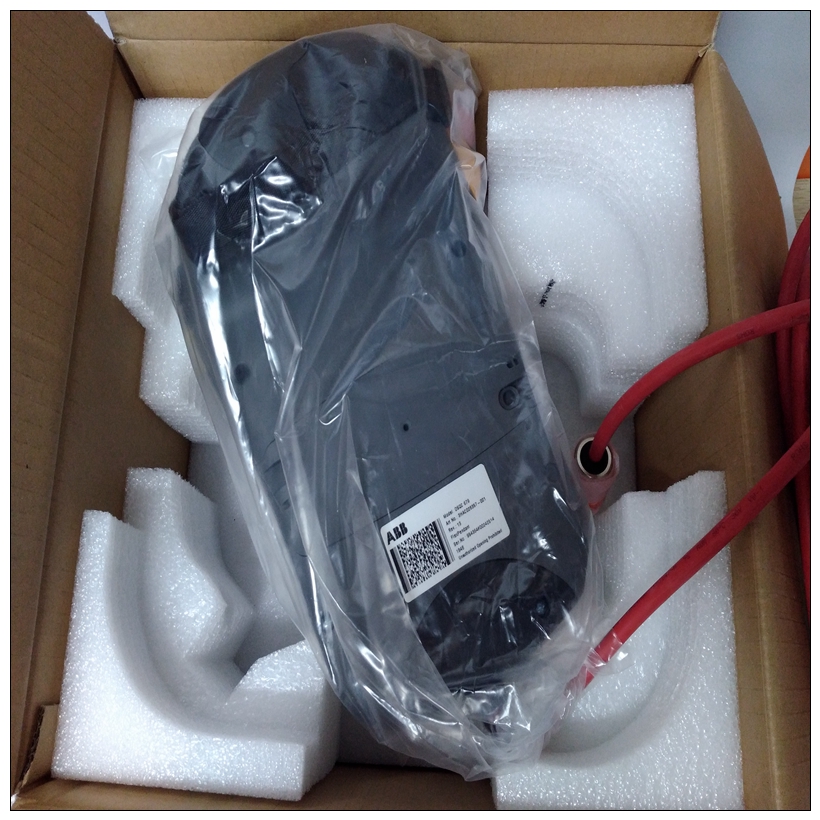

DSQC679機器人示教器,DSQC679使用流程
系列B代表SST-PB3-CLX-RLL模塊。這是默認設置。系列A代表傳統SST-PFB-CLX-RLL。
12、本版本是指模塊上的背板固件版本。修訂版包含主要和次要修訂號?！爸饕焙汀按我钡哪J(rèn)值為8和1。這通電時，版本顯示在SST-PB3-CLX-RLL LCD顯示屏上，并顯示在RSLinx中查看RSWho中模塊的屬性時。
DSQC679機器人示教器電子鍵控是一種允許在模塊的物理模塊和軟件配置。一致性檢查包括檢查屬性供應商、產品類型、目錄號、主要和次要修訂。
有三種可用模式：兼容、精確匹配和禁用關鍵幀。默認值是兼容模式。在兼容模式下，只有在以下情況下，模塊的COPN才會成功：
?模塊類型、目錄號和主要版本必須匹配
?物理模塊的次要修訂必須等于或大于在軟件中指定。如果要使用電子鍵控的精確匹配選項，所有SST-PB3-CLX-RLL模塊和軟件中創建的模塊的屬性必須火柴如果模塊的固件稍后升級，則必須更新版本設置使其完全匹配。“禁用鍵控”選項允許在不執行一致性檢查。不建議使用此選項。
Series B represents the SST-PB3-CLX-RLL module. This is the default. Series A represents
the legacy SST-PFB-CLX-RLL.
12. The Revision refers to the backplane firmware version on module. The revision contains a
Major and Minor revision number. The defaults for Major and Minor are 8 and 1.This
revision is displayed on the SST-PB3-CLX-RLL LCD display at power-up and is displayed
in RSLinx when viewing the properties of our module in RSWho.
13. Electronic keying is a feature that allows a consistency check to be done between the
physical module and software configuration of the module. The consistency check involves
checking attributes Vendor, Product Type, Catalog number, Major and Minor Revision.
There are three modes available: Compatible, Exact Match, and Disable Keying. The default
is compatible mode. In compatible mode, a COPN to the module is only successful when:
?
Module type and Catalog Number and Major revision must match
?
The Minor revision of the physical module must be equal to or greater than the one
specified in the software.
If you want to make use of the Exact Match option for the Electronic keying, all of the
attributes of the SST-PB3-CLX-RLL module and the module created in software must
match. If the module’s firmware is upgraded later, the Revision setting must be updated
so that it matches exactly.
The “Disable Keying” option allows a COPN to the module without performing a
consistency check. This option is not recommended.
