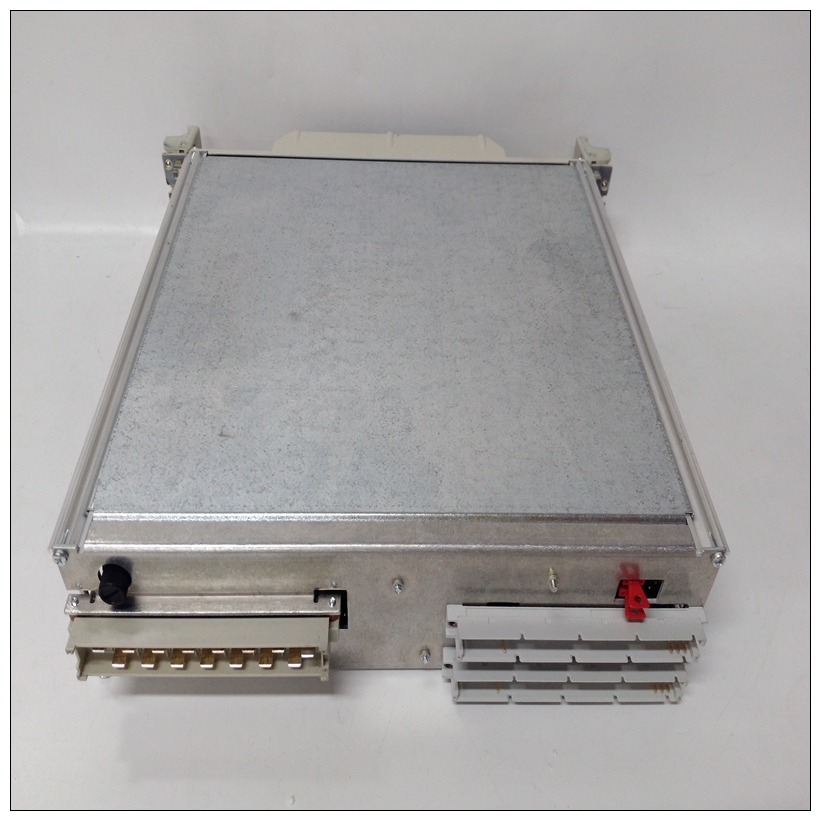

HESG441635R1主控板卡,HESG441635R1使用在哪里
冗余輸入電壓24 V DC，在符合NAMUR
?電源輸出提供：
SD 802F：5 V DC/5 A和3.3 V DC/5 A
SD 812F：5 V DC/5.5 A和3.3 V DC/6.5 A
?增強的電源故障預測和停機程序
?LED指示電源狀態和工作狀態
AC 800F的狀態
?防短路，限流
?主電源情況下使用的20 ms備用電能
HESG441635R1主控板卡根據NAMUR的說法，失敗描述AC 800F模塊配備5 V DC/5 A和SD 802F電源的3.3 V DC/5 A輔助電源模塊，分別。5 V DC/5.5 A和3.3 V DC/6.5 ASD 812F。電源具有斷路、過載和持續短路保護。電子控制輸出電壓提供高穩定性和低殘余紋波。
在斷電的情況下≥ 5 ms時，電源模塊發出電源故障信號。該信號由CPU模塊使用
關閉操作并進入安全狀態。這是在電源恢復時控制重啟系統和用戶應用程序所必需的。輸出電壓保持不變在其公差范圍內至少再保持15 ms將管理20 ms的輸入電壓降。
LED顯示屏權力綠色內部電源電壓可用失敗
非正常狀態橙色自檢
運行期間出現閃爍橙色過熱基本單元的紅色硬件故障系統軟件故障閃爍紅色
運行/停止綠色處理活動閃爍綠色進程已停止，現在已啟動再一次紅色處理未激活閃爍紅色進程處于活動狀態，現已停止橙色自檢
非軟件初始化Prim/Sec如果存在冗余，請參閱LED在手冊“安裝和安裝說明”。
對于非冗余，狀態為：橙色自檢非正常狀態
Features
? Redundant input voltage 24 V DC, provides operation in
accordance with NAMUR
? Power supply outputs provide:
SD 802F: 5 V DC / 5 A and 3.3 V DC / 5 A
SD 812F: 5 V DC / 5.5 A and 3.3 V DC / 6.5 A
? Enhanced power-fail prediction and shutdown procedures
? LED indication for power supply status and operating
status of the AC 800F
? Short circuit proof, current limited
? 20 ms backup energy for use in the event of primary power
failure, according to NAMUR
Description
The AC 800F modules are supplied with 5 V DC / 5 A and
3.3 V DC / 5 A auxiliary power by the SD 802F power supply
module, resp. with 5 V DC / 5.5 A and 3.3 V DC / 6.5 A by the
SD 812F. The power supply has open-circuit, overload and sus
tained short-circuit protection. The electronically controlled out
put voltage provides high stability and low residual ripple.
In case of power loss ≥ 5 ms, the power supply module gener
ates a power-fail signal. This signal is used by the CPU module
to shut down operations and enter to a safe state. This is re
quired for a controlled restart of the system and the user appli
cation when power is restored. The output voltage remains
within its tolerance limits for at least another 15 ms. Altogether
an input voltage drop of 20 ms will be managed.
LED Displays
Power
Green Internal supply voltage is available
Failure
Off Normal status
Orange Self test
Flashing orange Overtemperature occurred during opera
tion
Red
Hardware failure of the basic unit
Flashing red Software failure of the system
Run/Stop
Green Processing active
Flashing green Process was stopped and is now started
again
Red Processing inactive
Flashing red Process was active and is stopped now
Orange Self test
Off Software initialization
Prim/Sec In case of redundancy please see the
LED’s meaning in manual “Mounting and
Installation Instruction”.
For not redundancy the states are:
Orange Self test
Off Normal status
