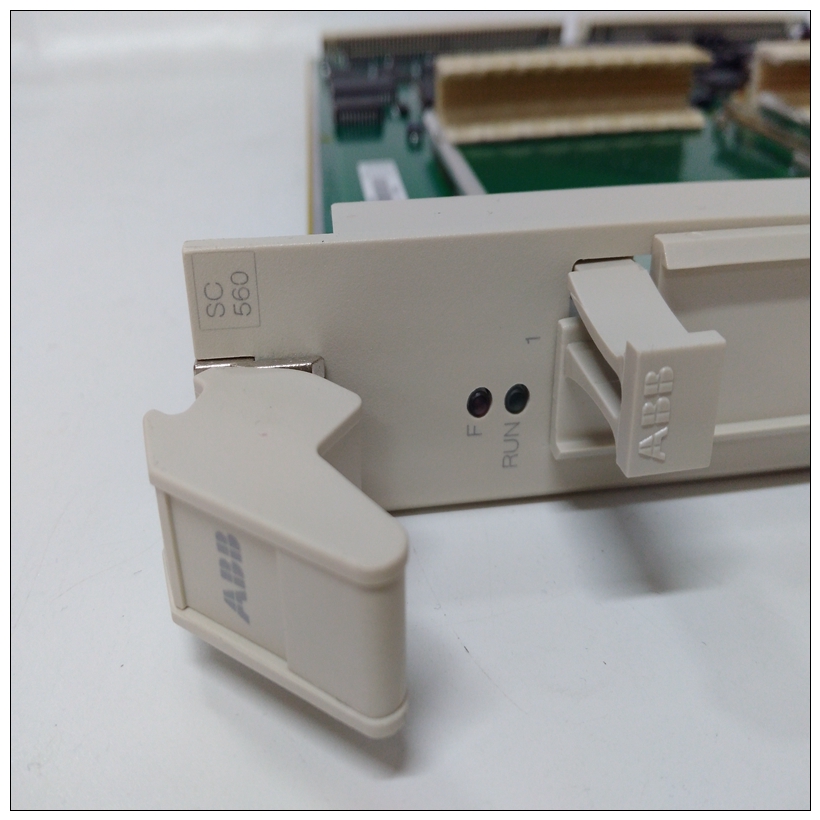

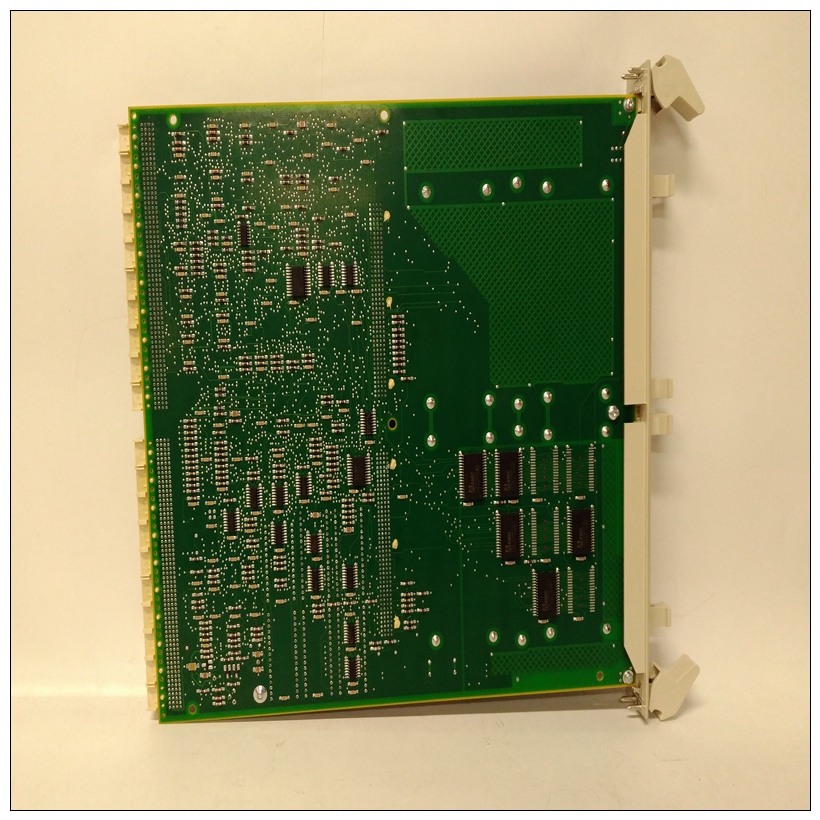

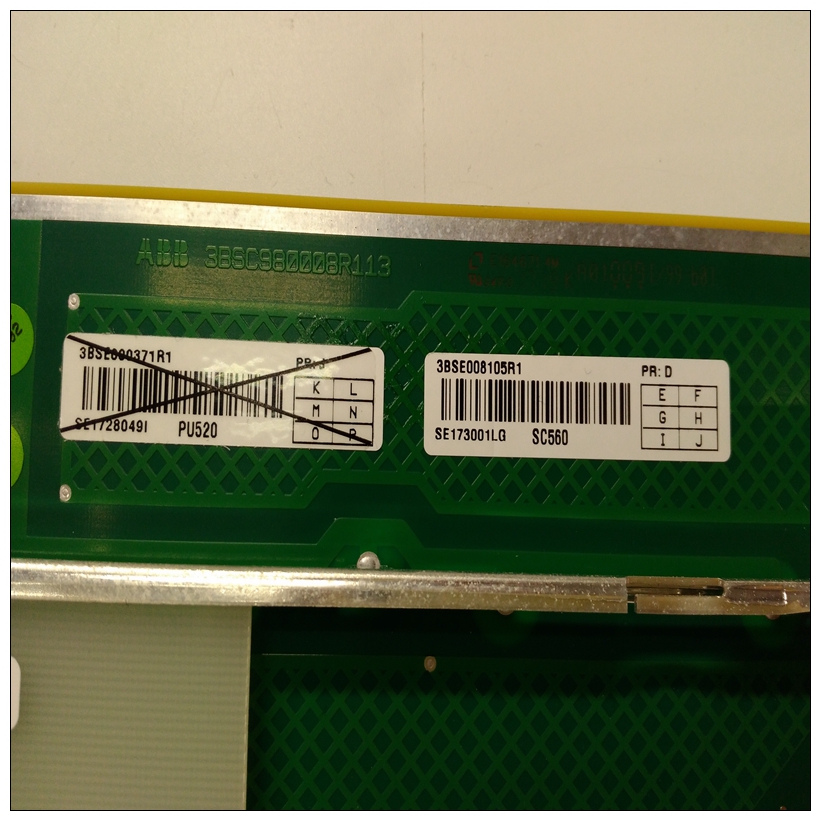

SC560系統DCS卡件,SC560使用配置手冊
信號輸出EO 1/EO 2d14/d16
電壓輸出0。。。10伏。對于根據特性具有單獨通道的模式
價值對于模式Smax和SPPmax輸出?通道測量值。
測量范圍和根據特征值進行評估。
根據應用和配置，輸出EO可用于連接或陳列防斷路和短路，無反應。
SC560系統DCS卡件標稱范圍0+10 V直流電決議8?一點每負載電阻>10 kΩ內阻約為50Ω信號輸入EI1/EI2單個輸入?通道測量值1+10 V，用于與EO輸出連接。
電壓輸入EI1/EI2 b14/b16標稱電壓范圍0+10 V直流電決議10?一點輸入電阻>100 kΩ信號輸入鍵內部RPM確定需要按鍵脈沖，以檢查中的測量值測量值分析。
信號輸入鍵（N）d22信號電平24 V邏輯，：低=0。。。3伏；高=13。。。48伏輸入電阻>10 kΩ1.6.2信道監測監控功能持續監控傳感器信號良好范圍（取決于配置）良好的閾值
? 下限閾值傳感器工作范圍下限值?0.5伏
? 上限閾值傳感器工作范圍上限值+0.5 V
系統電壓電壓?
Signal outputs EO 1 / EO 2
d14 / d16
voltage output 0 ... 10V. For modes with separate channels according to the characteristic
value. For modes Smax and SPPmax outputs of the single?channel measured values.
Measuring range and evaluation according to the characteristic value.
Depending on the application and configuration the outputs EO can be used for linkage or for
display.
Open circuit and short circuit proof, non reactive.
Nominal range 0 ... +10 V DC
Resolution 8?bit
Per. load resistance > 10 kΩ
Internal resistance Approximately 50 Ω
Signal inputs EI1 / EI2
Inputs for single?channel measurement values 1 ... +10 V for connection with EO outputs.
Voltage input EI1 / EI2 b14 / b16
Nominal voltage range 0 ... +10 V DC
Resolution 10?bit
Input resistance > 100 kΩ
Signal input KEY
The key pulse is required for internal RPM determination for checking the measurements in
the measured value analysis.
Signal input KEY (N) d22
Signal level 24 V logic,: LOW = 0 ... 3 V; HIGH = 13 ... 48 V
Input resistance > 10 kΩ
1.6.2 Channel monitoring
Monitoring function Constant monitoring
Sensor signals GOOD range (configuration dependent)
GOOD thresholds
? Lower threshold value Sensor work range lower value ?0.5 V
? Upper threshold value Sensor work range upper value +0.5 V
System voltages Voltage ? OK
