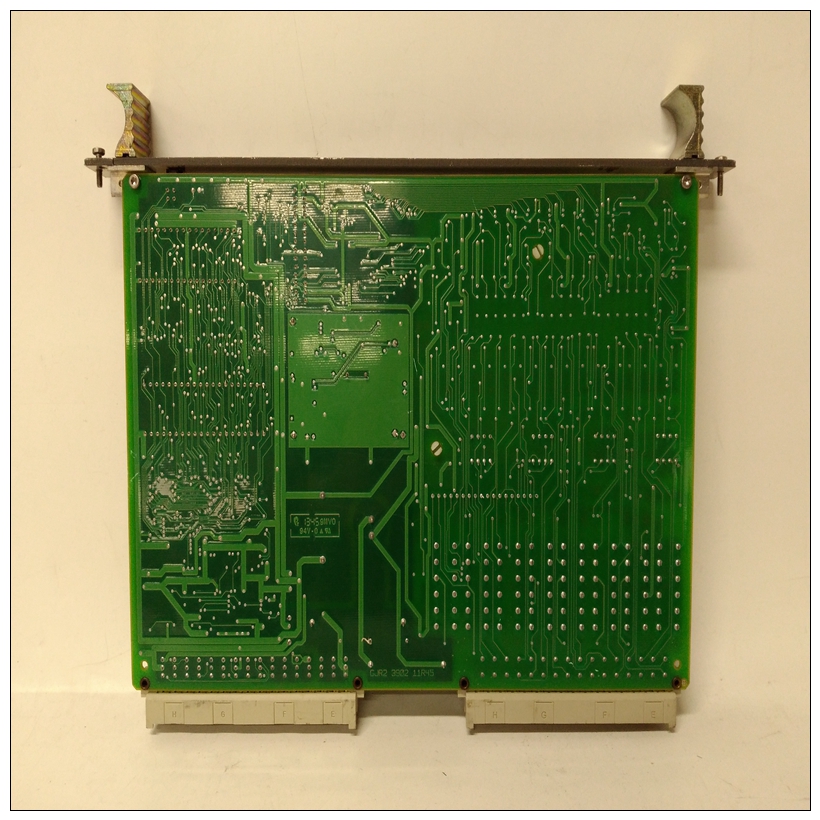

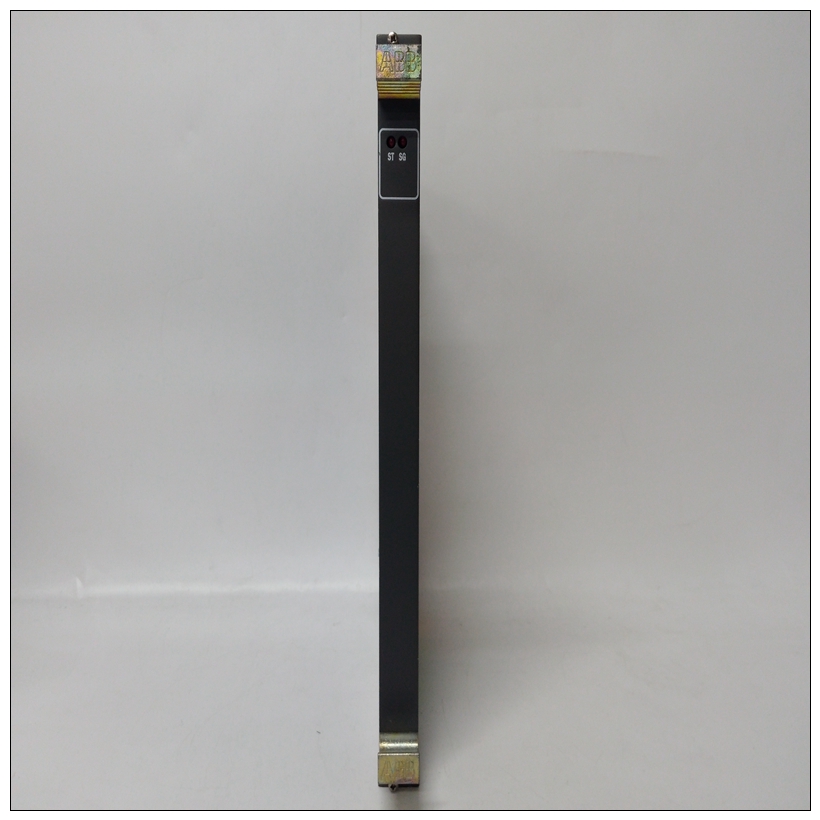

GJR2390211R45模塊卡件,GJR2390211R45用戶手冊
電磁兼容性（EMC）
歐洲EMC指令89/336/EEC符合：EN 50081-2排放標準
EN 50082-2抗擾度標準EN 61326附錄A（工業級）
CISPR 11，工業科學和醫學（ISM）射頻設備—電磁干擾特性
-限值和測量方法
滿足A類限制IEC 61000-4-2 ESD抗擾度觸點4 kV，空氣8 kV
IEC 61000-4-3輻射場抗擾度
80至1000 MHz時為10 V/m
GJR2390211R45模塊卡件IEC 61000-4-4電氣快速瞬態/突發抗擾度
2 kV輸入/輸出、直流電源和通信線
IEC 61000-4-5浪涌抗擾度
交流和直流電源線上的2kV；輸入/輸出1kV和通信線路
電磁兼容性（續）
GJR2390211R45模塊卡件IEC 61000-4-6傳導抗擾度射頻引起的干擾領域
輸入/輸出150 kHz至80 MHz時為10 V（rms），直流電源和通信線路
IEC 61000-4-8工頻磁性現場抗擾度50和60 Hz時為30 A/m
產品安全性美國保險商實驗室（UL）和加拿大
UL/UL-C被列為適用于UL/UL-C列出的I類，A-D組；
第2分部；溫度代碼T4外殼基于系統。這些模塊也是UL
UL-C被列為提供非易燃通信I類A-D組危險電路連接到指定位置時的位置如上所述的I/A Series?處理器模塊
在I/A系列DIN導軌安裝子系統用戶指南（B0400FA）。通信電路也滿足中定義的2類要求
使用條件如I/A系列DIN導軌安裝子系統用戶指南（B0400FA）。
歐洲低壓指令73/23/EEC和爆炸性環境（ATEX）指令94/9/ECCENELEC（DEMKO）認證為
CENELEC中使用的EEx nA[nL]IIC T4認證的2區外殼認證為
為2區IIC組非易燃現場電路供電的相關設備，潛在爆炸性環境
連接到指定的I/A系列處理器I/A系列DIN中所述的模塊軌道安裝子系統用戶指南
Regulatory Compliance
ELECTROMAGNETIC COMPATIBILITY (EMC)
European EMC Directive 89/336/EEC
Meets: EN 50081-2 Emission standard
EN 50082-2 Immunity standard
EN 61326 Annex A (Industrial Levels)
CISPR 11, Industrial Scientific and Medical
(ISM) Radio-frequency Equipment -
Electromagnetic Disturbance Characteristics
- Limits and Methods of Measurement
Meets Class A Limits
IEC 61000-4-2 ESD Immunity
Contact 4 kV, air 8 kV
IEC 61000-4-3 Radiated Field Immunity
10 V/m at 80 to 1000 MHz
IEC 61000-4-4 Electrical Fast
Transient/Burst Immunity
2 kV on I/O, dc power and communication
lines
IEC 61000-4-5 Surge Immunity
2kV on ac and dc power lines; 1kV on I/O
and communications lines
ELECTROMAGNETIC COMPATIBILITY (CONT.)
IEC 61000-4-6 Immunity to Conducted
Disturbances Induced by Radio frequency
Fields
10 V (rms) at 150 kHz to 80 MHz on I/O,
dc power and communication lines
IEC 61000-4-8 Power Frequency Magnetic
Field Immunity
30 A/m at 50 and 60 Hz
PRODUCT SAFETY
Underwriters Laboratories (UL) for U.S. and
Canada
UL/UL-C listed as suitable for use in
UL/UL-C listed Class I, Groups A-D;
Division 2; temperature code T4 enclosure
based systems. These modules are also UL
and UL-C listed as associated apparatus for
supplying non-incendive communication
circuits for Class I, Groups A-D hazardous
locations when connected to specified
I/A Series? processor modules as described
in the I/A Series DIN Rail Mounted
Subsystem User’s Guide (B0400FA).
Communications circuits also meet the
requirements for Class 2 as defined in
Article 725 of the National Electrical Code
(NFPA No.70) and Section 16 of the
Canadian Electrical Code (CSA C22.1).
Conditions for use are as specified in the
I/A Series DIN Rail Mounted Subsystem
User’s Guide (B0400FA).
European Low Voltage Directive 73/23/EEC
and Explosive Atmospheres (ATEX) directive
94/9/EC
CENELEC (DEMKO) certified as
EEx nA [nL] IIC T4 for use in CENELEC
certified Zone 2 enclosure certified as
associated apparatus for supplying non
incendive field circuits for Zone 2, Group IIC,
potentially explosive atmospheres when
connected to specified I/A Series processor
modules as described in the I/A Series DIN
Rail Mounted Subsystem User’s Guide
