ICS TRIPLEX 9300 9832 9802數字量模塊
1.產 品 資 料 介 紹：
中文資料：
ICS Triplex 9300 系列模塊（包括 9832 和 9802 數字量模塊）是高可靠性的工業控制和安全系統中常用的模塊，專為關鍵任務和安全系統設計。以下是其主要產品特點和應用領域：
主要特點
高可靠性：
- 設計符合嚴格的工業和安全標準，適用于高可靠性要求的應用場合。
- 提供高可用性和容錯能力，確保系統的連續運行。
數字量輸入/輸出：
- 支持多種數字量輸入和輸出，適用于各種控制需求。
- 提供快速和精確的數字信號處理能力。
冗余設計：
- 具備冗余設計，保證系統在單個模塊故障時仍能正常運行。
- 支持熱插拔，模塊更換時無需停機，確保系統的高可用性。
模塊化設計：
- 插片式模塊設計，便于安裝、維護和擴展。
- 靈活的配置選項，適應不同的應用需求。
多通信接口：
- 配備多種通信接口，支持與其他控制系統和設備的集成。
- 兼容多種工業通信協議，確保與現有系統的無縫連接。
自診斷功能：
- 具有自診斷和故障檢測功能，能夠快速識別并處理故障。
- 提供實時狀態監測和報警功能，便于維護和故障排除。
應用領域
過程控制：
- 在石油、化工、制藥等行業的過程控制系統中，用于關鍵過程的監測和控制。
- 提供高可靠性的控制和數據處理，確保生產過程的安全和穩定。
發電和能源管理：
- 用于電廠、能源管理系統中的關鍵設備控制和監測。
- 確保發電設備的可靠運行和高效能管理。
交通運輸：
- 在鐵路、地鐵、航空等交通系統中，用于關鍵設備和系統的控制。
- 提供高可靠性和安全性的控制解決方案，保障交通系統的運行安全。
制造自動化：
- 在自動化制造系統中，用于設備和生產線的控制和監測。
- 提高生產效率和產品質量，確保制造過程的連續性和可靠性。
水處理和環保：
- 用于水處理廠、環保系統中的關鍵控制和數據采集。
- 提供可靠的監測和控制，確保環保系統的有效運行。
技術規格（示例）
9300 系列通用規格：
- 輸入電壓范圍：24V DC（典型）
- 工作溫度：-20°C 至 +60°C
- 防護等級：IP20 或更高
- 安裝方式：DIN 導軌安裝或機架安裝
9832 數字輸入模塊：
- 輸入通道數量：32 通道
- 輸入電壓：24V DC
- 輸入類型：數字量輸入，支持干接點和濕接點
- 診斷功能：支持開路檢測和短路檢測
9802 數字輸出模塊：
- 輸出通道數量：32 通道
- 輸出電壓：24V DC
- 輸出電流：最大 0.5A 每通道
- 輸出類型：晶體管輸出，支持過流保護和短路保護
總結
ICS Triplex 9300 系列模塊（包括 9832 和 9802 數字量模塊）憑借其高可靠性、冗余設計、模塊化結構和強大的診斷功能，成為關鍵任務和安全系統中的理想選擇。其廣泛的應用領域和強大的功能，使其在過程控制、發電和能源管理、交通運輸、制造自動化和環保系統等多個行業中發揮關鍵作用，確保系統的高效、安全運行。
英文資料
The ICS Triplex 9300 series modules (including 9832 and 9802 digital modules) are commonly used modules in highly reliable industrial control and safety systems, designed specifically for critical tasks and safety systems. The following are the main product features and application areas:
main features
High reliability:
Designed to meet strict industrial and safety standards, suitable for applications with high reliability requirements.
Provide high availability and fault tolerance to ensure continuous operation of the system.
Digital input/output:
Supports multiple digital inputs and outputs, suitable for various control needs.
Provide fast and accurate digital signal processing capabilities.
Redundant design:
Equipped with redundant design, ensuring that the system can still operate normally in the event of a single module failure.
Support hot swapping, no need to shut down during module replacement, ensuring high availability of the system.
Modular design:
Plug in module design for easy installation, maintenance, and expansion.
Flexible configuration options to meet different application requirements.
Multiple communication interfaces:
Equipped with multiple communication interfaces, supporting integration with other control systems and devices.
Compatible with multiple industrial communication protocols, ensuring seamless connection with existing systems.
Self diagnostic function:
Equipped with self diagnosis and fault detection functions, capable of quickly identifying and handling faults.
Provide real-time status monitoring and alarm functions for easy maintenance and troubleshooting.
application area
Process control:
Used for monitoring and controlling critical processes in process control systems in industries such as petroleum, chemical, and pharmaceutical.
Provide high reliability control and data processing to ensure the safety and stability of the production process.
Power generation and energy management:
Used for key equipment control and monitoring in power plants and energy management systems.
Ensure the reliable operation and efficient management of power generation equipment.
Transportation:
Used for the control of critical equipment and systems in transportation systems such as railways, subways, and aviation.
Provide highly reliable and secure control solutions to ensure the safe operation of the transportation system.
Manufacturing automation:
In automated manufacturing systems, it is used for controlling and monitoring equipment and production lines.
Improve production efficiency and product quality, ensuring the continuity and reliability of the manufacturing process.
Water treatment and environmental protection:
Used for key control and data collection in water treatment plants and environmental protection systems.
Provide reliable monitoring and control to ensure the effective operation of environmental protection systems.
Technical specifications (example)
9300 series universal specifications:
Input voltage range: 24V DC (typical)
Working temperature: -20 ° C to+60 ° C
Protection level: IP20 or higher
Installation method: DIN rail installation or rack installation
9832 Digital Input Module:
Number of input channels: 32 channels
Input voltage: 24V DC
Input type: Digital input, supporting dry and wet contacts
Diagnostic function: Supports open circuit detection and short circuit detection
9802 Digital Output Module:
Number of output channels: 32 channels
Output voltage: 24V DC
Output current: maximum 0.5A per channel
Output type: Transistor output, supporting overcurrent protection and short circuit protection
summary
The ICS Triplex 9300 series modules (including 9832 and 9802 digital modules) are an ideal choice for critical tasks and safety systems due to their high reliability, redundant design, modular structure, and powerful diagnostic capabilities. Its extensive application fields and powerful functions make it play a crucial role in multiple industries such as process control, power generation and energy management, transportation, manufacturing automation, and environmental protection systems, ensuring the efficient and safe operation of the system.

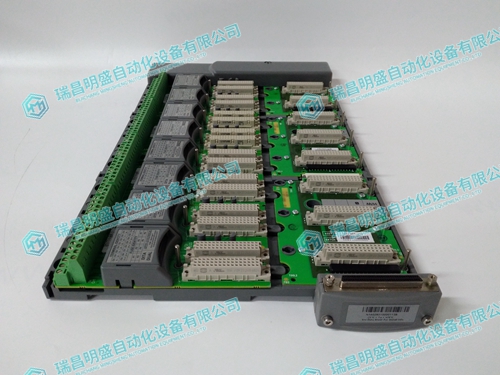

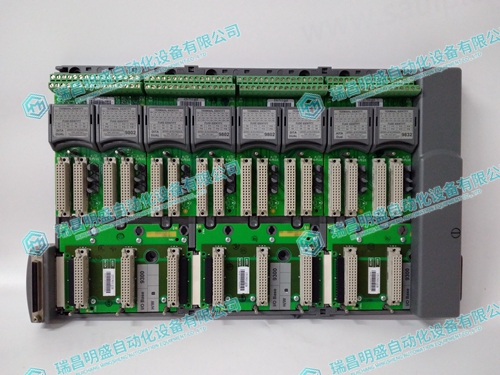

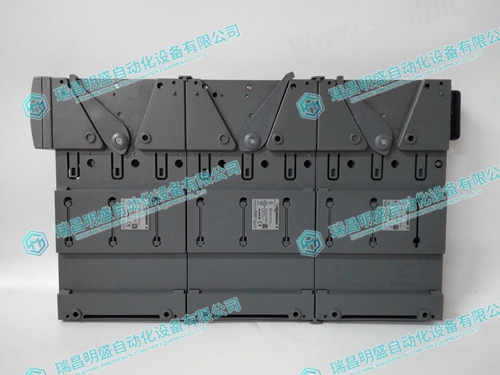

2.產 品 展 示
