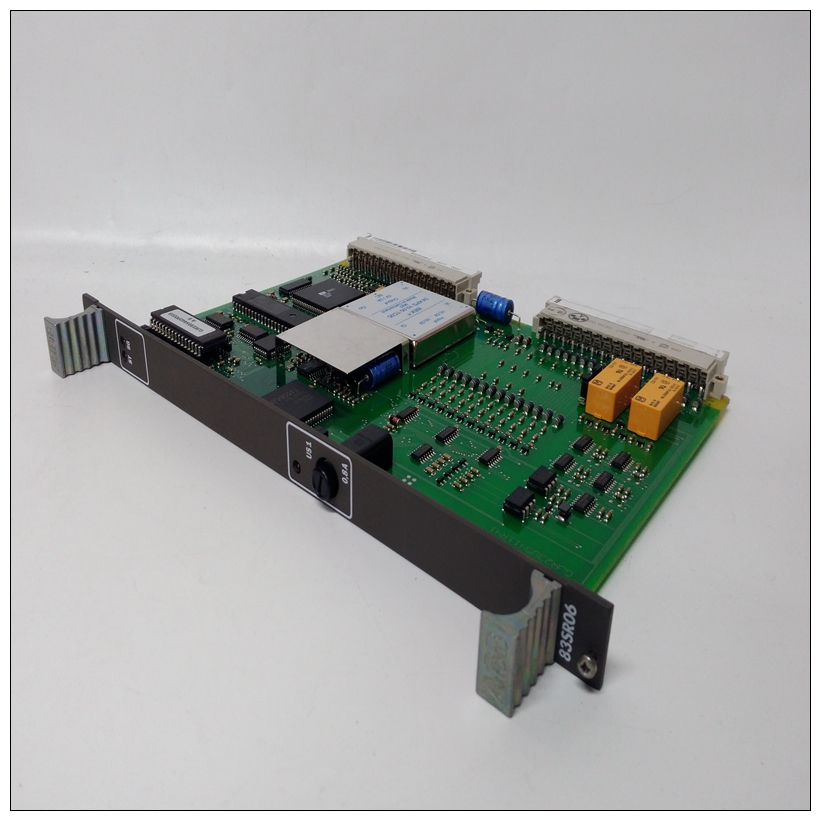

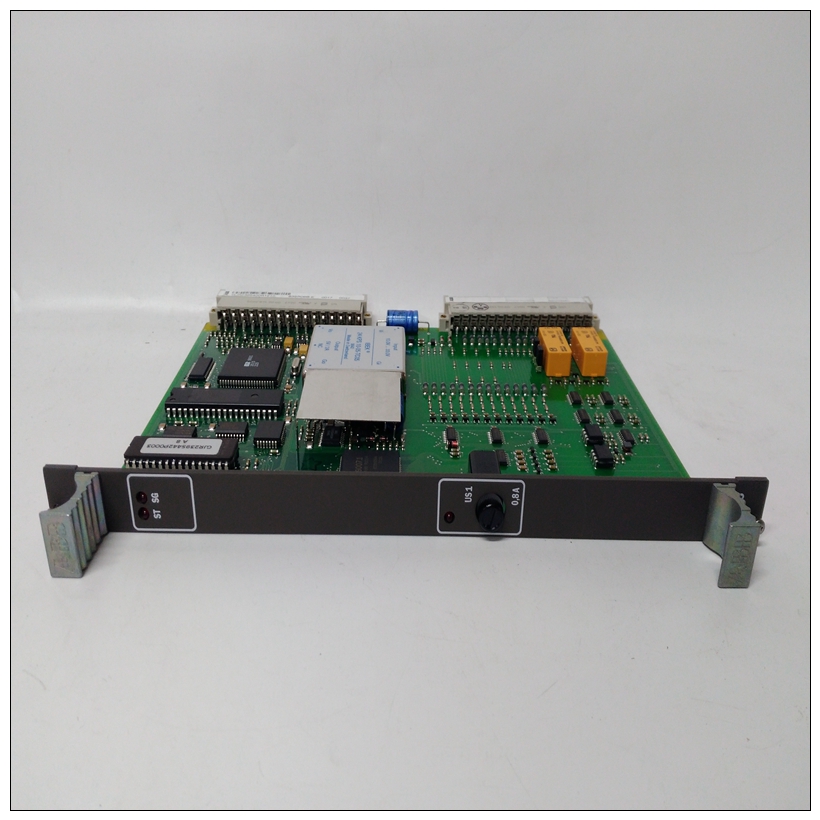

83SR06B-E卡件,產品重量83SR06B-E
模擬輸入（AI）模塊包括三個獨立的輸入通道。
每個輸入通道接收可變電壓來自每個點的信號，轉換它們
轉換為數字值，并傳輸三個主處理器的值按需模塊。在TMR模式下，
然后使用中值選擇算法選擇一個值，以確保為每次掃描更正數據。
每個輸入點的感應為以防止
來自的一個通道上的單一故障
83SR06B-E卡件模擬輸入模塊需要一個獨立的外部終端面板（ETP）
帶Tricon的電纜接口背板。每個模塊都配有機械鍵，以便在Tricon機箱。
影響其他頻道。每個模擬輸入模塊保持完整，每個通道的持續(xù)診斷。
任何診斷失敗通道激活故障指示燈
該模塊依次激活底盤報警信號。模塊的
故障指示器僅報告一個通道故障，不是模塊故障模塊
可以正常運行兩個故障通道。
模擬輸入模塊支持熱備用功能，允許在線更換故障模塊。
Analog Input (AI) Modules includes
three independent input channels. Each
input channel receives variable voltage
signals from each point, converts them
to digital values, and transmits the
values to the three Main Processor
modules on demand. In TMR mode,
one value is then selected using a mid
value selection algorithm to ensure
correct data for every scan.
Sensing of each input point is
performed in a manner that prevents a
single failure on one channel from
Analog Input Modules require a sepa
rate external termination panel (ETP)
with a cable interface to the Tricon
backplane. Each module is mechani
cally keyed for proper installation in a
Tricon chassis.
affecting another channel. Each Analog
Input Module sustains complete,
ongoing diagnostics for each channel.
Failure of any diagnostic on any
channel activates the Fault indicator for
the module, which in turn activates the
chassis alarm signal. The module’s
Fault indicator merely reports a channel
fault, not a module failure—the module
can operate properly with as many as
two faulty channels.
Analog Input Modules support hot
spare capability, which allows online
replacement of a faulty module.
