IC697BEM731總線控制模塊
1.產 品 資 料 介 紹：
中文資料：
IC697BEM731總線控制模塊是一款由GE Fanuc系列90-70系列可編程邏輯控制器（PLC）提供的Genius總線控制器模塊。以下是對該模塊的詳細解析：
1. 主要功能與特點
- 連接能力：IC697BEM731主要用于連接多達30個設備，并通過在同一總線上的所有已配置設備之間傳遞令牌來傳輸數據。
- 通道與端口：該模塊具有1個通道，用于與同一總線上的設備接口；同時，還具備1個手持監視器（HHM）端口，用于使用MS DOS或Windows編程軟件配置器功能將配置下載到模塊。
2. 配置與設置
- 默認配置：模塊在交付時，沒有定義總線地址。配置軟件將默認地址設置為153.6千波特標準和總線地址31。
- 地址修改：可以通過將有效配置下載到CPU來修改默認的總線地址。
- 通信距離與波特率：
- 當配置為153.6千波特（標準）時，通信總線的最大允許距離為2000英尺。
- 配置為153.6千波特（擴展）時，距離為3500英尺。
- 配置為76.8千波特時，距離為4500英尺。
- 配置為38.4千波特時，距離可達7500英尺。
注意：同一總線或網絡上的所有設備必須配置相同的波特率，否則可能導致通信不穩定或無法建立通信。
3. 物理連接與總線電纜
- 總線電纜：GE發那科IC697BEM731總線控制器模用于建立網絡的物理通信電纜是Belden 9182型電纜，GE目錄號為IC660BLC001（15英寸）和IC660BLC003（帶36英寸）。
- 總線端接器：總線端接器插頭必須安裝在總線兩端，目錄號為IC660BLM506（150歐姆）和IC660BLM508（75歐姆）。
4. 其他功能
- 全局數據傳輸：該總線控制器模塊支持通過基于Windows的軟件配置在CPU之間傳輸全局數據。
- 報警系統：可以增加IC697 PLC報警系統，用于在處理器數據表上報告帶有時間戳的故障。
5. 應用場景
IC697BEM731總線控制模塊廣泛應用于工業自動化和控制系統，特別是在需要高效、穩定數據傳輸和管理的場合。
英文資料
The IC697BEM731 bus control module is a Genius bus controller module provided by the GE Fanuc series 90-70 series programmable logic controllers (PLCs). The following is a detailed analysis of the module:
1. Main functions and characteristics
Connection capability: IC697BEM731 is mainly used to connect up to 30 devices and transmit data by passing tokens between all configured devices on the same bus.
Channel and Port: This module has one channel for interface with devices on the same bus; At the same time, it also has one handheld monitor (HHM) port for downloading configurations to modules using MS DOS or Windows programming software configurator functionality.
2. Configuration and Settings
Default configuration: The module is delivered without a defined bus address. The configuration software sets the default address to 153.6 kilobaud standard and bus address 31.
Address modification: The default bus address can be modified by downloading valid configurations to the CPU.
Communication distance and baud rate:
When configured to 153.6 kilobaud (standard), the maximum allowable distance for the communication bus is 2000 feet.
When configured to 153.6 kilobaud (extended), the distance is 3500 feet.
When configured at 76.8 kilobaud, the distance is 4500 feet.
When configured at 38.4 kilobaud, the distance can reach 7500 feet.
Attention: All devices on the same bus or network must be configured with the same baud rate, otherwise it may cause communication instability or inability to establish communication.
3. Physical connections and bus cables
Bus cable: The physical communication cable used for establishing the network in the GE Fanuc IC697BEM731 bus controller module is Belden 9182 cable, with GE catalog numbers IC660BLC001 (15 inches) and IC660BLC003 (with 36 inches).
Bus Terminator: The bus terminator plug must be installed at both ends of the bus, catalog numbers IC660BLM506 (150 ohms) and IC660BLM508 (75 ohms).
4. Other functions
Global Data Transfer: This bus controller module supports the transfer of global data between CPUs through Windows based software configuration.
Alarm system: An IC697 PLC alarm system can be added to report faults with timestamps on the processor data table.
5. Application scenarios
The IC697BEM731 bus control module is widely used in industrial automation and control systems, especially in situations where efficient and stable data transmission and management are required.

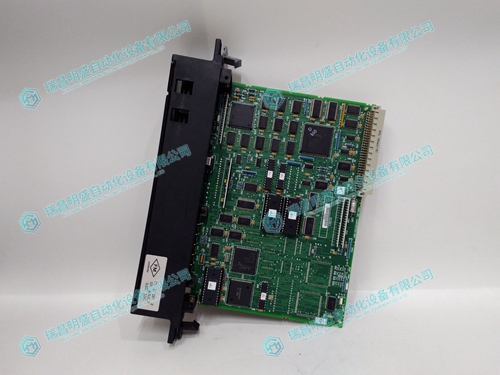

2.產 品 展 示
3.產 品 展 示
