ABB UNITROL 1000 3BHE014557R0003電壓調節器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
UNITROL 1000（型號：3BHE014557R0003）電壓調節器廣泛應用于多種需要精確電壓和無功功率調節的工業和能源領域。其核心功能是控制同步電機的勵磁電流，確保電機端電壓穩定并提升系統的可靠性。以下是其主要應用領域：
1. 發電廠和電力系統
- 同步發電機勵磁控制： 在大型發電廠和電力系統中，UNITROL 1000被用來調節同步發電機的勵磁電流，確保發電機端電壓的穩定輸出。
- 無功功率調節： 用于優化功率因數，提高電力系統的效率和穩定性。
- 電壓穩定性： 確保系統在負載波動或電網擾動情況下保持電壓穩定，避免電力中斷或損壞設備。
2. 工業驅動系統
- 大型電動機驅動： 在大型工業機械和電動機系統中，UNITROL 1000可提供精確的電壓調節，確保電動機的穩定運行，避免過電壓或欠電壓的情況。
- 電力傳輸和配電： 在電力傳輸和配電網中，調節器有助于提升系統的效率，減少損耗，穩定電力質量。
3. 石油、天然氣和化工行業
- 工業設備和泵系統： 在石油和天然氣開采、化工廠等領域，UNITROL 1000用于控制與大功率泵、壓縮機及其他設備相關的電壓調節，確保設備正常運行。
- 動態負載管理： 在復雜的生產環境中，該調節器有助于適應負載的變化，維持電網的穩定性。
4. 水力發電
- 水力發電機控制： 在水力發電站，UNITROL 1000用于精確調節水輪發電機的電壓，優化電力輸出，確保與電網的同步運行。
5. 軌道交通和冶金行業
- 軌道交通電力系統： 用于鐵路運輸系統中的電壓調節，確保列車供電的穩定性，尤其在高壓電力系統中應用廣泛。
- 冶金設備： 在鋼鐵生產中用于調節電力需求，保證高效的設備運行。
6. 船舶和海上平臺
- 船舶電力系統： UNITROL 1000適用于船舶和海上平臺的電力調節，保障關鍵設備的正常運行，尤其是在海上環境下，其高可靠性是必需的。
7. 數據中心和關鍵基礎設施
- 不間斷電源（UPS）系統： 作為備用電源系統的一部分，UNITROL 1000能夠確保數據中心、醫院和其他關鍵基礎設施在電力波動情況下的電壓穩定性。
英文資料：
The UNITROL 1000 (model: 3BHE014557R0003) voltage regulator is widely used in various industrial and energy fields that require precise voltage and reactive power regulation. Its core function is to control the excitation current of synchronous motors, ensure stable motor terminal voltage, and improve system reliability. The following are its main application areas:
1. Power plants and power systems
Synchronous generator excitation control: In large power plants and power systems, UNITROL 1000 is used to regulate the excitation current of synchronous generators to ensure stable output of generator terminal voltage.
Reactive power regulation: used to optimize power factor, improve the efficiency and stability of power systems.
Voltage stability: Ensure that the system maintains voltage stability in the event of load fluctuations or grid disturbances, avoiding power outages or equipment damage.
2. Industrial drive system
Large motor drive: In large industrial machinery and motor systems, the UNITROL 1000 can provide precise voltage regulation to ensure stable operation of the motor and avoid overvoltage or undervoltage situations.
Power transmission and distribution: In power transmission and distribution networks, regulators help improve system efficiency, reduce losses, and stabilize power quality.
3. Petroleum, natural gas, and chemical industries
Industrial equipment and pump systems: In the fields of oil and gas extraction, chemical plants, etc., UNITROL 1000 is used to control voltage regulation related to high-power pumps, compressors, and other equipment to ensure the normal operation of the equipment.
Dynamic load management: In complex production environments, this regulator helps adapt to changes in load and maintain the stability of the power grid.
4. Hydroelectric power generation
Hydroelectric generator control: In hydroelectric power plants, UNITROL 1000 is used to precisely regulate the voltage of the hydro generator, optimize power output, and ensure synchronous operation with the grid.
5. Rail transit and metallurgical industry
Rail transit power system: used for voltage regulation in railway transportation systems to ensure the stability of train power supply, especially widely used in high-voltage power systems.
Metallurgical equipment: used in steel production to regulate electricity demand and ensure efficient equipment operation.
6. Ships and offshore platforms
Ship power system: UNITROL 1000 is suitable for power regulation of ships and offshore platforms, ensuring the normal operation of critical equipment, especially in offshore environments where high reliability is essential.
7. Data centers and critical infrastructure
Uninterruptible Power Supply (UPS) System: As part of the backup power system, the UNITROL 1000 ensures voltage stability for data centers, hospitals, and other critical infrastructure in the event of power fluctuations.

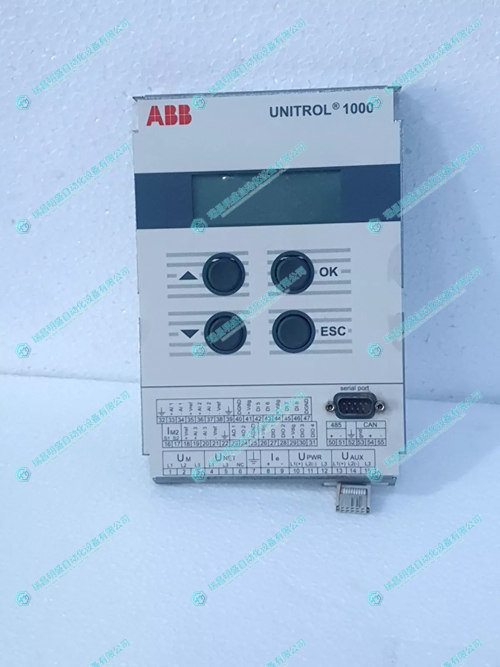

2.產 品 展 示
