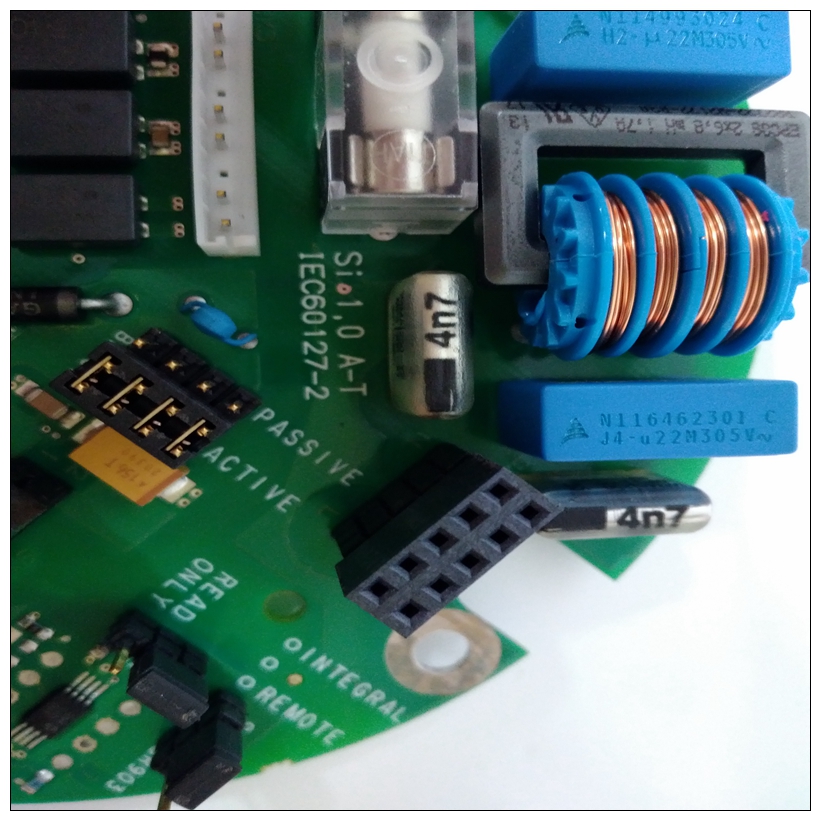

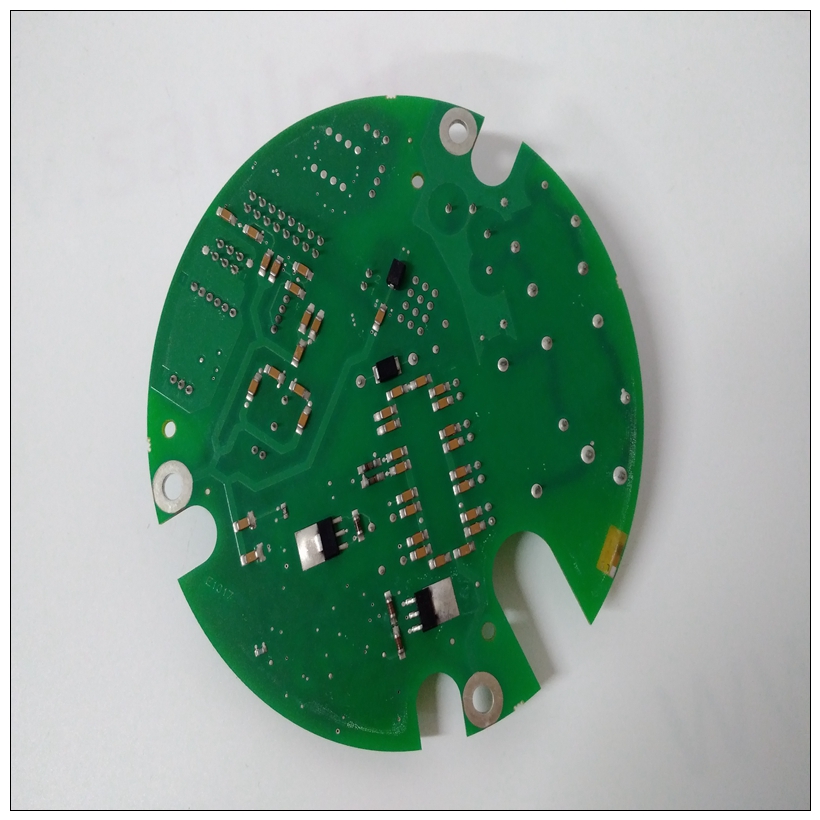

D685A1156U01電磁流量計，ABB如何使用
開箱說明注意：如果裝運紙箱在收到后損壞將設備從裝運箱中取出在場以及設備的檢裝箱單并確認所有物品均已存在。保存包裝設備儲存和重新裝運的材料。啟動程序概述下表列出了您之前需要做的事情你可以使用這個板，在哪里可以找到你需要的信息每個步驟。一定要閱讀這整章，并閱讀所有內容開始前的注意事項。
D685A1156U01電磁流量計硬件準備MVME147已經過工廠測試，出廠時配有工廠安裝的跳線，配置為提供系統功能系統需要。該模塊在以下情況下運行：工廠安裝的跳線，但要選擇所需的配置并確保MVME147的正確操作，某些選項可能需要修改。通過在上安裝或拆卸跳線來選擇選項以下標題：? ROM配置選擇（J1、J2）? 系統控制器選擇（J3）? 串行端口4時鐘配置選擇（J8、J9）ROM配置選擇標題（J1、J2）MVME147支持各種尺寸的EPROM和EEPROM。四個32針ROM/PROM/EPROM/EEPROM插槽為模塊上提供。它們被組織為兩個銀行，兩個每個氣缸組的插座。每對插座可以單獨安裝已配置。插座U22和U30形成氣缸組1。插座U1和U15表2。這些組被配置為使用U22和U1包括偶數字節，U30和U15包括奇數字節調試器軟件EPROM安裝在插槽U22和U30中。注意，有幾種不同的算法用于擦除/寫入EEPROM設備取決于制造商MVME147僅支持這些與“靜態RAM”兼容的設備擦除/寫入機制，如Xicor X28256或X2864H。
The MVME712 hardware preparation is provided in separate
manuals. Refer to Related Documentation in Chapter 1.
Unpacking Instructions
Note If the shipping carton is damaged upon receipt, request
that the carrier's agent be present during unpacking
and inspection of the equipment.
Unpack the equipment from the shipping carton. Refer to the
packing list and verify that all items are present. Save the packing
material for storing and reshipping of the equipment. Overview of Start-up Procedure
The following list identifies the things you will need to do before
you can use this board, and where to find the information you need
to perform each step. Be sure to read this entire chapter and read all
Caution notes before beginning. Hardware Preparation
The MVME147 has been factory tested and is shipped with factoryinstalled jumpers configured to provide the system functions
required for a VMEbus system. The module is operational with the
factory-installed jumpers, but to select the desired configuration
and ensure proper operation of the MVME147, certain option
modifications may be necessary.
Options are selected by installing or removing jumpers on the
following headers:
? ROM configuration select (J1, J2)
? System controller select (J3)
? Serial port 4 clock configuration select (J8, J9)
ROM Configuration Select Headers (J1, J2)
The MVME147 supports various sizes of EPROMs and EEPROMs.
Four 32-pin ROM/PROM/EPROM/EEPROM sockets are
provided on the module. They are organized as two banks with two
sockets per bank. Each pair of sockets may be individually
configured. Sockets U22 and U30 form bank 1. Sockets U1 and U15
form bank 2.
The banks are configured as word ports to the MPU with U22 and
U1 comprising the even bytes and U30 and U15 the odd bytes.
