產品內容介紹

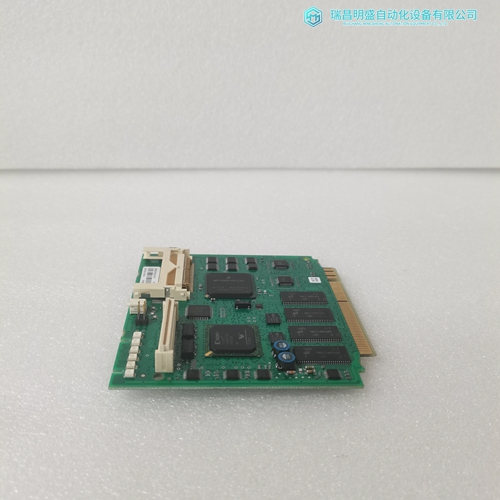

3BSE050201R1系統控制模塊
將示例程序下載到處理器
注：ControlLogix處理器前面的按鍵開關必須處于REM或PROG位置。
1如果處理器尚未聯機，請打開“通信”菜單，然后選擇“下載”。RSLogix 5000將與處理器建立通信。
如圖所示，不必使用處理器的串行端口進行下載?？梢酝ㄟ^任何可用的網絡連接進行下載。
2建立通信后，RSLogix 5000將打開一個確認對話框盒單擊DOWNLOAD按鈕將示例程序傳輸?shù)教幚砥鳌?br/>
3 RSLogix 5000將編譯程序并將其傳輸?shù)教幚砥?。這個過程可能需要幾分鐘。
4下載完成后，RSLogix 5000將打開另一個確認對話框盒如果按鍵開關處于REM位置，請單擊“確定”將處理器從PROGRAM（程序）模式至RUN（運行）模式。
注意：如果在這些步驟中收到錯誤消息
請參閱RSLogix文檔進行解釋并更正錯誤
使用ProSoft Configuration Builder軟件ProSoft Configuration Builder（PCB）提供了管理模塊的便捷方法為滿足應用程序需求而定制的配置文件。
PCB不僅是一個強大的新配置文件的解決方案，還允許從以前為新項目安裝的（已知正在工作的）配置。
注：在啟動和初始化期間，MVI56E-SIE模塊接收其協議和底板來自已安裝個性模塊（閃存）的配置信息。
使用ProSoft配置生成器配置模塊設置并下載對個性模塊的更改。
如果以前使用過其他Windows配置工具，屏幕布局將為發現很熟悉。PCB窗口由左側的樹狀視圖和信息組成窗格和窗口右側的配置窗格。
首次啟動PCB時，樹狀視圖由“默認項目”和“默認位置”的文件夾組成，其中“默認”默認位置文件夾中的模塊。下圖顯示了PCB窗口一個新項目。第一個任務是將MVI56E-SIE模塊添加到項目中。
1使用鼠標在樹狀視圖中選擇默認模塊，然后單擊右側鼠標鍵打開快捷菜單。
2在快捷菜單上，選擇“選擇模塊類型”。此操作將打開“選擇”“模塊類型”對話框。
3在對話框的Product Line Filter區域中，選擇MVI56E。
在選擇模塊中鍵入下拉列表，選擇MVI56E-SIE，然后單擊“確定”保存設置并返回ProSoft Configuration Builder窗口。
Downloading the Sample Program to the Processor
Note: The key switch on the front of the ControlLogix processor must be in the REM or PROG position. 1 If the processor is not already online, open the Communications menu, and then choose DOWNLOAD. RSLogix 5000 will establish communication with the processor. Download does not have to occur using the processor's serial port, as shown here. Download may be achieved through any available network connection. 2 When communication is established, RSLogix 5000 will open a confirmation dialog box. Click the DOWNLOAD button to transfer the sample program to the processor. 3 RSLogix 5000 will compile the program and transfer it to the processor. This process may take a few minutes. 4 When the download is complete, RSLogix 5000 will open another confirmation dialog box. If the key switch is in the REM position, click OK to switch the processor from PROGRAM mode to RUN mode. Note: If an error message is recieved during these steps, refer to the RSLogix documentation to interpret and correct the error.
Using ProSoft Configuration Builder Software ProSoft Configuration Builder (PCB) provides a convenient way to manage module configuration files customized to meet application needs. PCB is not only a powerful solution for new configuration files, but also allows importing of information from previously installed (known working) configurations to new projects. Note: During startup and initialization, the MVI56E-SIE module receives its protocol and backplane configuration information from the installed Personality Module (Compact Flash). Use ProSoft Configuration Builder to configure module settings and to download changes to the Personality Module.
If other Windows configuration tools
have been used before, the screen layout will be found to be familiar. PCB’s window consists of a tree view on the left, and an information pane and a configuration pane on the right side of the window. When first starting PCB, the tree view consists of folders for Default Project and Default Location, with a Default Module in the Default Location folder. The following illustration shows the PCB window with a new project.The first task is to add the MVI56E-SIE module to the project. 1 Use the mouse to select DEFAULT MODULE in the tree view, and then click the right mouse button to open a shortcut menu. 2 On the shortcut menu, select CHOOSE MODULE TYPE. This action opens the Choose Module Type dialog box. 3 In the Product Line Filter area of the dialog box, select MVI56E. In the Select Module Type dropdown list, select MVI56E-SIE, and then click OK to save the settings and return to the ProSoft Configuration Builder window.
