產品內容介紹

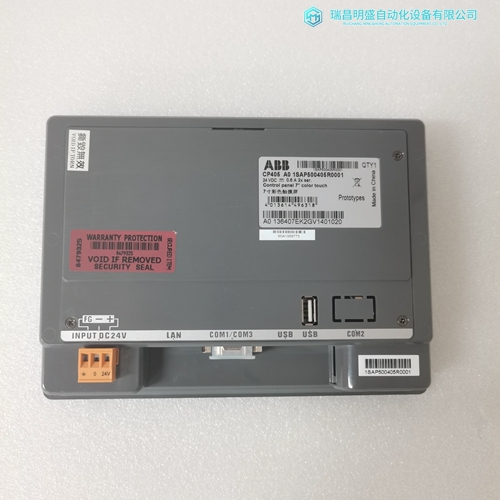

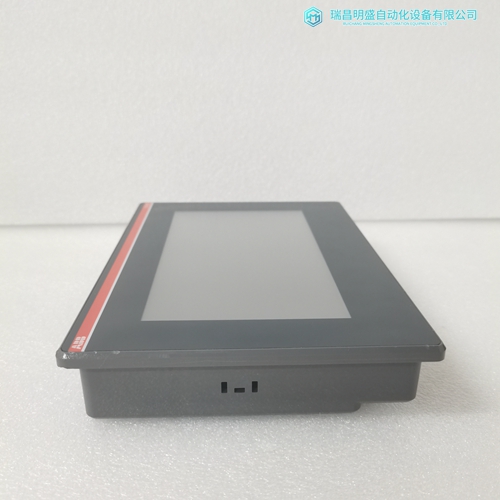

1SAP500405R0001操作控制屏
設置跳線充當模塊固件的“寫保護”。In“寫入”保護”模式，設置引腳未連接，模塊固件無法被覆蓋。模塊出廠時設置跳線為OFF。
請勿跳線除非ProSoft技術支持（或要更新模塊固件）。
下圖顯示了設置跳線關閉時的跳線配置。
如果要在遠程機架中安裝模塊，您可能更喜歡讓設置引腳跳線。
這樣，您就可以更新模塊的固件，而無需對模塊進行物理訪問。
安全注意事項：
將設置引腳保持跳線狀態會導致模塊出現意外固件更新。
出于安全原因，您應該考慮對數據流進行分段。根據IEC 62443-1-1，您應該對齊采用IEC 62443，實現控制系統的分段。相關功能包括防火墻、單向通信，DMZ。石油和天然氣客戶還應參見DNVGL-RP-G108以獲取指導分區。
您應該按照IEC 62443-4-1的要求，通過設計來實踐安全，包括安全和檢測層。
這個模塊依賴于整體網絡安全設計，因?yàn)樗皇菓?yīng)該定義的內容的一個組件分區或子網在機架中安裝模塊
如果尚未安裝和配置ControlLogix處理器和電源，請?jiān)诎惭bMVI56E-SIE模塊之前執行此操作。
參考羅克韋爾用于安裝說明的自動化產品文檔。
警告：安裝本設備或任何其他電子設備時，必須遵守所有安全說明。
不遵守安全程序可能導致硬件或數據損壞，甚至嚴重傷害或人員死亡。
請參閱將要連接的每個設備的文檔，以驗證是否適合在安裝或維修設備之前，安全程序已經到位。
檢查跳線位置后，將MVI56E-SIE插入ControlLogix底盤。
使用羅克韋爾自動化推薦的相同技術以卸下和安裝ControlLogix模塊。
可以在機箱電源接通時安裝或卸下ControlLogix系統組件已應用，系統正在運行。
但是，請注意以下警告當?shù)装咫娫创蜷_時插入或卸下模塊時，可能會發生電弧。
電弧會向系統的執行器。這可能導致機器意外移動或失去過程控制。
電弧在危險環境中發生時也可能導致爆炸。
確認電源已斷開或該區域在繼續之前是無害的。
重復電弧會導致模塊及其配套接頭上的觸點過度磨損。
磨損的觸點可能會產生電阻，從而影響模塊的操作。
Setting Jumpers
The Setup Jumper acts as "write protection" for the module’s firmware. In "write protected" mode, the Setup pins are not connected, and the module’s firmware cannot be overwritten. The module is shipped with the Setup jumper OFF. Do not jumper the Setup pins together unless you are directed to do so by ProSoft Technical Support (or you want to update the module firmware). The following illustration shows the jumper configuration with the Setup Jumper OFF.If you are installing the module in a remote rack, you may prefer to leave the Setup pins jumpered. That way, you can update the module’s firmware without requiring physical access to the module. Security considerations: Leaving the Setup pin jumpered leaves the module open to unexpected firmware updates. You should consider segmenting the data flow for security reasons. Per IEC 62443-1-1, you should align with IEC 62443 and implement segmentation of the control system. Relevant capabilities are firewalls, unidirectional communication, DMZ. Oil and Gas customers should also see DNVGL-RP-G108 for guidance on partitioning. You should practice security by design, per IEC 62443-4-1, including layers of security and detection. The module relies on overall network security design, as it is only one component of what should be a defined zone or subnet
Installing the Module in the Rack
If the ControlLogix processor and power supply have not been installed and configured, please do so before installing the MVI56E-SIE module. Refer to the Rockwell Automation product documentation for installation instructions. Warning: All safety instructions must be followed when installing this or any other electronic devices. Failure to follow safety procedures could result in damage to hardware or data, or even serious injury or death to personnel. Refer to the documentation for each device that will be connected to verify that suitable safety procedures are in place before installing or servicing the device. After the placement of the jumpers has been checked, insert the MVI56E-SIE into the ControlLogix chassis. Use the same technique recommended by Rockwell Automation to remove and install ControlLogix modules. ControlLogix system components can be installed or removed while chassis power is applied and the system is operating. However, please note the following warning When the module is inserted or removed while backplane power is on, an electrical arc can occur. An electrical arc can cause personal injury or property damage by sending an erroneous signal to the system’s actuators. This can cause unintended machine motion or loss of process control. Electrical arcs may also cause an explosion when they happen in a hazardous environment. Verify that power is removed or the area is non-hazardous before proceeding. Repeated electrical arcing causes excessive wear to contacts on both the module and its mating connector. Worn contacts may create electrical resistance that can affect module operation.
公司主營產品圖展示
產品優勢
1：國外專業的供貨渠道，具有價格優勢
2：產品質量保證，讓您售后無憂
3：全國快遞包郵
4：一對一服務
公司主營范圍簡介
PLC可編程控制器模塊，DCS卡件，ESD系統卡件，振動監測系統卡件，汽輪機控制系統模塊，燃?xì)獍l(fā)電機備件等，優勢品牌：Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS Triplex、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、TRICONEX、Prosoft等各種進口工業零部件、歐美進口模塊。
產品廣泛應用于冶金、石油天然氣、玻璃制造業、鋁業、石油化工、煤礦、造紙印刷、紡織印染、機械、電子制造、汽車制造、塑膠機械、電力、水利、水處理/環保、鍋爐供暖、能源、輸配電等等
