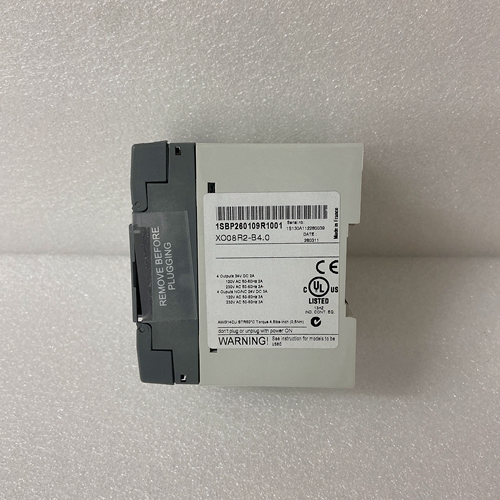

XO08R2數控模塊
旋轉變壓器系統
輸出信號通過R/D硬件電路開發，以實現最小相位滯后，并具有：由電機速度和R/D限制確定的最大頻率。它提供了一個可配置的（ENCOUT）電機每旋轉一圈，分辨率高達16384行（65536個四路計數）
軸索引脈沖（INDEXPOS）的位置可在以下分解器系統上變化：360度電角度的反饋信號。對于單速分解器，這意味著您可以改變?cè)撔盘?hào)在一個機械旋轉中的位置。對于多速旋轉變壓器機械位置變化由分解器的極對計數確定（例如，三速分解器在1/3轉內給出脈沖的機械變化）。
編碼器系統
輸出信號是實際編碼器反饋信號，在驅動器的電機參數。它可以按2的倍數縮小（編碼：1、2、4、8、16）并且具有3MHz的最大頻率限制。用于指示異常操作狀態：
如果位置保持功能激活，OPMODE編號將以1 Hz的頻率閃爍速度
如果檢測到故障，將顯示閃爍代碼以識別故障。
某些代碼由兩個或更多數字組成（請參閱故障排除部分）。通常，這些故障將導致鎖存禁用（有時可通過軟件開關控制）。
要清除故障，請切換遠程啟用（過電流除外）
如果編碼器初始化功能（ENCSTART）激活，則OPMODE數字將以3 Hz的頻率閃爍。SERVOSTAR CD-Lite能夠采用不同的操作模式。這是一家工廠配置為OPMODE=1（模擬速度控制器），但可由用戶重新配置。并非全部命令和變量在每個操作模式下都是活動的或有意義的。OPMODE=1模擬速度控制器。SERVOSTAR CD Lite配置為速度回路控制器，通過±10V模擬輸入信號進行控制。
指令速度與輸入電壓成比例。OPMODE=3模擬轉矩（電流）控制器。SERVOSTAR CD-Lite是
配置為扭矩回路控制器，并通過±10 V模擬控制
輸入信號。指令電流與輸入電壓成比例。
系統輸入/輸出
本節討論C3連接器的輸入/輸出功能（C2上的恒溫器輸入除外，請參閱附錄）。電氣規格見《快速啟動指南》。模擬輸入（ANIN1）
速度或扭矩回路可從模擬電壓源接收其指令，并可選擇通過OPMODE變量。SERVOSTAR CD-Lite的模擬輸入是差分的。這意味著兩個輸入端接收到的信號彼此相減以產生“差”
用于命令系統的其余部分。這種類型的輸入具有高度的抗噪性并且，在許多情況下，將允許系統之間的接地隔離。該模擬輸入也具有低電平通過濾波器（ANLPFHZ）防止高頻噪聲進入系統。
Resolver Systems
The output signal is developed through the R/D hardware circuitry for minimal phase lag and has
a maximum frequency determined by the motor speed and R/D limits. It provides a configurable
(ENCOUT) resolution of up to 16384 lines (65536 quad counts) per revolution of the motor
shaft. The placement of the index pulse (INDEXPOS) can be varied on resolver systems within
360 electrical degrees of the feedback signal. For single-speed resolvers, this means you can vary
the position of this signal over one mechanical revolution. For multi-speed resolvers, the
mechanical position variation is determined by the pole-pair count of the resolver (e.g. threespeed resolver gives mechanical variation of the pulse within 1/3 of a revolution).
Encoder Systems
The output signal is the actual encoder feedback signal that is pre-configured (MENCRES) in the
drive’s motor parameters. It can be scaled down by multiples of two (ENCOUTO: 1, 2, 4, 8, 16)
and has a maximum frequency limit of 3 MHz. Used to indicate an abnormal operating state:
If the position hold feature is active, the OPMODE number will flash at a 1 Hz
rate.
If a fault was detected, a flashing code will be displayed to identify the fault.
Some codes consist of a sequence of two or more digits (see Troubleshooting
section). In general, these faults will cause a latched disable (sometimes
controllable through software switches). To clear fault, toggle remote enable
(except for OverCurrent).
If the encoder initialization function (ENCSTART) is active, the OPMODE
number will flash at a 3 Hz rate. The SERVOSTAR CD-Lite has the ability to assume different modes of operation. It is factory
configured in OPMODE=1 (Analog Velocity Controller) but may be reconfigured by the user. Not all
commands and variables are active or meaningful in every OPMODE.
OPMODE = 1 Analog Velocity Controller. The SERVOSTAR CD-Lite is configured as a
velocity-loop controller and is controlled via a ± 10V analog input signal.
The commanded velocity is proportional to the input voltage.
OPMODE = 3 Analog Torque (Current) Controller. The SERVOSTAR CD-Lite is
configured as a torque-loop controller and is controlled via a ± 10 V analog
input signal. The commanded current is proportional to the input voltage.
System I/O
This section discussions the I/O features of the C3 connector (except for the Thermostat input on C2 see
appendix). Electrical specifications are in the Quick Start Guide.
Analog Input (ANIN1)
The velocity or torque loop can receive its command from an analog voltage source and is selectable
through the OPMODE variable. The analog input to the SERVOSTAR CD-Lite is differential. This
means that the signals received at the two inputs are subtracted from each other to create a ‘difference,’
that is used to command the rest of the system. This type of input has a high degree of noise immunity
and, in many cases, will allow for ground isolation between systems. This analog input also has a low
pass filter (ANLPFHZ) to prevent high frequency noise from entering the system.
