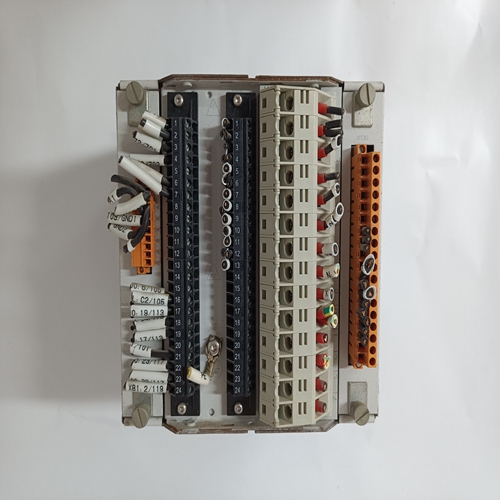

REF615C_C控制觸摸屏
來自C相和A相的電壓信號
ADC使用發電機的（VC-A）計算發電機跨相電壓的均方根值類似地，來自發電機相C和B（VC-B）的電壓信號由ADC用于計算C相和B相發電機電壓的均方根值。發電機B相的均方根值
微處理器根據C相至A相信號（VC-A）計算A相電壓（VB-A），以及相位C到相位B（VC-B）信號。
此外，發電機C相至A相（VC-A）信號應用于濾波過零檢測器環行該信號應用于微處理器，用于計算發電機頻率。B相線路電流
B相線路電流（IB）信號通過客戶提供的電流互感器（CT）產生并通過端子CT1和CT2進行監控。根據所選選項，電流可達1安培（型號xx1）或5安培（型號xx5）rms可在這些端子上進行監測。這個在這些端子處監測的電流由內部電流互感器進行縮放和調節，以及ADC使用的有源電路。應用于ADC的信號用于計算B相線路電流。此外，B相線路電流與C相至A相發電機電壓之間的相位角為計算用于下垂和無功/功率因數運行。
附件輸入（輔助調整）該輸入允許通過應用正或來調整DECS-100調節設定點端子A和B之間的負直流電壓。
施加到端子A的正電壓
端子B將導致激活模式設定點增加。可將-3至+3 Vdc的電壓施加至：這個輸入。該電路在直流電源上感應出1000歐姆的負載?！? Vdc信號的應用對應于設定點的±30%變化。
電壓對調節器磁場輸出端子F+和F-上的電壓（VFIELD）進行監控、定標和在施加到ADC之前進行調節。該信號用于計算磁場電壓的直流值用于系統保護。
電流通過主功率輸出開關的電流（IFIELD）被轉換成比例電壓電平。這電壓信號在被施加到ADC的輸入之前被縮放和調節。結果被使用計算磁場電流的直流值，用于手動操作模式和保護系統。
接觸輸入電路由內部13 Vdc電源供電的五個觸點輸入電路從用戶提供的隔離干式觸點提供輸入控制。
提升閉合端子6U和7之間的觸點會導致有效工作設定值增加。這只要觸點閉合，功能就會激活。
降低閉合端子6D和7之間的觸點會導致有效工作設定值降低。這只要觸點閉合，功能就會激活。
The voltage signal from phase C and A
(VC-A) of the generator is used by the ADC to calculate the rms value of generator voltage across phases
C and A. Likewise, the voltage signal from phase C and B (VC-B) of the generator is used by the ADC to
calculate the rms value of generator voltage across phases C and B. The rms value of generator phase B
to phase A voltage (VB-A) is calculated by the microprocessor from the phase C to phase A signal (VC-A)and
the phase C to phase B (VC-B) signal.
Additionally, the generator phase C to phase A (VC-A) signal is applied to a filtered, zero-cross detector
circuit. This signal is applied to the microprocessor and is used to calculate generator frequency.
B-Phase Line Current
The phase B line current (IB) signal is developed through a customer supplied current transformer (CT)
and monitored through terminals CT1 and CT2. Depending on the option selected, current up to 1 ampere
(style number xx1) or 5 amperes (style number xx5) rms may be monitored at these terminals. The
current monitored at these terminals is scaled and conditioned by an internal current transformer and
active circuitry for use by the ADC. The signal applied to the ADC is used to calculate the rms value of
phase B line current.
Additionally, the phase angle between phase B line current and phase C to phase A generator voltage is
calculated for use during droop and var/power factor operation.
Accessory Input (Auxiliary Adjust)
This input allows adjustment of the DECS-100 regulation setpoint by the application of a positive or
negative dc voltage across terminals A and B. Positive voltage applied to terminal A with respect to
terminal B will cause the active mode setpoint to increase. Voltage from –3 to +3 Vdc may be applied to
this input. The circuit induces a 1,000-ohm burden on the dc source. The Application of a ±3 Vdc signal
corresponds to a ±30 percent change in setpoint.
Field Voltage
Voltage (VFIELD) across the regulator field output terminals, F+ and F–, is monitored, scaled, and
conditioned before being applied to the ADC. This signal is used to calculate the dc value of field voltage
for use in system protection.
Field Current
Current (IFIELD) through the main power output switch is converted to a proportional voltage level. This
voltage signal is scaled and conditioned before being applied to the input of the ADC. The result is used
to calculate the dc value of field current for use in the Manual mode of operation as well as protection of
the system.
Contact Input Circuits
Five contact input circuits powered from an internal 13 Vdc power supply provide input control from usersupplied, isolated, dry-type contacts.
Raise
Closing a contact across terminals 6U and 7 causes the active operating setpoint to increase. This
function is active as long as the contact is closed.
Lower
Closing a contact across terminals 6D and 7 causes the active operating setpoint to decrease. This
function is active as long as the contact is closed.
