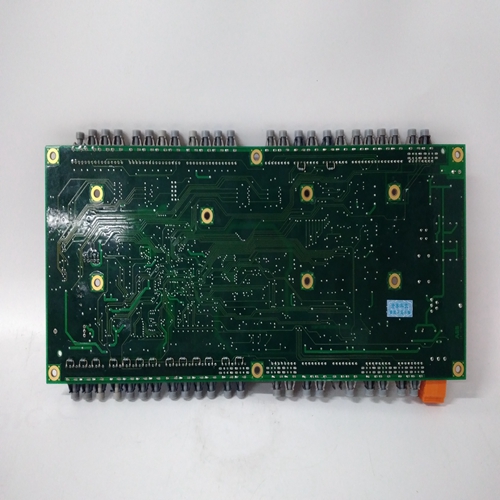

3BHE0Q4573R1142邏輯順序卡件
?將信號線與負荷線分開布線，以避免干擾。
?通過屏蔽傳導模擬信號（如命令/實際值）引導。
?電源、直流母線和電源線不應連接至低電壓或與它們接觸。
?在進行任何高壓或外部電壓測試時加工驅動部件的所有信號和電源連接
必須移除。這可保護電子部件（允許根據EN 60204-1）。力士樂Indramat驅動組件按照EN 50178進行高壓和絕緣測試。要釋放驅動，必須提供繼電器+處的驅動鎖定釋放裝置具有24V。該電壓為X4引腳1。如果使用該內部電壓源，則不必連接X(jué)4引腳2。如果外部24V為電壓源，則必須連接到X4引腳3繼電器+和X4引腳20V。ASQ，ASQ：無電勢反饋觸點，確認開始鎖定外部控制裝置。
制動容量：直流24 V，1 A（最大=持續時間）
驅動控制器中啟動鎖定繼電器的啟動為：
通過關閉無電勢反饋觸點（輸出）確認ASQ-ASQ）發送到外部控制。應使用力士樂Indramat電機電源電纜連接驅動器控制器和電機。在力士樂Indramat電機電纜內，有：
?電機電源連接的三條電源線，以及
?一條線路用于接地導線連接?電機溫度監測器的一對單獨屏蔽線
?電機保持制動器的單獨屏蔽線對
?以及安裝在屏蔽附件上的完整屏蔽。
電機電源電纜作為力士樂的標準電纜提供
因德拉馬特。電纜也可以由四個絞合的獨立電源組成
線路（3相，1根接地導線）具有單獨傳導的，
用于溫度監測和制動器連接的屏蔽電源線。
有關連接和直徑的補充技術信息，參見相關電機說明。
如果力士樂Indramat電纜：習慣于相鄰的驅動器控制器通常通過利茲線連接
（隨驅動器一起提供）。如果不可能使用這些連接線，則使用短至以下的扭絞電源線建立連接：
可能（最大長度為1米，最大直徑為16 mm2）。
Route signal lines separately from load lines to avoid interference.
? Conduct analog signals (e.g., command/actual values) via shielded
leads.
? Mains, DC bus and power lines should not be connected to low
voltages or come into contact with them.
? When carrying out any high voltage or external voltage testing of the
machine all signal and power connections to the drive components
must be removed. This protects the electronic components (allowed
as per EN 60204-1). Rexroth Indramat drive components are highvoltage and insulation tested as per EN 50178.To release the drive, the drive lockout release at relay + must be supplied
with 24V. This voltage is at X4 pin1. If this internal voltage source is used,
then X4 pin2 does not have to be connected. If an external 24V is the
voltage source, then it must be connected to X4 pin3 relay+ and X4 pin2
0V.
ASQ, ASQ:
Potential-free feedback contact which acknowledges the actuating of the
starting lockout to an external control.
Braking capacity: DC 24 V, 1 A (maximum = duration)
The actuation of the relay of the starting lockout in the drive controller is
confirmed by the closing of the potential-free feedback contact (output
ASQ - ASQ) to the external control.Rexroth Indramat motor power cables should be used to connect drive
controller and motor.
Inside an Rexroth Indramat motor power cable there are
? three supply lines for the motor power connection and
? one line for the ground conductor connection
? a separately shielded pair of lines for the motor temperature monitor
? a separately shielded pair of lines for the motor holding brake
? and a complete shield mounted to the shield attachment.
The motor power cable is available as a standard cable from Rexroth
Indramat. The cable can also be made of four twisted individual supply
lines (3 phases, 1 grounded conductor) with a separately conducted,
shielded supply line for temperature monitoring and the brake connection.
For supplementary technical information on connections and diameters,
see the relevant motor description.
Maximum cable lengths equal 75 meters if Rexroth Indramat cables are
used.
Adjacent drive controllers are generally connected via the litz wires
(shipped with the drive).
If it should not be possible to use these connecting litz wires, then
establish the connection with twisted supply lines that are as short as
possible (maximum length of one meter, maximum diameter 16 mm2).
