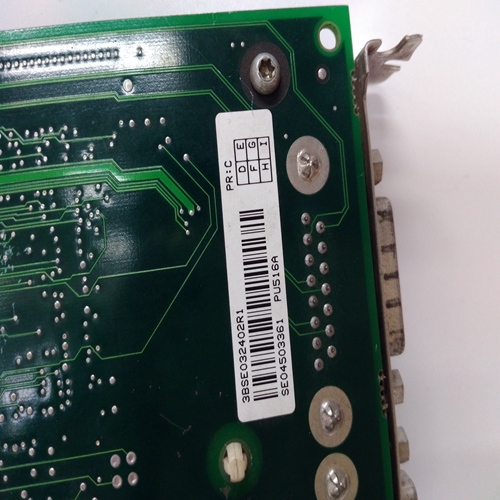

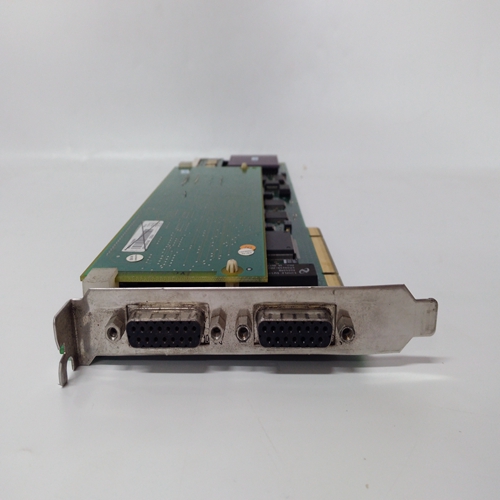

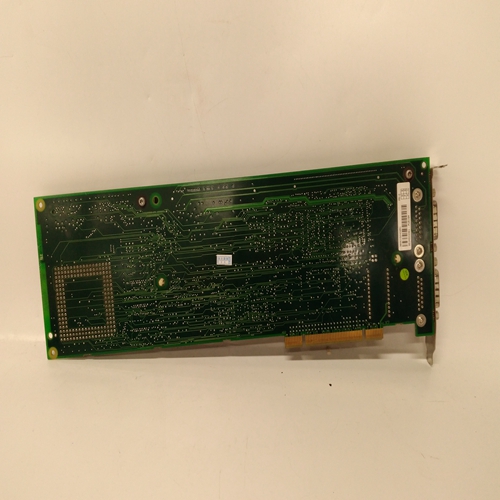

PU516A電路板
模擬輸出模塊提供隔離電流回路輸出
其跟隨傳感器信號電平。輸出電路是無源的電流控制元件，可在回路電壓高達40V。
推薦的連接如下所示：模擬輸出+0V+24V（10V至40V）
繼電器/現場接口卡
05701-A-0326
05701-A-0327
05701-A-0328
05701-A-0329
可編程思維方式控制器
隔離模擬輸出連接，電源來自：
可編程邏輯控制器31 32
單通道控制卡
05701-A-0301 4-20mA
05701-A-0302催化
配備模擬輸出模塊05701-A-0285
模擬輸出可配置為0-20mA或4-20mA輸出
模式。檢查隨系統提供的配置表，以：確定工廠配置的操作模式。操作模式
可以使用連接到工程的計算機輕松重新配置端口。有關更多信息，請聯系Zellweger Analytics或您的本地代理。
模擬輸出可以連接到電壓輸入設備
（例如：。圖表記錄器），包括與并將裝置輸入與電阻器并聯。即。
使用100歐姆電阻器，并在圖表上選擇2V的輸入范圍錄音機
繼電器/現場接口卡遠程輸入連接
注意安全將超過32V的電壓連接到遠程輸入可能對單通道控制卡造成永久性損壞。
有兩個遠程輸入，分別為RESET和INHIBIT
可配置為活動高或活動低操作模式。檢查隨系統提供的配置表，用于確定工廠
配置的操作模式?？梢灾匦屡渲貌僮髂Ｊ?br/>
輕松使用連接到工程端口的計算機。聯系Zellweger Analytics或您當?shù)氐拇砩塘私飧嘈畔ⅰ?/p>
遠程輸入引腳的開關電平（啟用時）為：
相對于直流系統0V大約+2V。輸入
需要小于5mA的驅動電流，無論配置如何內部下拉至系統0V。
活動高遠程輸入可能未連接或可以連接
通過常開觸點連接至+24V。遠程輸入將運行
每當觸點閉合時。
有源低電平遠程輸入可通過正常連接至+24V
閉合接觸。無論何時接觸，遠程輸入都將工作
打開。不要讓低電平輸入處于未連接狀態。
The Analogue Output Module provides an isolated current loop output
that follows the sensor signal level. The output circuit is a passive
current control element that can be operated with loop voltages up to
40V. The recommended connections are shown below:
Analogue Output +
0V
+24V
(10V to 40V)
Relay/Field Interface Card
05701-A-0326
05701-A-0327
05701-A-0328
05701-A-0329
Programmable
Logic
Controller
Isolated Analogue Output Connection with Power Sourced from
Programmable Logic Controller
31 32
Single Channel Control Card
05701-A-0301 4 - 20mA
05701-A-0302 Catalytic
Fitted with Analogue Output
Module 05701-A-0285
The analogue output can be configured for 0 - 20mA or 4 - 20mA output
modes. Check the configuration sheet supplied with the system to
determine the factory configured operating mode. The operating mode
can be reconfigured easily using a computer attached to the Engineering
Port. Contact Zellweger Analytics or your local agent for more information.
The analogue output can be connected to voltage input device (eg.
chart recorders) by including an external sense resistor in series with
the loop and connecting the device input in parallel with the resistor. ie.
Use a 100 ohm resistor and select an input range of 2V on the chart
recorder.
Relay/Field Interface Card
REMOTE INPUT CONNECTIONS
CAUTION
Connecting voltages in excess of 32V to the remote inputs may
cause permanent damage to the Single Channel Control Card.
There are two remote inputs, RESET and INHIBIT, which are individually
configurable for active high or active low operating modes. Check the
configuration sheet supplied with the system to determine the factory
configured operating modes. The operating mode can be reconfigured
easily using a computer attached to the Engineering Port. Contact
Zellweger Analytics or your local agent for more information.
The switching level of the remote input pins (when enabled) is
approximately +2V with respect to the dc system 0V. The inputs
require less than 5mA drive current and irrespective of configuration
are internally pulled down to system 0V.
Active high remote inputs may be left unconnected or can be connected
to +24V via a normally open contact. The remote input will operate
whenever the contact closes.
Active low remote inputs may be connected to +24V via a normally
closed contact. The remote input will operate whenever the contact
opens. Do not leave active low inputs unconnected.
