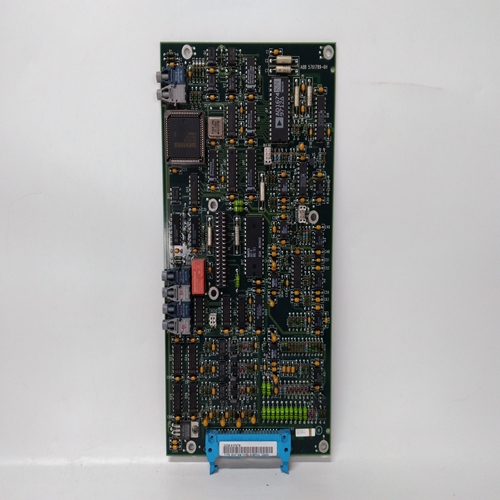

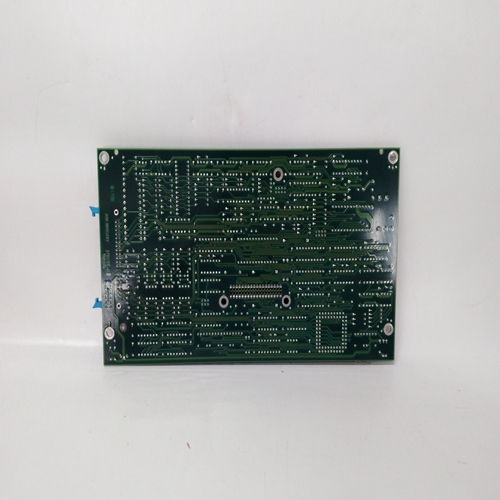

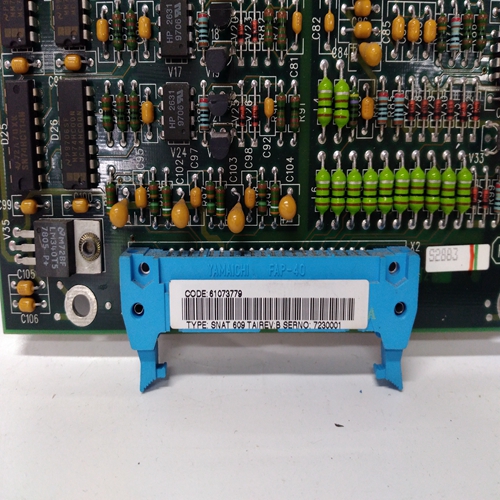

SNAT609TAI驅動卡件
工作溫度范圍是稱重傳感器可以在其中工作的溫度范圍
特定精度。最大允許溫度漂移（即零點和靈敏度漂移）不一定在整個工作溫度范圍內保持。
儲存溫度范圍存儲溫度范圍是稱重傳感器可存儲的溫度范圍。
零點隨溫度漂移
零點漂移定義為信號隨溫度的變化，與靈敏度相關，當
稱重傳感器上沒有負載。
靈敏度隨溫度的漂移
靈敏度漂移定義為標稱負載下與靈敏度相關的信號隨溫度的變化，不包括零點漂移。
#回憶
#eflection是當載荷為從零增加到標稱值傳感器的測量原理
傳感器的測量原理基于Pressductor?技術和以下事實：磁性材料的磁導率在機械應力下變化。
傳感器由一堆經過特殊處理的層壓板組成，構成測量體。初級和次級繞組通過傳感器中的四個孔纏繞，以便它們在直角。
初級繞組被提供交流電流，從而在其周圍形成磁場
初級繞組。由于兩個繞組相互成直角，只要傳感器上沒有負載，次級繞組周圍就不會有磁場。
當傳感器在測量方向上受到機械力時，磁場的傳播發生變化，從而包圍次級繞組，在該繞組中感應交流電壓。
控制單元將該交流電壓轉換為與施加的電壓成比例的直流電壓
武力如果測量力改變方向，傳感器信號也會改變極性
安裝布置
選擇安裝布置時，務必記住將稱重傳感器放置在
提供足夠測量力（FR）以實現最高可能精度的方向。
稱重傳感器沒有特定的正確方向；它位于最適合以下情況的方向：
應用時，應牢記螺孔的位置。也可以安裝稱重傳感器
其中輥懸掛在稱重傳感器下方。
Working temperature range
Working temperature range is the temperature range within which the load cell can operate within
a specified accuracy. The maximum permitted temperature drifts (i.e. zero point and sensitivity
drifts) of the load cell are not necessarily maintained in the whole working temperature range.
Storage temperature range
Storage temperature range is the temperature range within which the load cell can be stored.
Zero point drift with temperature
Zero point drift is defined as the signal change with temperature, related to the sensitivity, when
there is zero load on the load cell.
Sensitivity drift with temperature
Sensitivity drift is defined as the signal change with temperature at nominal load, related to the sensitivity, excluding the zero point drift.
#eflection
#eflection is the total deformation in the measuring direction of the load cell when the load is
increased from zero to the nominal value
Measuring principle of the sensor
The measuring principle of the sensor is based on the Pressductor? technology and the fact that
the permeability of a magnetic material changes under mechanical stress.
The transducer is made up of a stack of specially treated laminates, forming the measuring body.
Primary and secondary windings are wound through four holes in the sensor so that they cross at
right angles.
The primary winding is supplied with an alternating current which creates a magnetic fieKd around
the primary winding. Since the two windings are at right angles to each other, there will be no magnetic fieKd around the secondary winding, as long as there is no load on the sensor.
When the sensor is subjected to a mechanical force in the direction of measurement, the propagation of the magnetic fieKd changes so that it surrounds the secondary winding, inducing an alternating voltage in that winding.
The control unit converts this alternating voltage into a DC voltage proportional to the applied
force. If the measurement force changes direction, the sensor signal changes also polarity
Mounting Arrangement
When choosing a mounting arrangement it is important to remember to position the load cell in a
direction that gives sufficient measuring force (FR) to achieve the highest possible accuracy.
The load cell has no particular correct orientation; it is positioned in the orientation best suited for
the application, bearing in mind the positions of the screw holes. The load cell can also be installed
with the roll suspended under the load cell.
