可編程增益跳線配置增益放大器可配置為1、10、100、200和500以處理低至±10 mV的信號電平。表5.4.7-1顯示了哪個跳線將安裝。該電路板在工廠配置為增益“一”（無跳線）已安裝）。5.5校準出廠前，VMIVME-3112板已完全校準并符合第2節中列出的所有規范。應該然而，需要重新校準，執行第5.5.2節和5.5.3使用第5.5.1節中列出的設備。所有調整的位置和測試點如圖5.4-1所示。出廠時，所有校準調整均密封防止意外移動。密封件很容易被打破以進行重新校準，然而所有調整均應使用合適的密封件重新密封完成重新校準后的化合物。

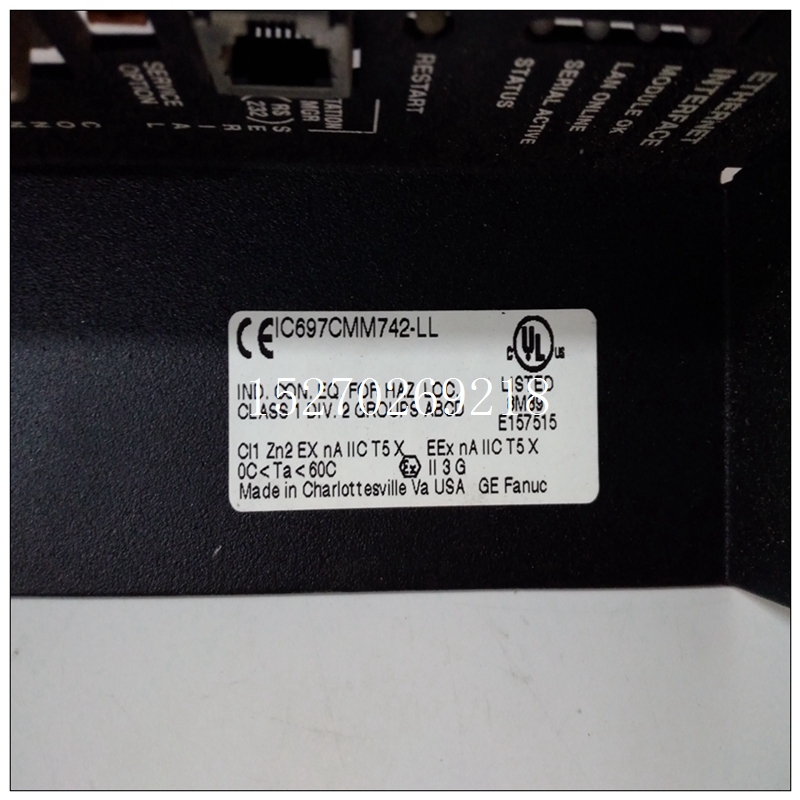

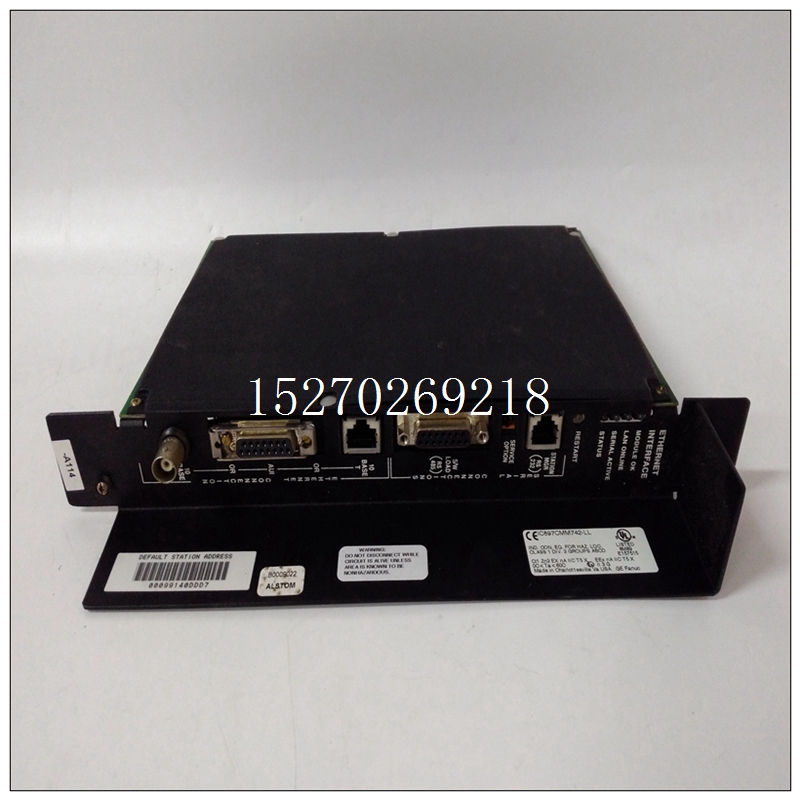

IC697CMM742-LL使用指導所需設備
a、 數字電壓表（DVM）?！?.0000 VDC和±10.000 VDC范圍；5.或更多數字；讀數電壓測量值的±0.005%精確10米? 最小輸入阻抗。b、 模擬電壓源?！?0.000 VDC范圍；分辨率0.0005
VDC；精度，預期值的±0.005%；0.10? 最大限度輸出阻抗。c、 底盤。VMEbus背板或等效物，J1和J2連接器，VMEbus主控制器，+5±0.1 VDC，電源。一個插槽分配用于測試VMIVME-3112板。d、 延長板。VMEbus擴展板。e、 測試電纜。測試上述設備的電纜。5.5.2模擬輸入校準程序校準包括將轉換器的最大負輸出調整為其理想值（偏移調整），然后將最大正輸出調整為其理想值值（增益調整）。在更換時必須執行校準A/D的輸入滿標度范圍從一個值到另一個值（例如，從±10 V到±5 V）。程序如下：a、 將VMIVME-3112板安裝在VMEbus的擴展板上背板。b、 將模擬輸入配置為所需的電壓范圍（即±10 V，±5 V，0至+10 V）。c、 給背板通電。允許最小預熱間隔為通電后10分鐘后繼續。d、 將模擬電壓源連接在連接器引腳之間的CH0處P3-A1（+）和P3-C1（-）。e、 調整模擬電壓源以進行最負校準所選滿標度范圍的值。見表5.5.2-1。f、 讀取CH0時，調整R4的單極范圍或R8的雙極范圍角。CH0地址為XXXX0080。繼續調整電位計，直到讀取的值在000 HEX和001之間閃爍十六進制。
g、 調整模擬電壓源以進行最正向校準所選滿標度范圍的值。見表5.5.2-1。h、 讀取CH0時，調整R9，直到讀取的值在FFE和FFF六角。i、 校準現已完成。拆除所有測試連接，以及將電路板恢復到其原始配置。
Programmable Gain Jumper Configuration
The Gain Amplifier may be configured for gains of 1, 10, 100, 200, and
500 to handle signal levels as low as ±10 mV. Table 5.4.7-1 shows which jumper
is to be installed. The board is factory configured for a gain of "one" (no jumper
installed).
5.5 CALIBRATION
Before delivery from the factory, the VMIVME-3112 Board is fully
calibrated and conforms to all specifications listed in Section 2. Should
recalibration be required, however, perform the procedures in Sections 5.5.2 and
5.5.3 with the equipment listed in Section 5.5.1. The locations of all adjustments and
test points are shown in Figure 5.4-1.
As delivered from the factory, all calibration adjustments are sealed
against accidental movement. The seals are easily broken for recalibration,
however. All adjustments should be resealed with a suitable fact curing sealing
compound after recalibration has been completed. Equipment Required
a. Digital Voltmeter (DVM). ±1.0000 VDC and ±10.000 VDC ranges; 5
or more digits; ±0.005 percent of reading voltage measurement
accuracy; 10 M? minimum input impedance.
b. Analog Voltage Source. ±10.000 VDC Range; resolution 0.0005
VDC; Accuracy, ±0.005 percent of expected value; 0.10 ? maximum
output impedance.
c. Chassis. VMEbus backplane or equivalent, J1 and J2 connectors,
VMEbus master controller, +5 ±0.1 VDC, power supply. One slot
allocated for testing the VMIVME-3112 Board.
d. Extender Board. VMEbus extender board.
e. Test Cables. Test cables for the equipment listed above.
5.5.2 Analog Inputs Calibration Procedure
Calibration consists of adjusting the converter's most negative output to
its ideal value (offset adjustment), next adjusting the most positive output to its ideal
value (Gain Adjustment). The calibration must be performed when changing the
A/D's input full scale range from one value to another (for example, from ±10 V to
±5 V). The procedure is as follows:
a. Install the VMIVME-3112 Board on an extender board in a VMEbus
backplane.
b. Configure the analog inputs to the desired voltage range (i.e. ±10 V,
±5 V, 0 to +10 V). c. Apply power to the backplane. Allow a minimum warm up interval of
ten minutes after power has been applied before proceeding.
d. Connect the analog voltage source at CH0, between connector pins
P3-A1 (+) and P3-C1 (-).
e. Adjust the analog voltage source for the most negative calibration
value of the full scale range selected. Refer to Table 5.5.2-1.
f. While reading CH0 adjust R4 for unipolar ranges or R8 for bipolar
angles. CH0 address is XXXX0080. Continue adjusting the
potentiometer until the value read flickers between 000 HEX and 001
HEX.
g. Adjust the analog voltage source for the most positive calibration
value of the full scale range selected. Refer to Table 5.5.2-1.
h. While reading CH0 adjust R9 until the value read flickers between
FFE and FFF HEX.
i. Calibration is now complete. Remove all test connections, and
restore the board to its original configuration.
